Orion Cobalt CO104S User Manual

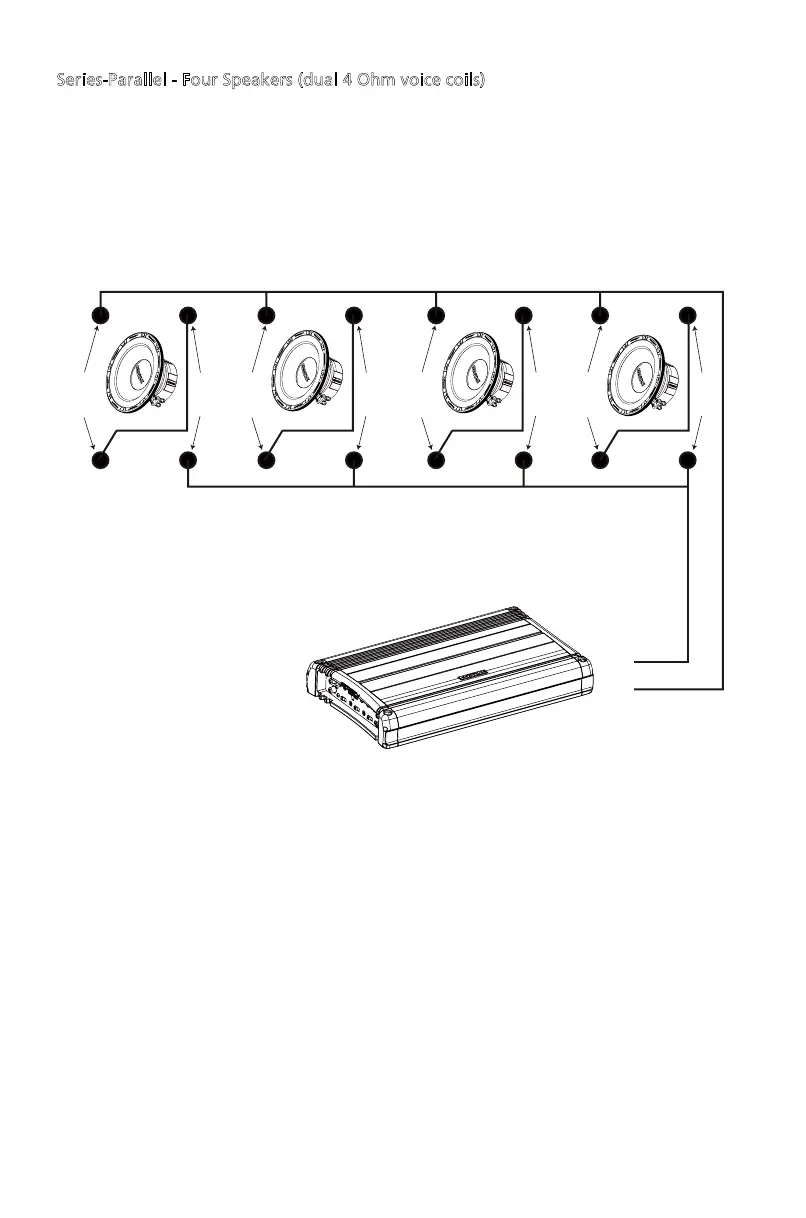

S
eries-Parallel - Four Speakers (dual 4 Ohm voice coils)
Note: Verify and ensure that the woofer wiring is connected as shown with the
negative connection from the first woofer coil connected to the positive connection
of the second woofer coil.
Four dual 4 ohm voice coil woofers should be wired with the voice coils on each
woofer in series and then parallel the four woofers for a resulting a 2 ohm load to the
amplifier.
1. Connect each woofer in series by connecting the negative (-) terminal of the first
coil to the positive (+) terminal of the second coil.
2. Wire the positive (+) terminal of each woofer's first coil to the positive (+) terminal
on the amplifier. Wire the negative (-) terminal of each woofer's second coil to the
negative (-) terminal on the amplifier.
Figure 9
Figura 9
Abbildung 9
4 ohm 4 ohm 4 ohm 4 ohm 4 ohm 4 ohm 4 ohm 4 ohm
+
-
+
+
- -
+
+
- -
+
+
- -
+
+
- -
