Orion Cobalt CO104S User Manual

ENCLOSURE RECOMMENDATIONS
Enclosure Details
1. External dimensions calculated for 3/4” building material
2. Includes speaker displacement
3. Volumes given are net tuning volume
4. Enclosures include a minimal amount of damping material. Just enough material to
line the inside of the enclosure is required.
Cobalt CO104S/CO104D Sealed Enclosure Recommendations
External Dimensions
A = 14 in
B = 12.5 in
C = 11.5 in
Internal Dimensions
A = 12.5 in
B = 11 in
C = 10 in
Wall Thickness
Front = 0.75 in
Side = 0.75 in
—Box Parts—
Box Shape: Square Prism
Top, 1 Bottom:
depth (c) = 11.5 in
width (b) = 12.5,
thickness = 0.75 in
1 Front, 1 Back:
height (a) = 12.5 in
width (d) = 11,
thickness = 0.75 in
2 Sides:
height (a) = 12.5 in
depth (c) = 11.5,
thickness = 0.75 in
—Driver
Mounting—
Front
c
b
Top &
Bottom
a
d
Front &
Back
c
Sides
A
B
C

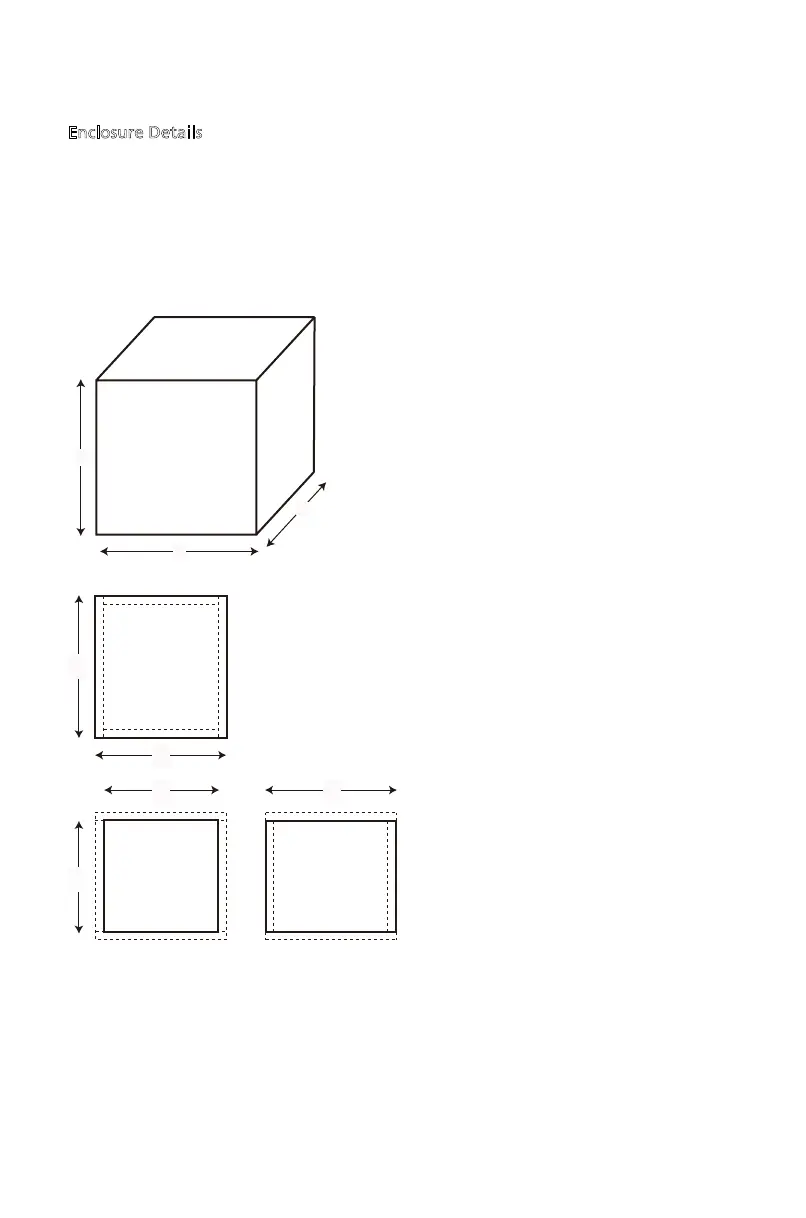

Figure 10
Figura 10
Abbildung 10
