Orion Cobalt CO104S User Manual

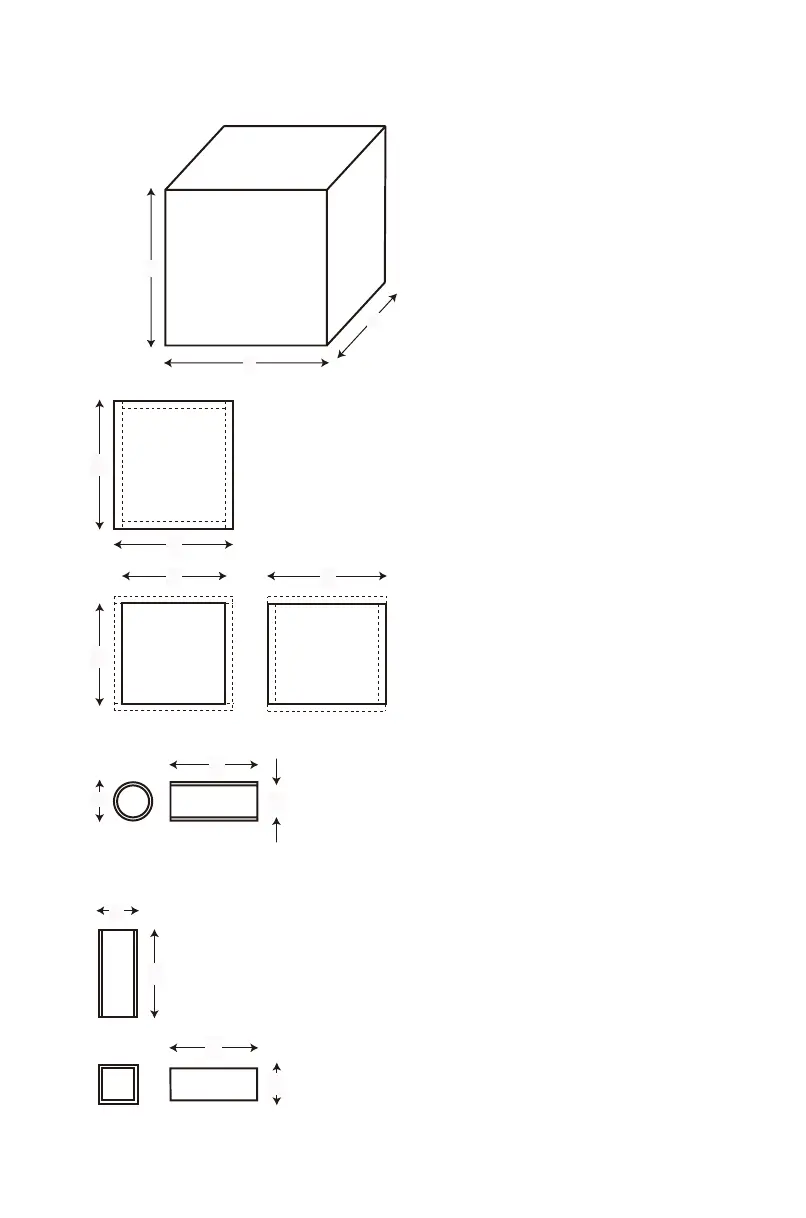

Cobalt CO104S/CO104D Vented Enclosure Recommendations
External Dimensions
A = 15.75 in
B = 14.25 in
C = 12 in
Internal Dimensions
A = 14.25 in
B = 12.75 in
C = 10.5 in
Wall Thickness
Front = 0.75 in
Side = 0.75 in
—Box Parts—
Box Shape: Square Prism
Top, 1 Bottom:
depth (c) = 12 in
width (b) = 14.25,
thickness = 0.75 in
1 Front, 1 Back:
height (a) = 14.25in
width (d) = 12.75,
thickness = 0.75 in
2 Sides:
height (a) = 14.25 in
depth (c) = 12,
Sides thickness = 0.75 in
—Driver Mounting—
Front
Vent Parts --- Round
1 Duct:
outside diameter (e) = 3.2 in
inside diameter (g) = 3 in
length (h) = 9.5 in
Vent Parts --- Square
1 Top, 1 Bottom:
width (e) = 3,
length (h) = 10 in
thickness = 0.125
in
2 Sides:
height (g) = 2.75,
length (h) = 10 in
thickness = 0.125 in
c
b
Top &
Bottom
a
e
d
Front &
Back
c
Sides
h
h
VENT Round
- OR -
VENT Square
e
h
g
g
A
B
C
Figure 11
Figura 11
Abbildung 11
