Cobalt CO124S/CO124D Sealed Enclosure Recommendations
External Dimensions
A = 15.5in
B = 14.75 in
C = 12 in
Internal Dimensions
A = 14 in
B = 13.25 in
C = 10.5 in
Wall Thickness
Front = 0.75 in
Side = 0.75 in
—Box Parts—
Box Shape: Square Prism
Top, 1 Bottom:
depth (c) = 12 in
width (b) = 14.75,
thickness = 0.75 in
1 Front, 1 Back:
height (a) = 14 in
width (d) = 13.25,
thickness = 0.75 in
2 Sides:
height (a) = 14 in
depth (c) = 12,
thickness = 0.75 in
Driver Mounting
Mounting: Front
c
b
Top &
Bottom
a
d
Front &
Back
c
Sides
A
B
C

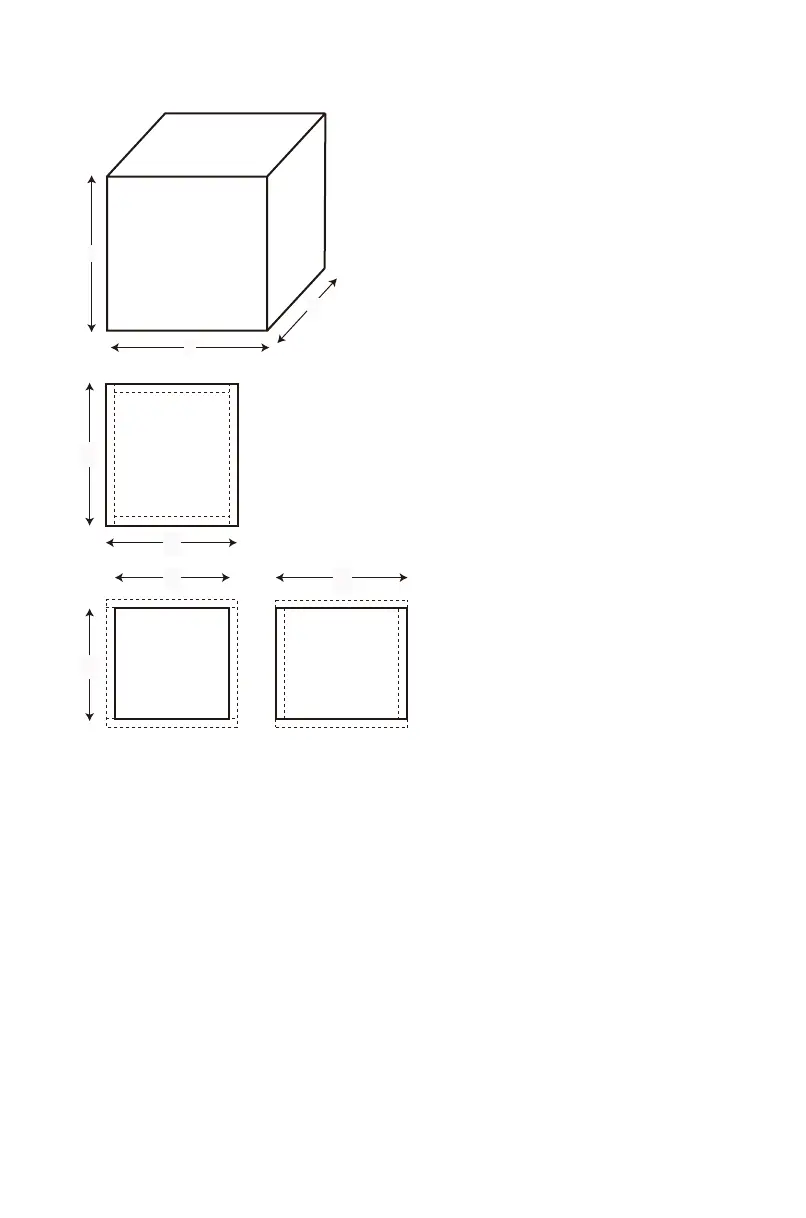

Figure 12
Figura 12
Abbildung 12
