Cobalt CO124S/CO124D Vented Enclosure Recommendations
External Dimensions
A = 18 in
B = 16.75 in
C = 13 in
Internal Dimensions
A = 16.5 in
B = 15.25 in
C = 11.5 in
Wall Thickness
Front = 0.75 in
Side = 0.75 in

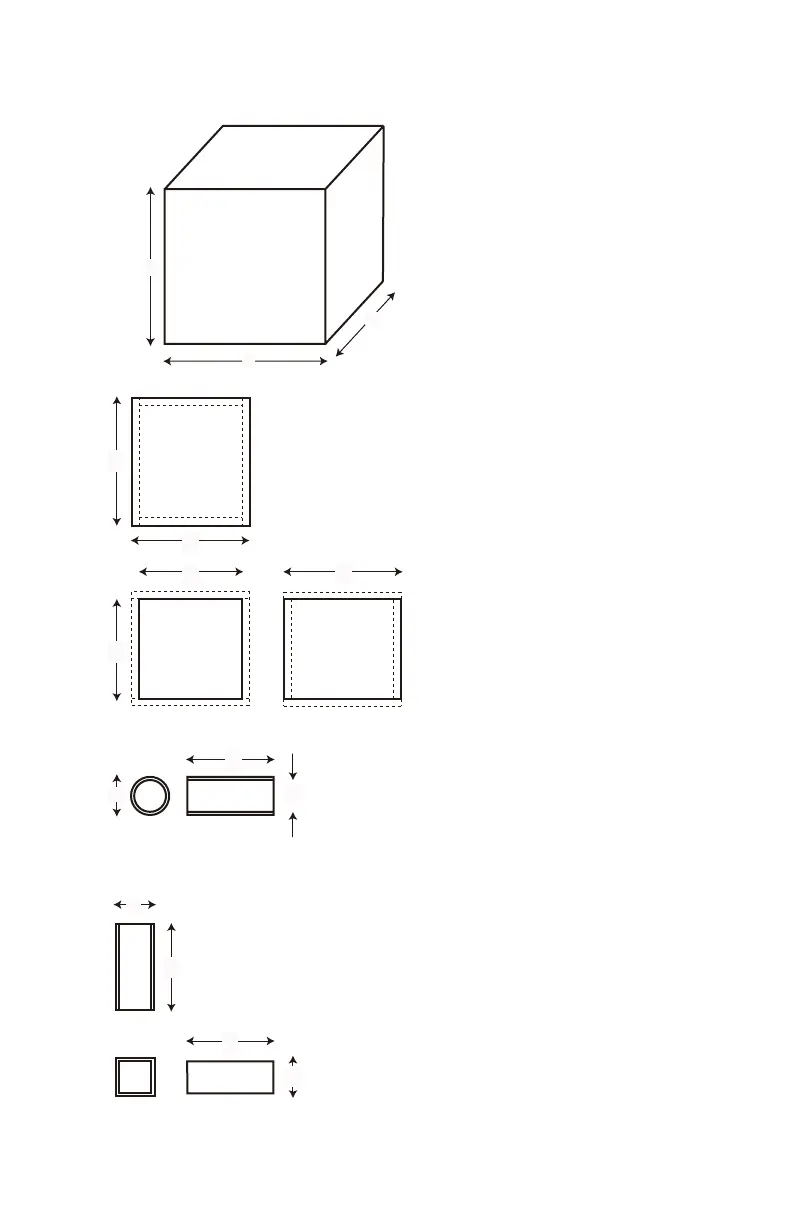

—Box Parts—
Box Shape: Square Prism
Top, 1 Bottom:
depth (c) = 11.5 in
width (b) = 12.5,
thickness = 0.75 in
1 Front, 1 Back:
height (a) = 12.5 in
width (d) = 11,
thickness = 0.75 in
2 Sides:
height (a) = 12.5 in
depth (c) = 11.5,
thickness = 0.75 in
Driver Mounting
Mounting: Front
Vent Parts --- Round
1 Duct:
outside diameter (e) = 4.25 in
inside diameter (g) = 4 in
length (h) = 10 in
Vent Parts --- Square
1 Top, 1 Bottom:
width (e) = 3.75,
length (h) = 10 in
thickness = 0.125 in
2 Sides:
height (g) = 3.5,
length (h) = 10 in
thickness = 0.125 in
c
b
Top &
Bottom
a
e
d
Front &
Back
c
Sides
h
h
VENT Round
- OR -
VENT Square
e
h
g
g
A
B
C
Figure 13
Figura 13
Abbildung 13
