Cobalt CO154S/CO154D Vented Enclosure Recommendations
External Dimensions
A = 25 in
B = 17.5 in
C = 13 in
Internal Dimensions
A = 23.5 in
B = 16 in
C = 11.5 in
Wall Thickness
Front = 0.75 in
Side = 0.75 in
—Box Parts—
Box Shape: Square Prism
Top, 1 Bottom:
depth (c) = 13 in
width (b) = 17.5,
thickness = 0.75 in
1 Front, 1 Back:
height (a) = 23.5 in
width (d) = 16,
thickness = 0.75 in
2 Sides:
height (a) = 23 in
depth (c) = 13,
Sides thickness = 0.75 in
Driver Mounting
Mounting: Front
Vent Parts --- Round
1 Duct:
outside diameter (e) = 4.25 in
inside diameter (g) = 4 in
length (h) = 7 in
Vent Parts --- Square
1 Top, 1 Bottom:
width (e) = 4.25,
length (h) = 10 in
thickness = 0.125 in
2 Sides:
height (g) = 4,
length (h) = 7 in
thickness = 0.125 in
c
b
Top &
Bottom
a
e
d
Front &
Back
c
Sides
h
h
VENT Round
- OR -
VENT Square
e
h
g
g
A
B
C

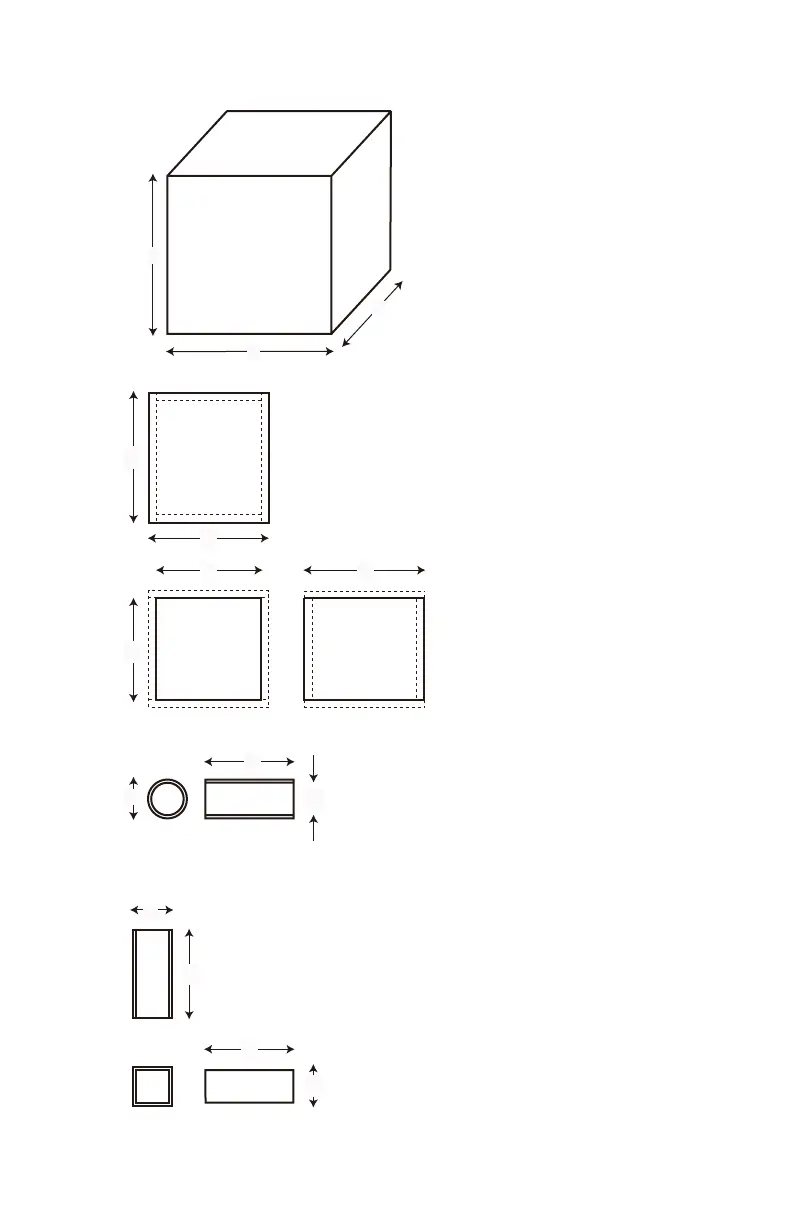

Figure 15
Figura 15
Abbildung 15
