O
ne Speaker (4 ohm voice coil)
One 4 ohm voice coil woofer results in a 4 ohm load to the amplifier
1. Connect the speaker by connecting the positive (+) terminal of the woofer to the
positive (+) terminal on the amplifier. Wire the negative (-) terminal of the woofer
to the negative (-) terminal on the amplifier.
+
+
4 ohm
_
_

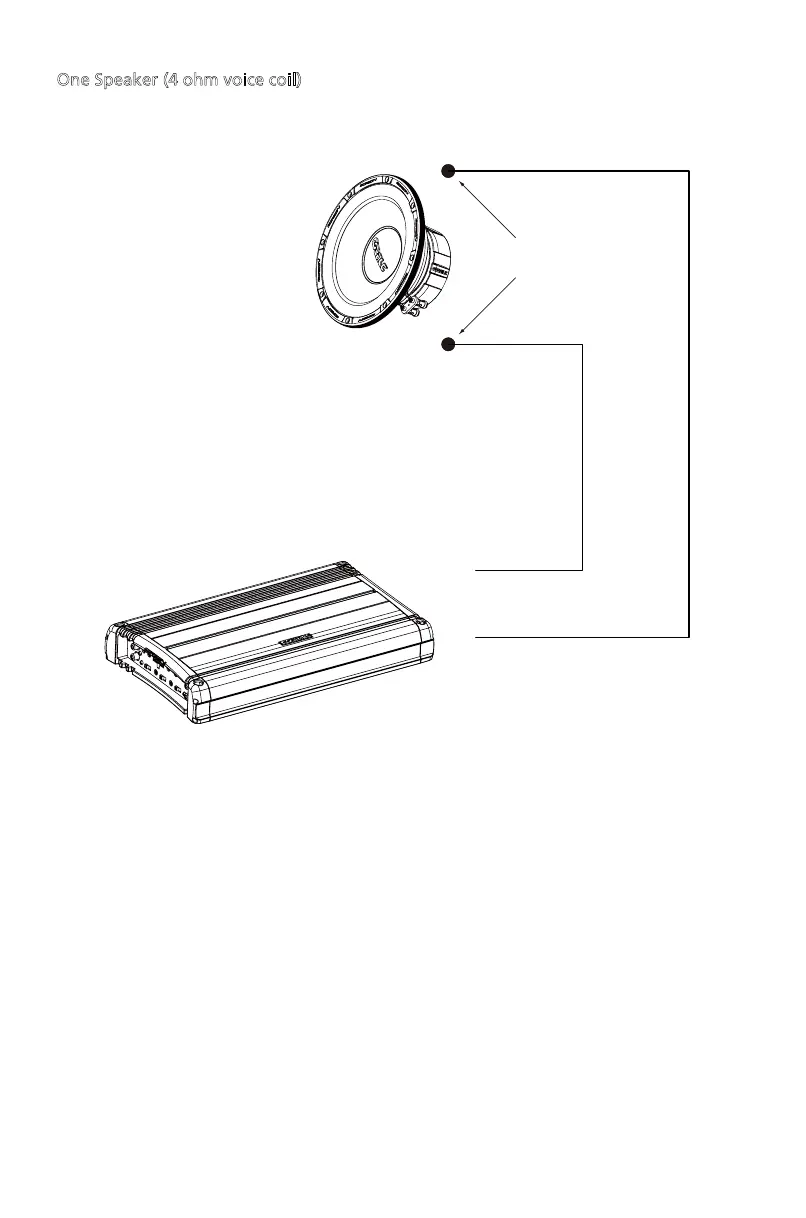

Figure 3
Figura 3
Abbildung 3
