S

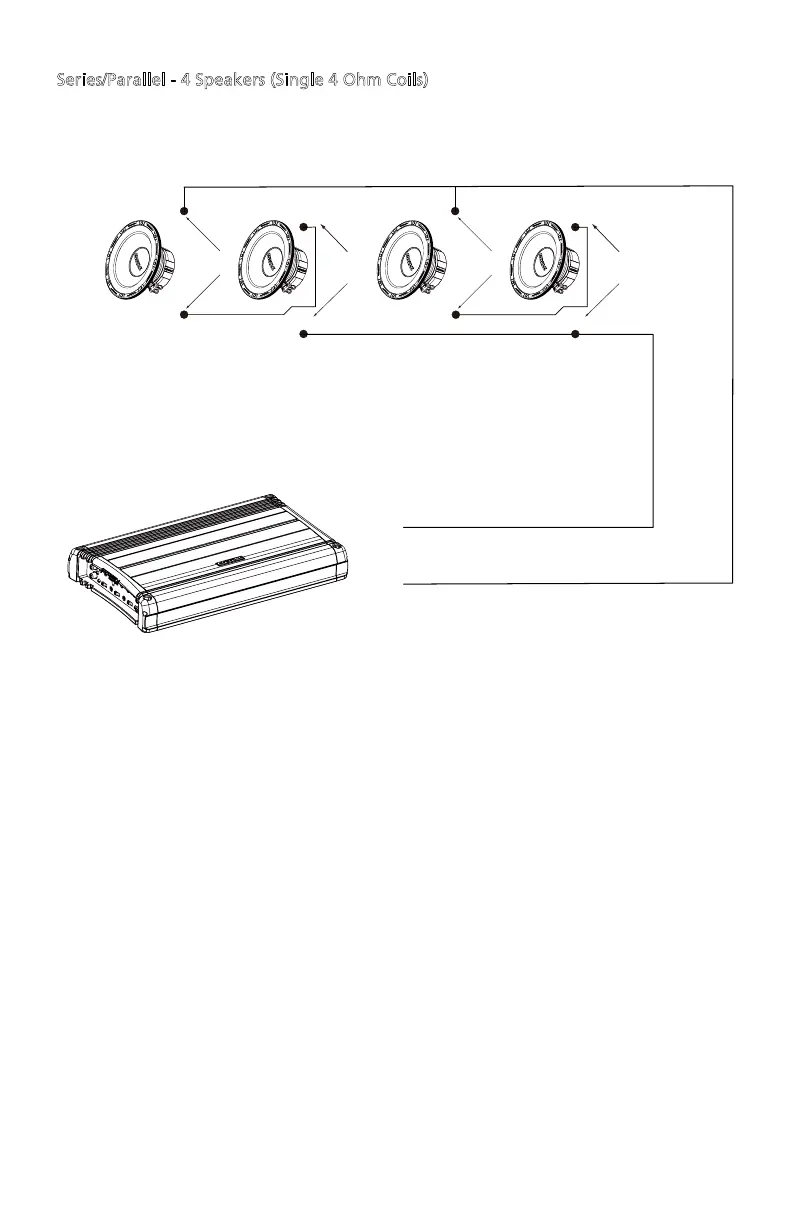

eries/Parallel - 4 Speakers (Single 4 Ohm Coils)
4 single 4 ohm voice coil subwoofers with the voice coils of each pair of speaker wired
in series and then all 4 speakers wired in parallel to result in a 4 ohm load on the
amplifier.
1. Connect the negative (-) terminal from speaker 1 to the negative terminal on
speaker 3 and then hook that wire to the negative (-) terminal on the amplifier.
2. Connect the positive (+) terminal from speaker 1 to the negative (-) terminal on
speaker 2
3. Connect the positive (+) terminal from speaker 3 to the negative (-) terminal on
speaker 4
4. Connect the positive (+) terminal from speaker 2 to the positive (+) terminal on
speaker 4 and then hook that wire to the positive (+) terminal on the amplifer.
+
+
+
4 ohm
_
_
_
4 ohm
+
+
4 ohm
_
4 ohm
_
1 2 3 4
Figure 5
Figura 5
Abbildung 5
