P
arallel - One Speaker (dual 4 ohm voice coils)
One dual 4 ohm voice coil woofer with voice coils in parallel results in a 2 ohm load
to the amplifier.
1. Connect the speaker in parallel by connecting the two positive (+) terminals
together and the two negative (-) terminals together.
2. Wire both positive (+) terminals of the woofer to the positive (+) terminal
on the amplifier. Wire both negative (-) terminals of the woofer to the
negative (-) terminal on the amplifier.
+
+
4 ohm
_
_

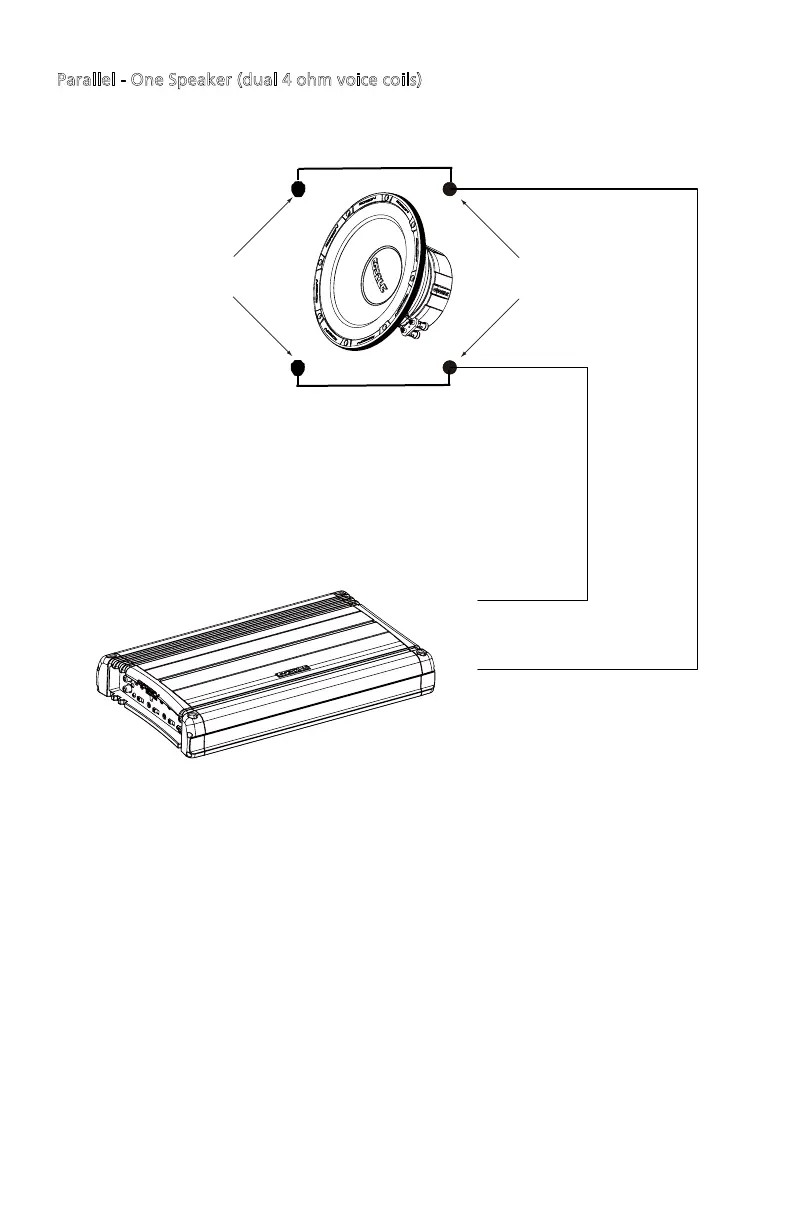

Figure 7
Figura 7
Abbildung 7
4 ohm
+
_
