Orion HCCA154 - Technical Specifications

+
-
2 ohm 2 ohm
Series

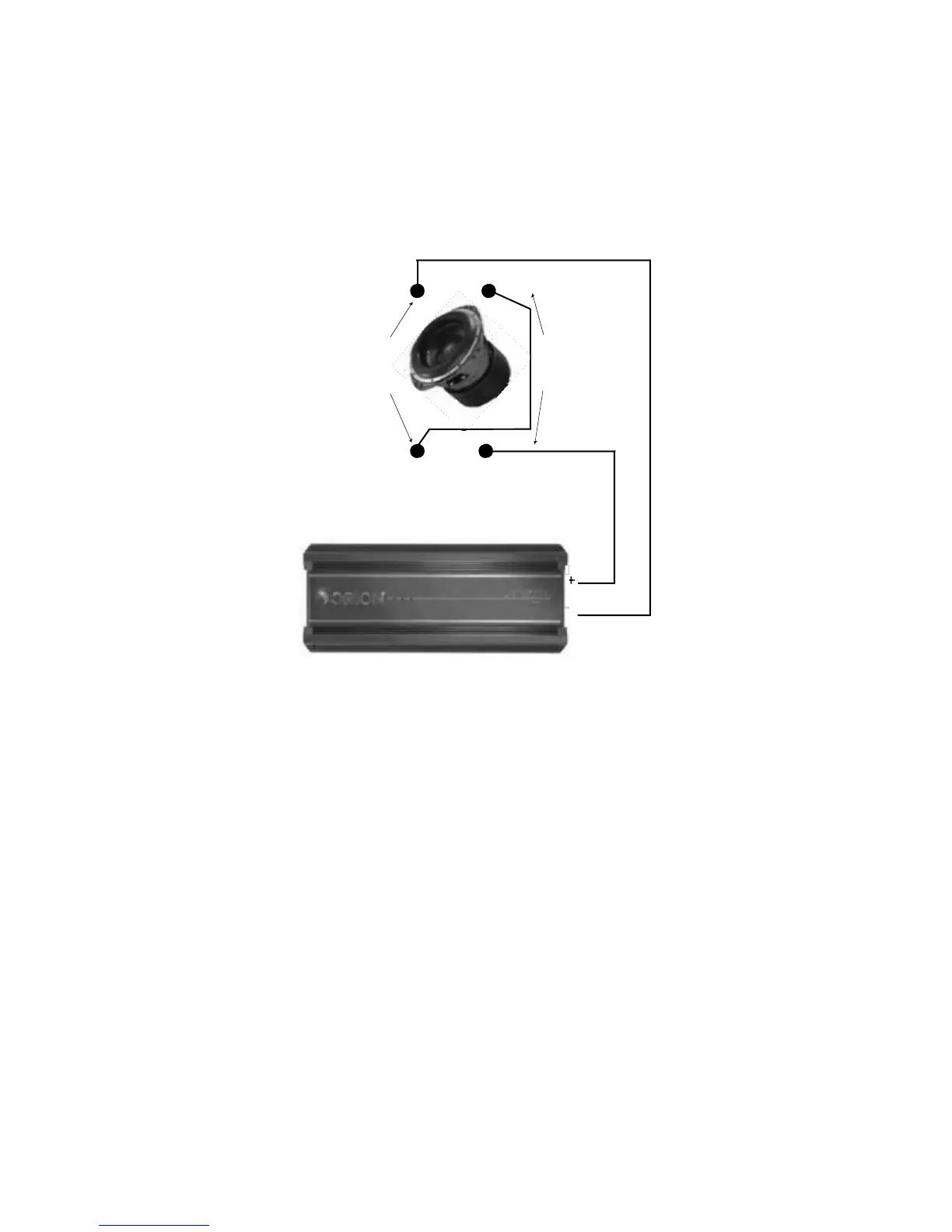

—One Speaker (dual 2 ohm voice coils)
One dual
2 ohm voice coil woofer with voice coils in connected in series results in a 4
ohm load to the amplifier.
- -
+ +
Figu
re 2
Figura 2
Abbildung 2
+
-
1. Connect the woofer in series by connecting the negative (-) of one terminal to the
positive (+) terminal of the other coil.
2. Wir
e the positive (+) terminal of the first coil to the positive (+) terminal on the
amplifier. Wire the negative (-) terminal of the second coil to the negative (-) terminal
on the amplifier.
