A master fuse (40 A) is located on the supply cable from the tractor/power pack.
A fuse for lights (15 A) is located in a rubber fuse holder, inside the electrical cabinet.
1. Terminal A og B (printed circuit board) 10A
2. Sensors 10A
3. Lubricaon system 5A
4. Free 5A (Spare)
5. Hydraulic control V1 - V16 15A
6. Hydraulic control V17 - V32 15A
7. Fan, oil cooler 25A
8. Free
9, 10 og 11. 10A, 15A og 20A (Spare)

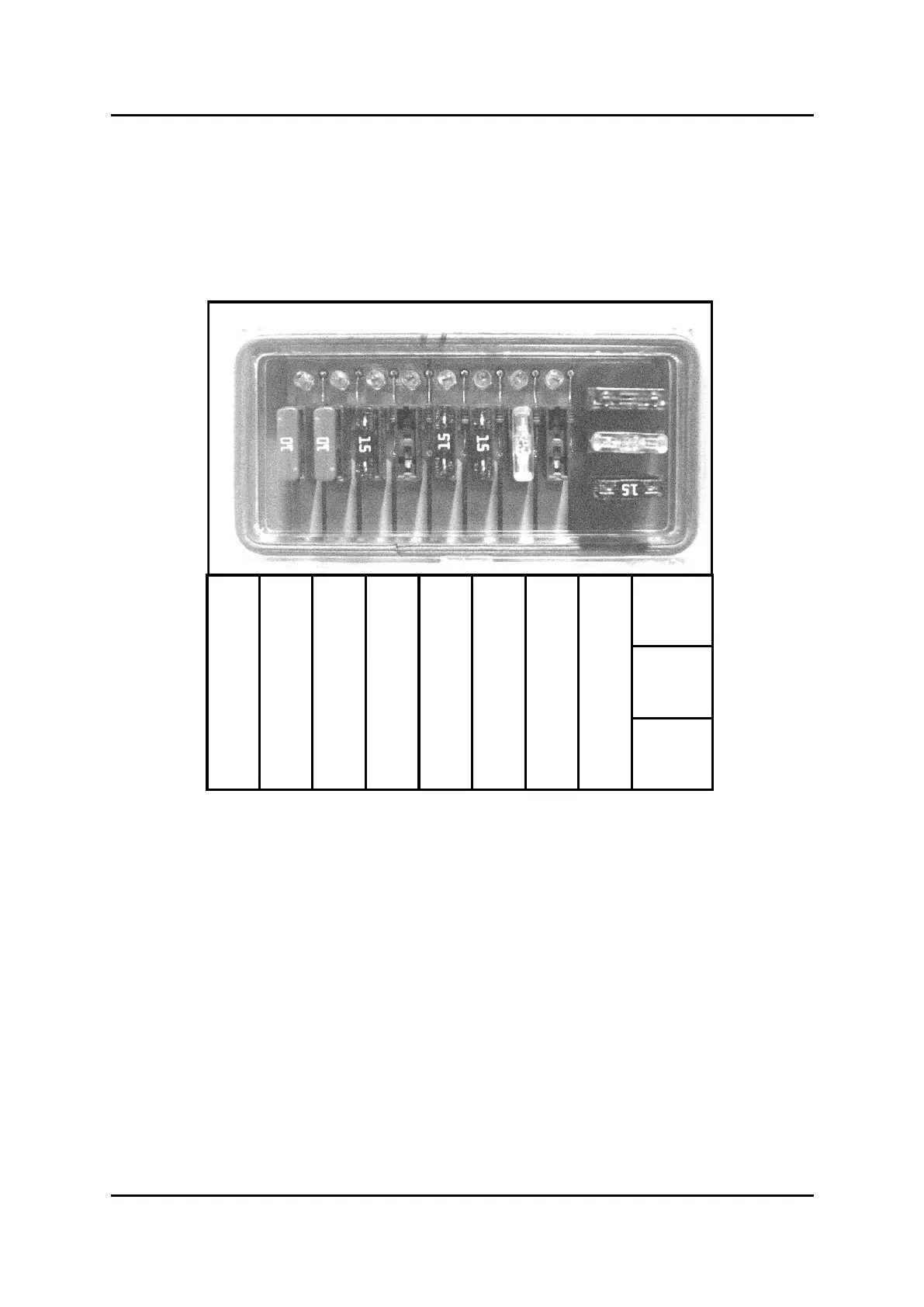

Fuse box, front electrical cabinet
