Ormazabal cgm.3-rc

IG-183-EN version 06; 31/03/2020
34
Installation General instructions
cgm.3 system: medium voltage SF
6
gas-insulated
cubicles up to 38 kV according to IEEE and CSA standards

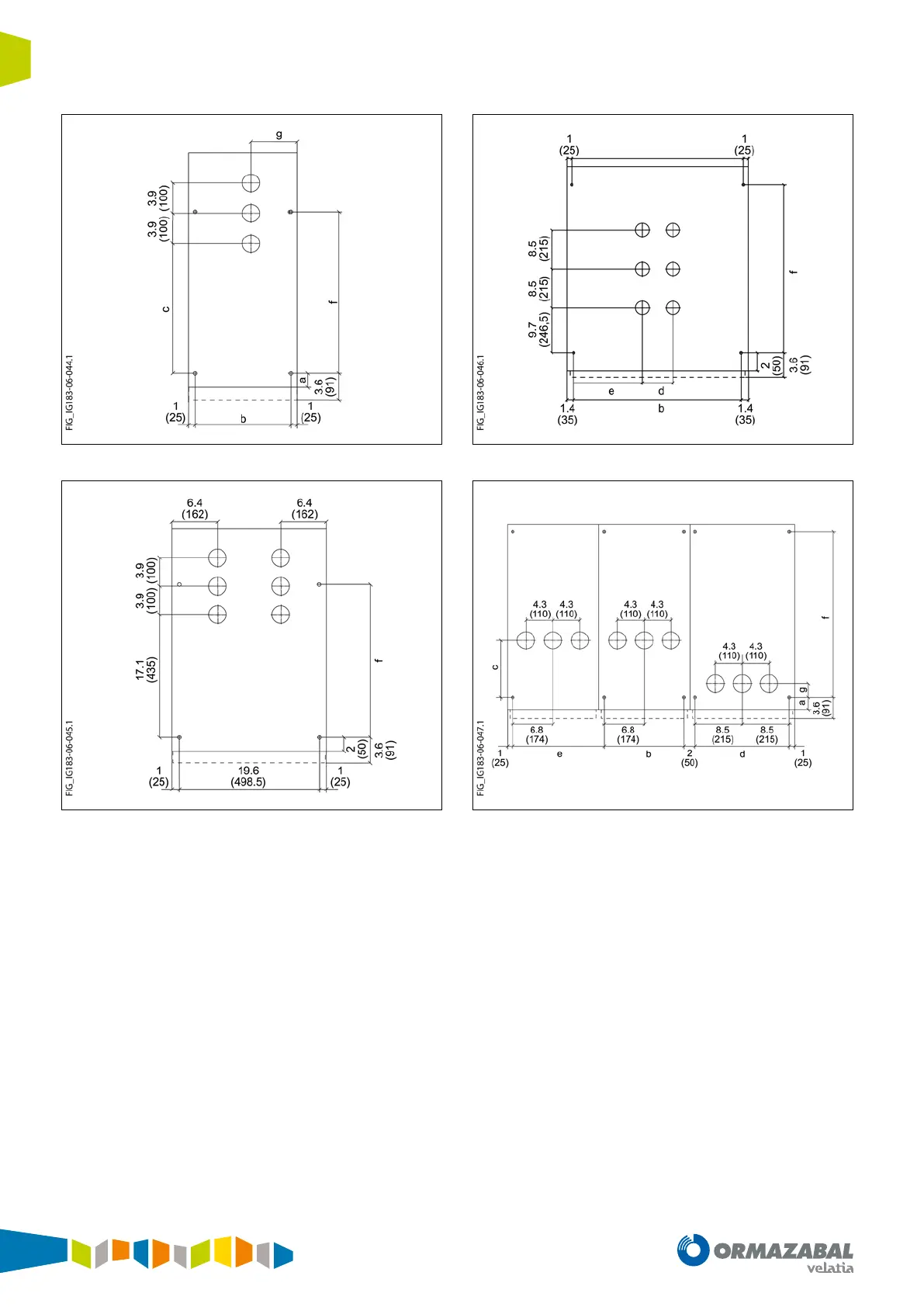

Figure 4.15. Anchoring points in cgm.3-rc cubicles
Figure 4.16. Anchoring points in cgm.3-rc cubicles
Figure 4.17. Anchoring diagram cgm.3-m
Figure 4.18. Anchoring diagram cgm.3-2lp 1745 mm high
