IG-183-EN version 06; 31/03/2020
35
General instructions
cgm.3 system: medium voltage SF
6
gas-insulated
cubicles up to 38 kV according to IEEE and CSA standards
Installation

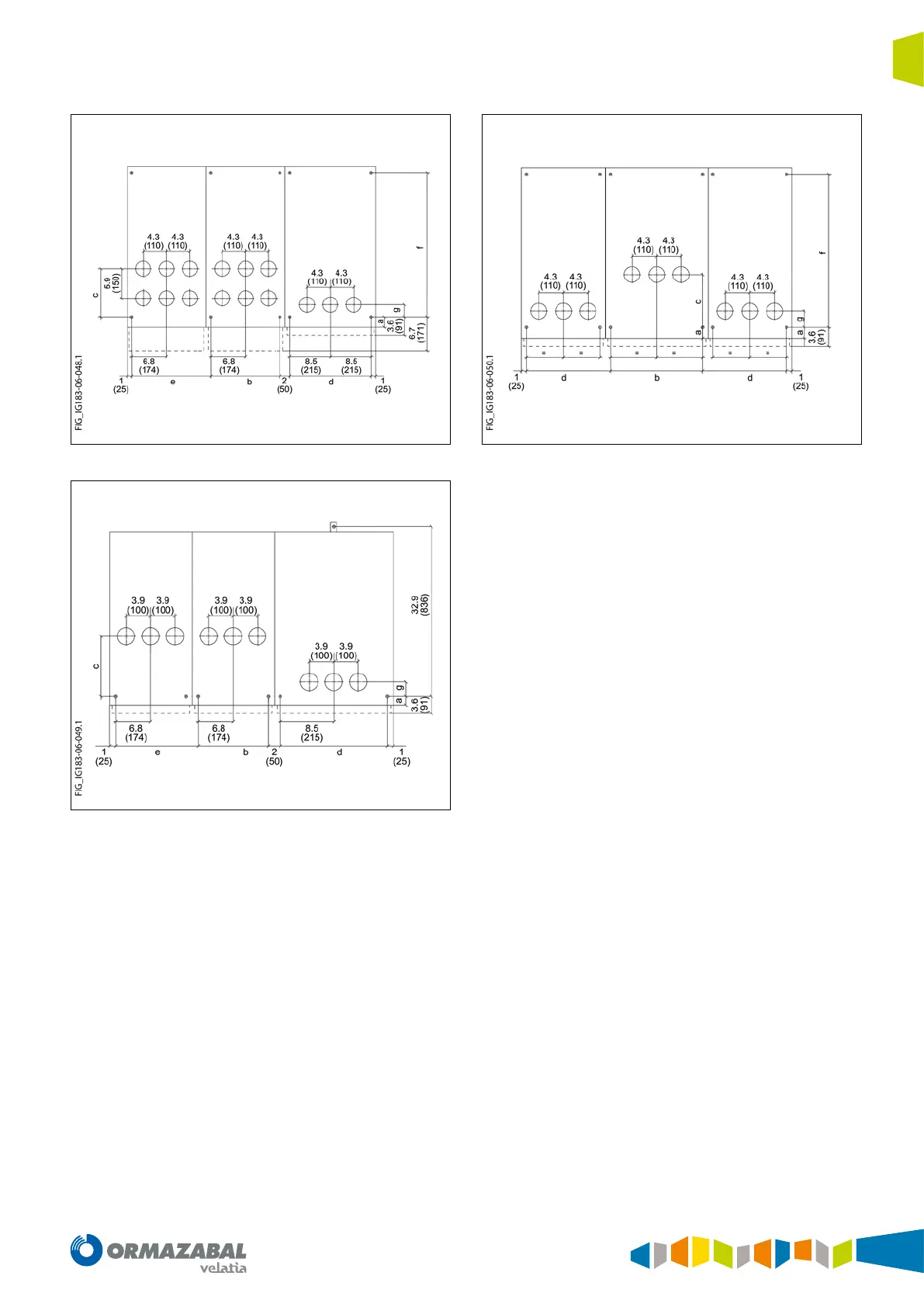

Figure 4.19. Anchoring diagram cgm.3-2lp double cable 1745 mm high
Figure 4.20. Anchoring diagram cgm.3-2lp 1400 mm high
Figure 4.21. Anchoring diagram cgm.3-2lv7-rlv
