GEM Series Coaxial HPGe Detector
Product Configuration Guide
10
N

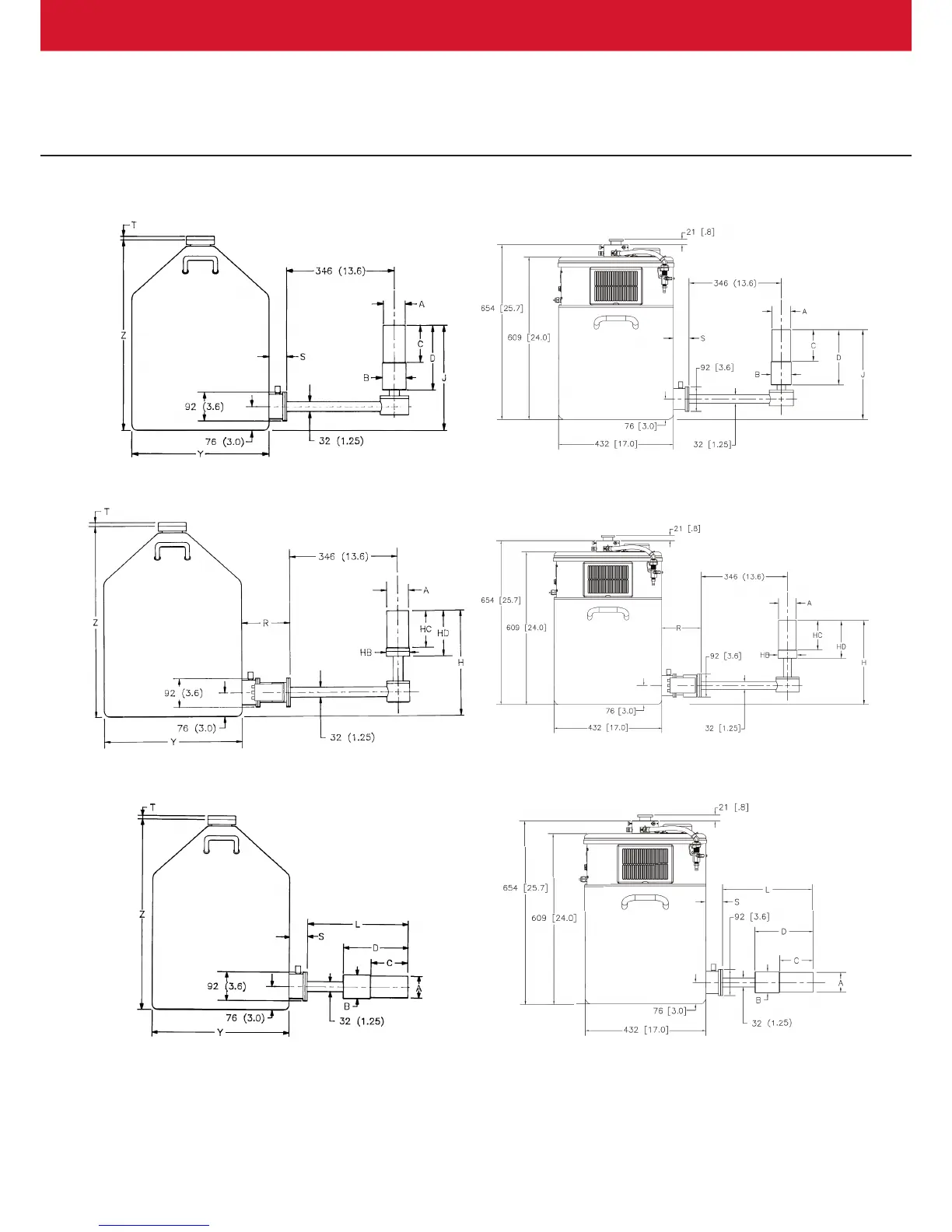

ote: Cryostat/Dewar drawings are NOT to scale, see tables that follow for complete dimensions.
Dimensions are for reference only and subject to change, if dimensional constraints are critical, contact the factory.
CFG-PS4-30 (or -13 or -7.5) or
CFG-SL, DWR-30B (or -13B or -7.5B)
CFG-SJ, DWR-30B (or -13B or -7.5B)
CFG-HJ, DWR-30B (or -13B or -7.5B)
CFG-PS4-MOBIUS-B or CFG-SL, MOBIUS-B
CFG-HJ, MOBIUS-B
CFG-SJ, MOBIUS-B
