GEM Series Coaxial HPGe Detector
Product Configuration Guide
9

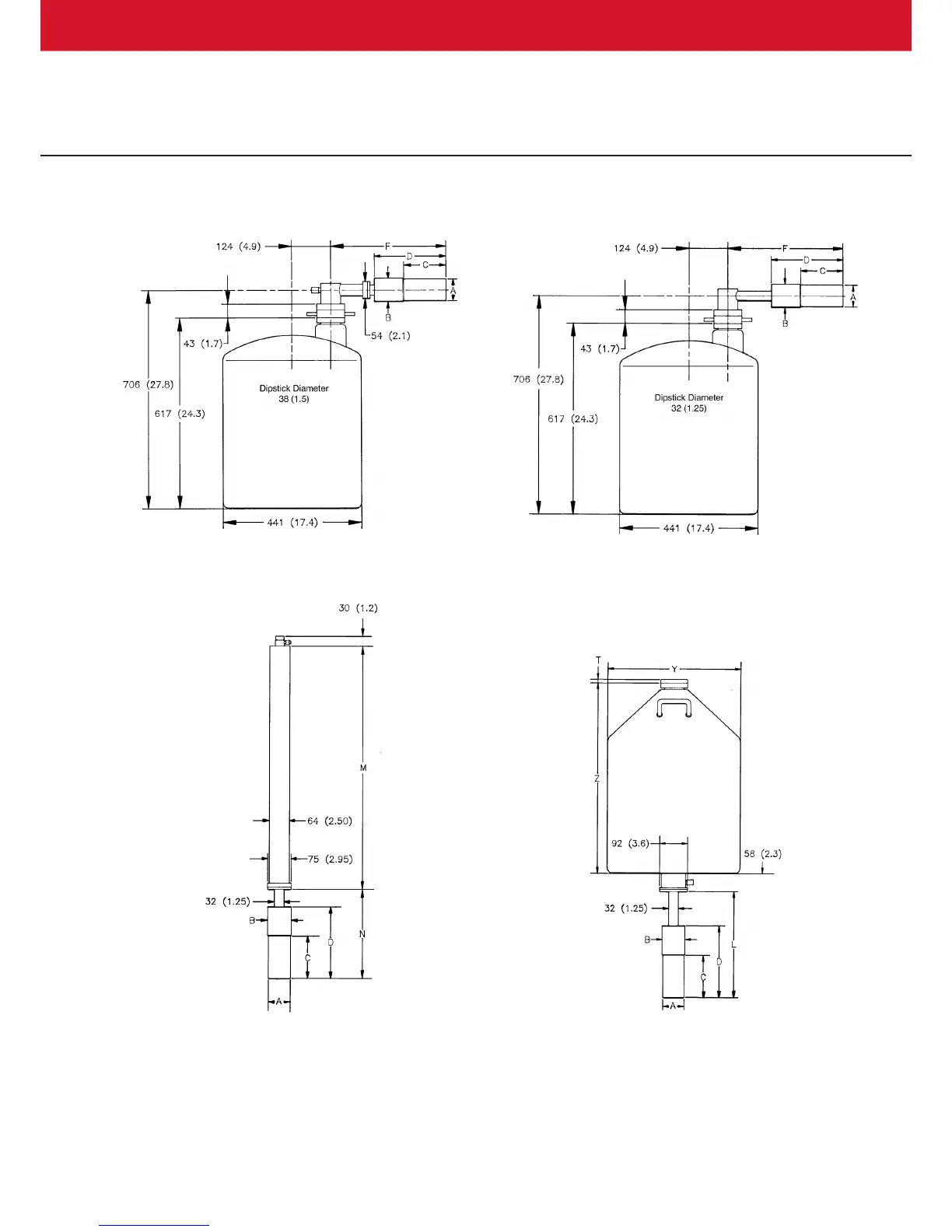

CFG-PSHP4 or
CFG-GG, DWR-0.7-SHP-1
Note: Cryostat/Dewar drawings are NOT to scale, see tables that follow for complete dimensions.
Dimensions are for reference only and subject to change, if dimensional constraints are critical, contact the factory.
CFG-SH, DWR-30-OPCFG-PH4, DWR-30-OP
CFG-PD4-30 (or -13 or -7.5) or
CFG-SD, DWR-30D (or -13D or -7.5D)
