5

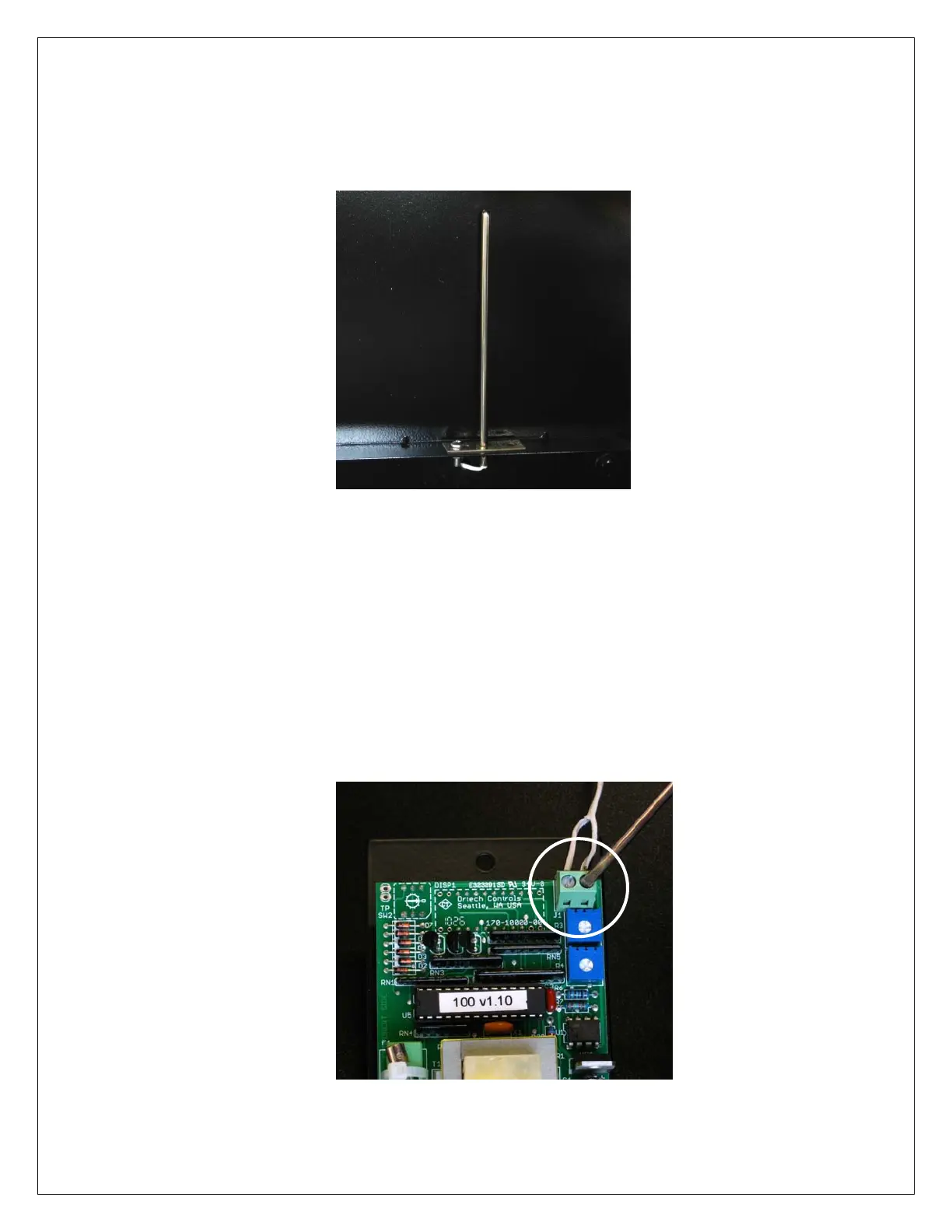

Attach the Detector Install the detector into the shaft hole with the slot
to the Rail positioned over the screw hole. Install the screw from
above, down through the slot and through the screw hole.
Install the nut from below and tighten.
Connect the WARNING: Disconnect the grill from AC power.
Temperature Connecting the temperature detector to the control
Detector while the grill is connected to AC power could result
to the Control in shock or could damage the control.
Turn the control until the circuit board is facing you. Using a
small slotted screwdriver, connect the temperature
detector lead wires to the two-terminal connector J1 located
in the upper right hand corner of the printed circuit board.
You can connect either lead wire to either terminal of
connector J1.
