step 14.

(Cc) x 4

small cam lock

(Dd) x 4

1 1/4”x 1/4”dia wood

dowel with ridges

(Hh) x 8

1 3/8”flat-head screw

(Bb) x 4

small cam bolt

(W) x 2

drawer pull

(X) x 4

3/4”round-head

screw

(li) glue

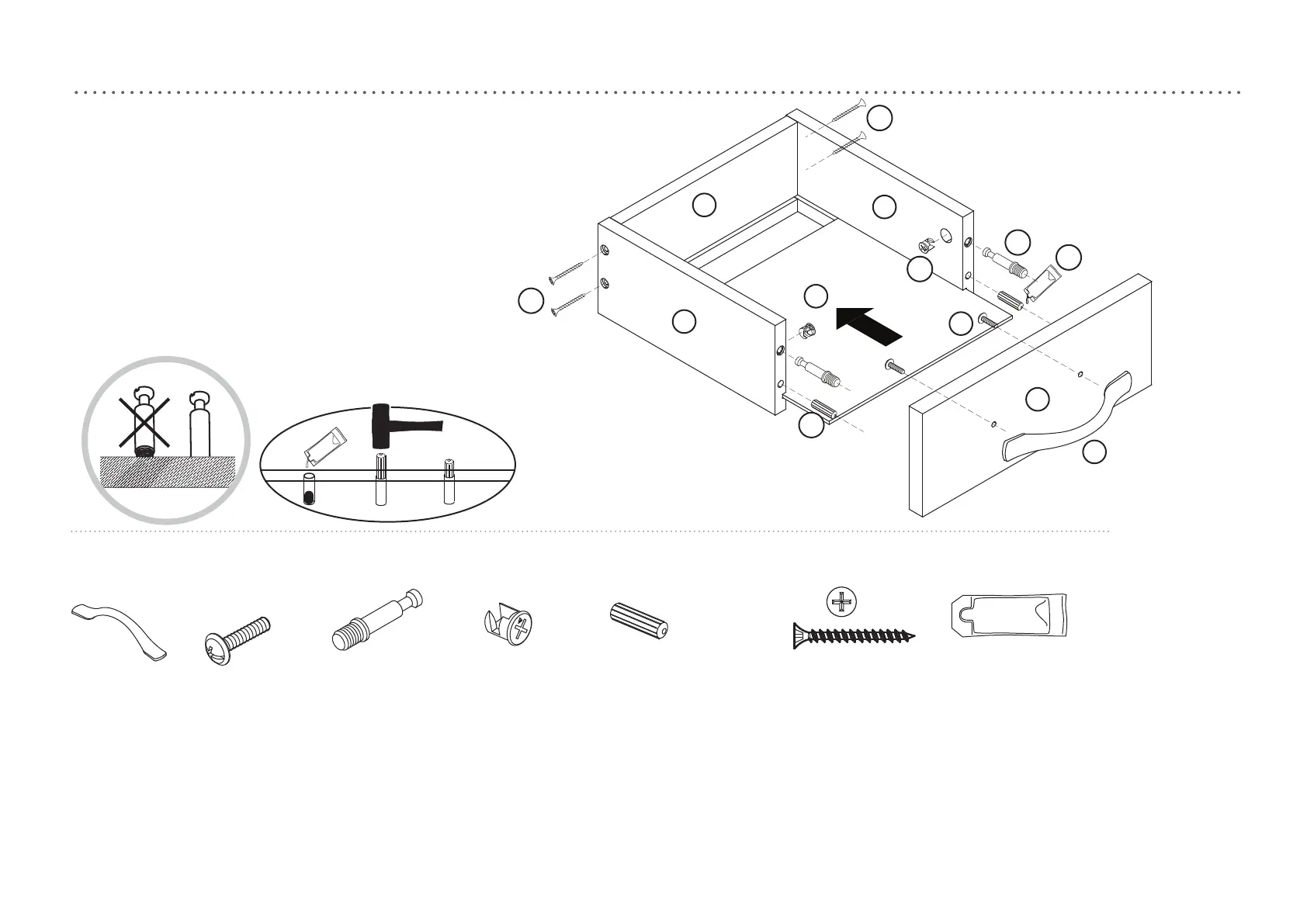

1. Attach small cam bolts (Bb) and dowels (Dd) to drawer front (R) using glue.

2.Attach drawer pull (W) to drawer front.

3.Attach drawer left side (T) to drawer back (U) using screws (Hh).

4.Repeat for drawer right side.

5.Slide drawer bottom (V) into groove.

6.Install small cam locks (Cc) and glue dowels (Dd) into drawer sides.

7.Attach drawer front (R) to drawer using glue and tighten cam locks.
