Removal of the belt system

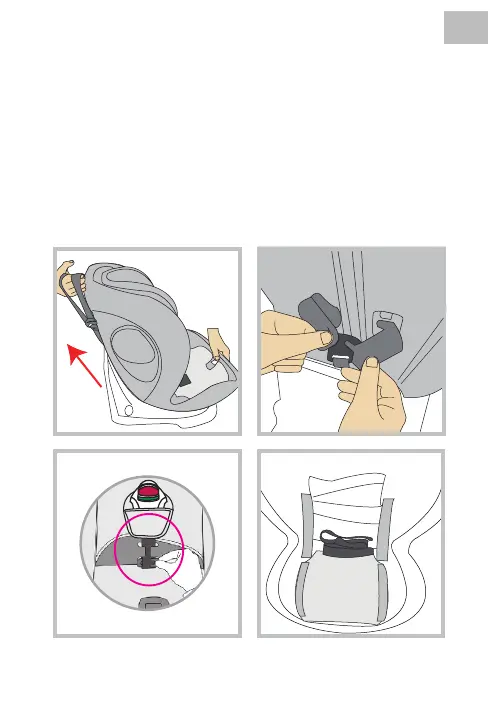

• Loosen the belt system so that the shoulder belt bracket can be seen on the reverse side of
the child car seat. (Fig. 1)
• Pull the shoulder belts out of their metal brackets on the reverse side of the child car seat and
guide these through the child car seat to the front side. (Fig. 2)
• Remove the shoulder pads, the belt tongues and the belt lock pad.
• To remove the seat belt buckle, you must turn the metal clip of the seat belt buckle crosswise
and push it through the opening on the seat bucket. (Fig. 3)
• Fold the shoulder belts together so that these can be stored in the hollow on the back rest
behind the seat cover. (Fig. 4)
• Ensure that you retain all the parts that are removed in a safe place.
