18
C. Place the slide onto the faceplate so that the bends of the faceplate pieces go inside of
the slide.
2400 INSERT FACEPLATE BOLT ASSEMBLY:
Contents: 8 - 1/4" x 1" (6.25 mm x 25 mm) carriage bolts
8 - 1/4" (6.25 mm) flat washers
8 - 1/4" (6.25 mm) hex nuts

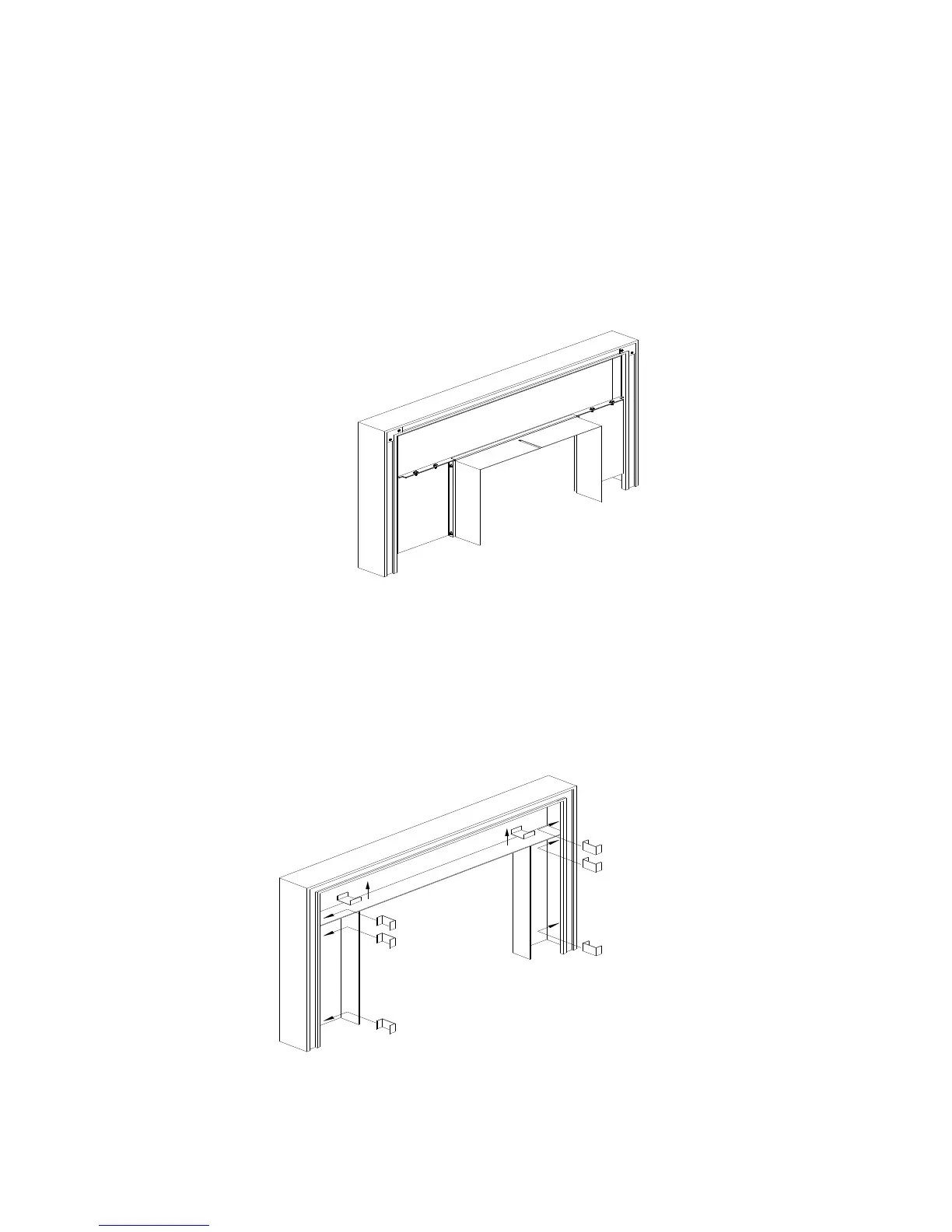

D. Line up the holes by pushing the sides out and install (smooth heads inside) all the bolts
loosely. Line up the edge of the faceplate top and side, tighten the two bolts joining
them, and then tighten the side bolts. Tighten the bolts on the other side in the same
manner (see Figure 2.9b).
Figure 2.9b
Installation on faceplates: Attach the mitered corners of the trim together using the corner
brackets. Slide the assembled trim over the edge of the faceplate. See Figures 2.9c & 2.9d.
Attach the left and right side to the top with corner brackets supplied. Slip the trim over the
faceplate and snap the eight trim retainers in place (see Figure 2.9c).
Figure 2.9c
