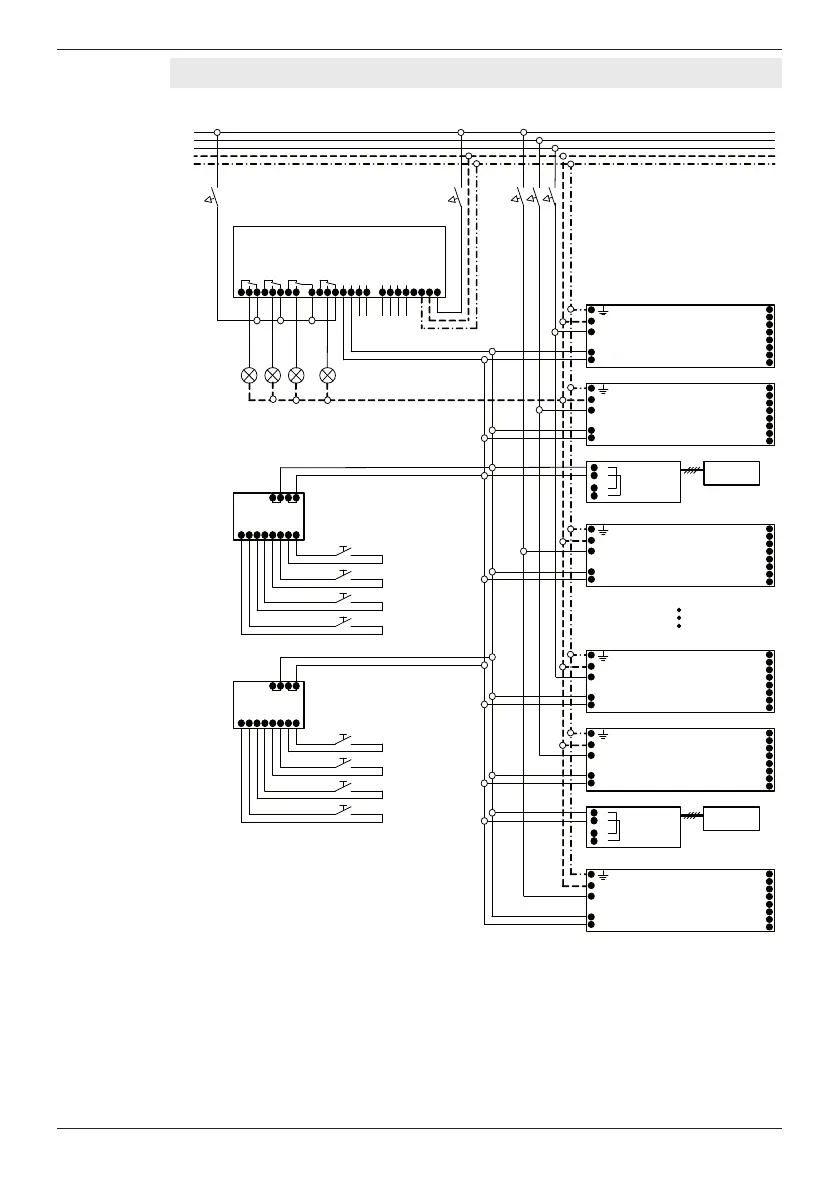

Connection diagram

L1
L2
L3
N
PE
A1
DA
DA
220
-240 V
21
22
23
24
25
26
27
28
A2
DA
DA
220
-240 V
21
22
23
24
25
26
27
28
A3
DA
DA
220
-240 V
21
22
23
24
25
26
27
28
F3
F2
DALI Professional
DA
DA
DA
DA
K1 K2 K4K3
+ - + - + - + -
A
DA
B
DA
C
DA
D
DA
NC PE N L
DALI PROFESSIONAL
CONTROLLER-4
4
A62
DA
DA
220
-240 V
21
22
23
24
25
26
27
28
A63
DA
DA
220
-240 V
21
22
23
24
25
26
27
28
A64
DA
DA
220
-240 V
21
22
23
24
25
26
27
28
DALI Professional
DA
DA
DA
DA
4
F1
DALI Professional
DA DA
A B C D
DALI Professional
DA DA
A B C D
DALI ECG
DALI ECG
DALI ECG
Sensor coupler
Light and
motion sensor
DALI ECG
Pushbutton coupler
Pushbutton coupler
DALI ECG
Sensor coupler
Light and
motion sensor
DALI ECG
Analog wiring
of the B, C and D circuits
Sensor
Sensor
