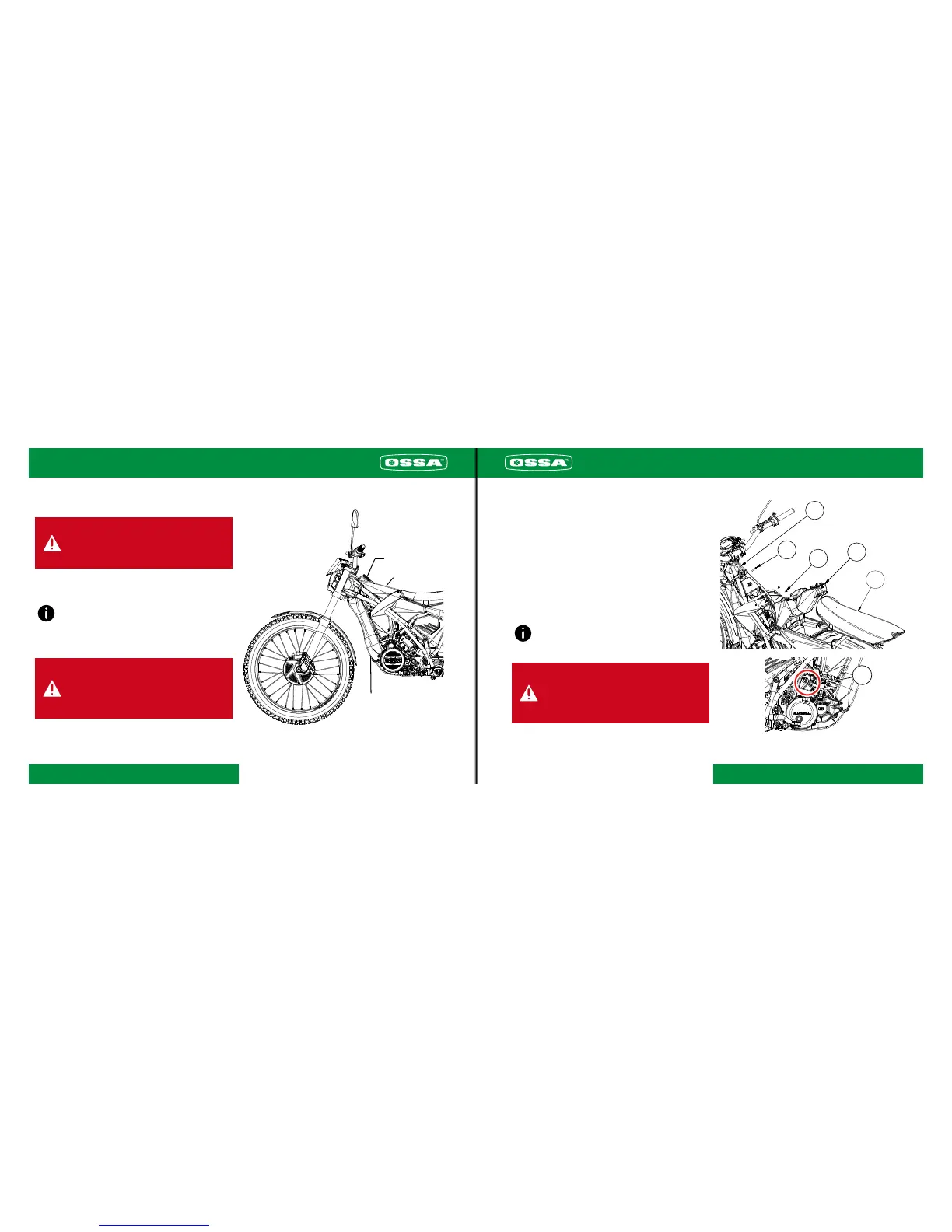

Fuel tank
Fuel tank
The engine of this motorcycle works with
a mixture of unleaded petrol and 2S oil,
100% synthetic in a 0.9 proportion.
The Explorer has two fuel tanks, one forms a struc-
tural part of the chassis and is located on the front
inside part. The other one is made of polyamide
plastic and is located in the classic position on the
frame. To fill up with petrol, open the upper fuel tank
lid, situated on the upper part, by unscrewing in an
anti-clockwise direction.
It’s recommended that a hose or funnel
is used to fill up to avoid spilling the
petrol. This is especially important if the
motorcycle is hot. DO NOT fill up with
petrol when the motorcycle is turned on.
Lower fuel tank
Upper fuel tank
Filling lid
In order to access some parts of the engine or the wiring, you
must previously lift the upper fuel tank.
1: First you must remove the seat. (see page 25, Seat)
2: Unscrew only the four upper screws of the side tank pannels.
3: Disconnect the air hose located in the front of the upper fuel
tank.
4: Disconnect the conector that connects both fuel tanks.
5: Unscrew the upper tank central screw (which is located where
indicated with number 5).
6: We proceed to lift the tank from the front, pivoting backwards.
When performing the operation No. 4 (Disconnect
the connector that connects the two fuel tanks), You
must mind the existence of residual fuel in the quick
connector.
In operation No. 2 (Unscrew only the four
upper screws of the side tank pannels)
never release the screws that attach the
pannels to the radiator, as it could pierce
it or eventually damage the threads.
1
2
5
3
6
4
