1.
ASSEMBLY INSTRUCTION FOR HERU
®
90 T EC 2
Mount the unit with concomitant rubber cushions and adequate screws for the foundation.
NB! The concomitant rubber cushions can be compressed to a thickness of maximum 10 mm.
The unit is not supplied with wall screws.

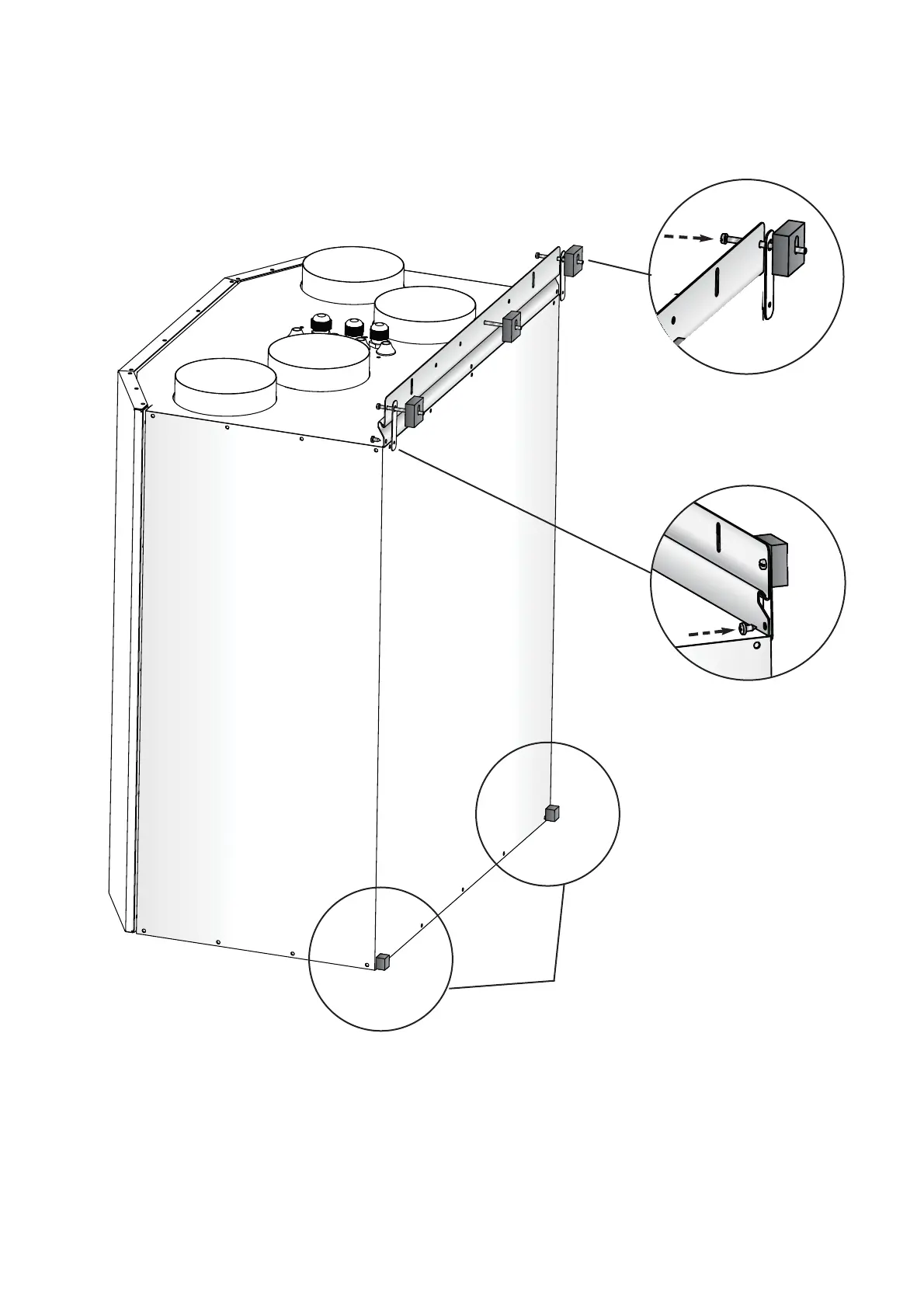

Fasten two small adhesive rubber cushions
on the backside, in both corners at the bottom
of the unit
2.
Fasten the wall bracket
with two lock washers,
3 rubber cushions and
adequate screws.
3.
Suspend the unit on the
wall bracket and secure
with two screws 4,2 x 9,5.
75
