CAUTION: To prevent personal injury, wear eye
protection that meets ANSI Z87.1 and OSHA standards.
No. 536254
Camshaft Timing Alignment Pin
Applications: 1.9L VIN 7 4-cylinder engine used in
1991-2002 Saturn SC-2, SL-2, SW-2.
1.9L VIN 8 4-cylinder engine used in
1995-2002 Saturn SC-1, SL-1, SW-2

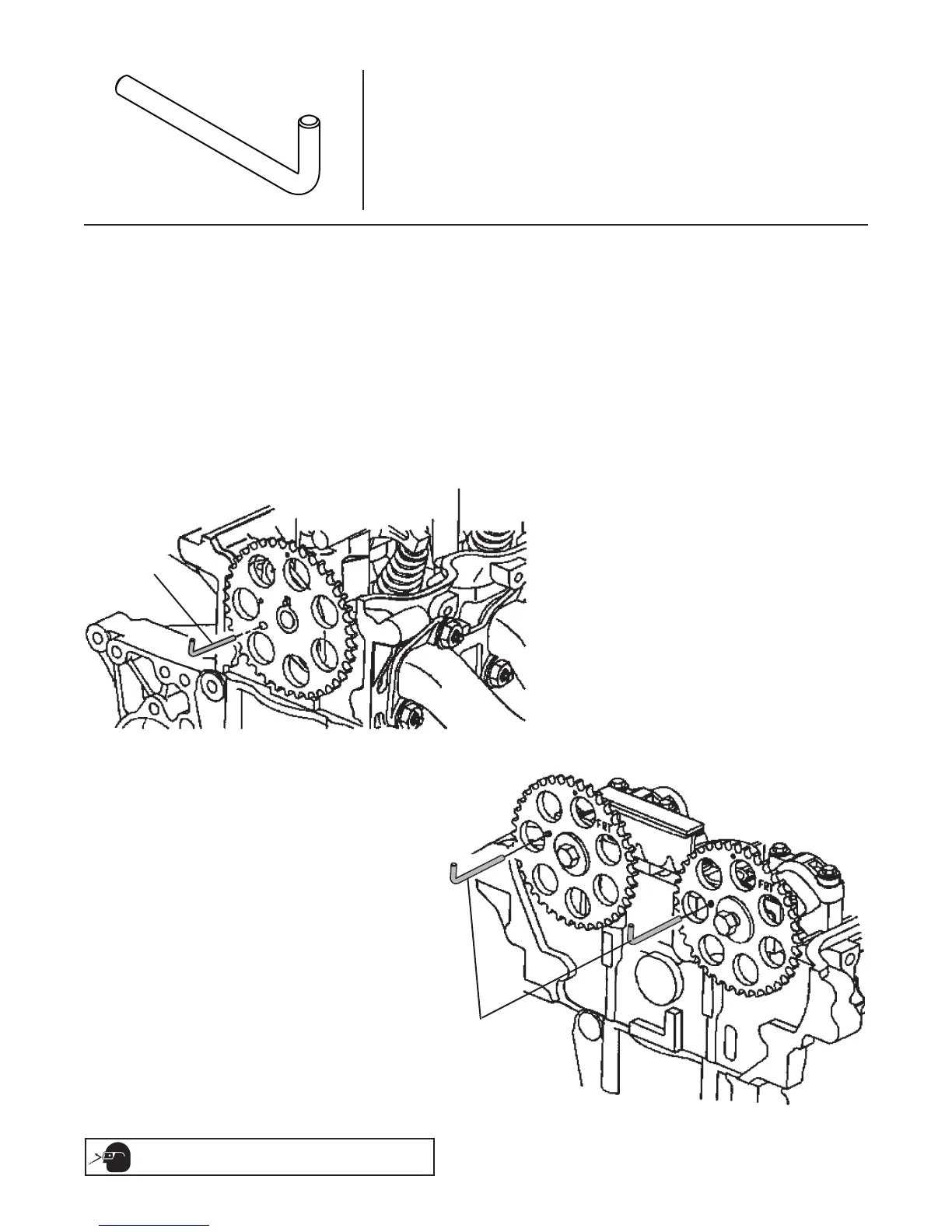

1. Bring the camshaft(s) up to TDC #1 cylinder. Verify TDC by installing No. 536254 camshaft timing
alignment pin(s) through the hole(s) in the cam sprocket and into the hole(s) in the cylinder head.
2. Install the timing chain onto the cam gear.
3. Remove the No. 536254 camshaft timing alignment pin(s).
NOTE: For 1.9L VIN 8 engines, one (1) No. 536254 pin is required.
For 1.9L VIN 7 engines, two (2) No. 536254 pins are required.
1.9L VIN 8 Engine
Figure 1
536254
1.9L VIN 7 Engine
Figure 2
536254
