CAUTION: To prevent personal injury, wear eye
protection that meets ANSI Z87.1 and OSHA standards.
No. 536255
Timing Chain Tensioner Retainer
Applications: 1.9L VIN 7 4-cylinder engine used in
1991-2002 Saturn SC-2, SL-2, SW-2
1. Retract the timing chain tensioner plunger, and pin the ratchet lever with the No. 536255 timing chain
tensioner retainer.
2. Install the chain tensioner and torque the retaining bolts. Refer to the vehicle manufacturer service
manual for torque specications.
3. Remove No. 536255 timing chain tensioner retainer, and allow the tensioner plunger to extend.

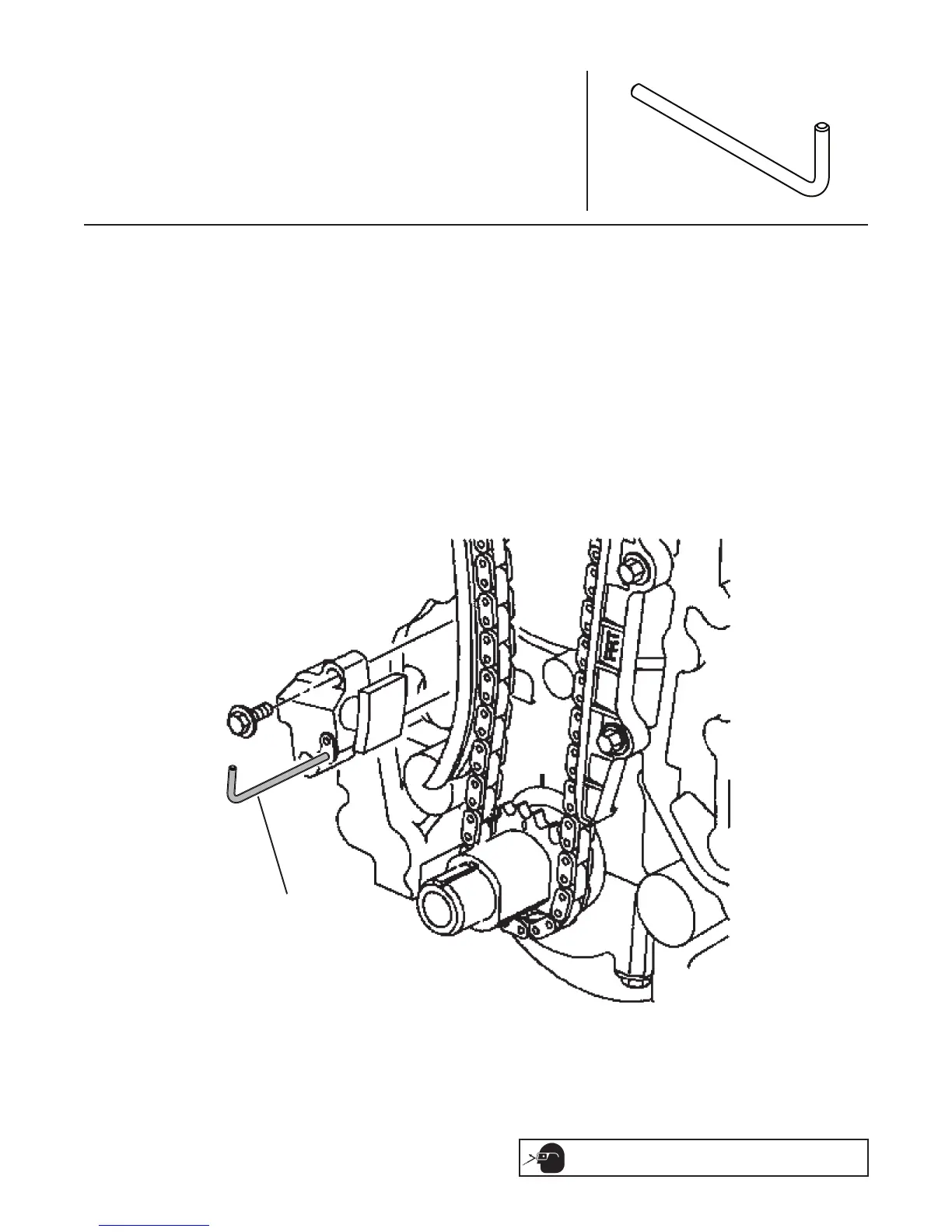

Figure 1
536255
