User’s Guide of DO3000 Door Operator
Lead the green future All rights reserved © OTIS 13/48
开门
关门
关门到位点
开门到位点
Op_CreepSpd
Cl_StartSpd
Op_Speed
Cl_Speed
Op_StartSpd
Cl_CreepSpd
Op_Accel
Op_Decel
Cl_Accel
Cl_Decel
Op_StartDis
Cl_CreepDis
Op_JerkAcc
Op_JerkDec
Op_CreepDis
Cl_StartDis
Cl_JerkDec
Cl_JerkAcc
V:mm/s
S:mm
图 3
Parameter
Menu
Function No.
Description
Password Level
Op_Accel
331
1
Open acceleration
0
Op_Decel
331
2
Open deceleration
0
Op_StartDis
331
3
Open start buffer distance
0
Op_StartSpd
331
4
Open start buffer speed
0
Op_CreepDis
331
5
Open arrive buffer distance
0
Op_CreepSpd
331
6
Open arrive buffer speed
0
Op_Speed
331
7
Max. open speed
0
Op_JerkAcc
331
16
Open jerk acceleration
1
Op_JerkDec
331
17
Open jerk deceleration
1
Cl_Accel
331
8
Close acceleration
0
Cl_Decel
331
9
Close deceleration
0
Cl_StartDis
331
10
Close start buffer distance
0
Cl_StartSpd
331
11
Close start buffer speed
0
Cl_CreepDis
331
12
Close arrive buffer distance
0
Cl_CreepSpd
331
13
Close arrive buffer speed
0
Cl_Speed
331
14
Max. close speed
0
Cl_JerkAcc
331
18
Close jerk acceleration
1
Cl_JerkDec
331
19
Close jerk deceleration
1
Password level means that the parameter can be operated only if the password permission is obtained.

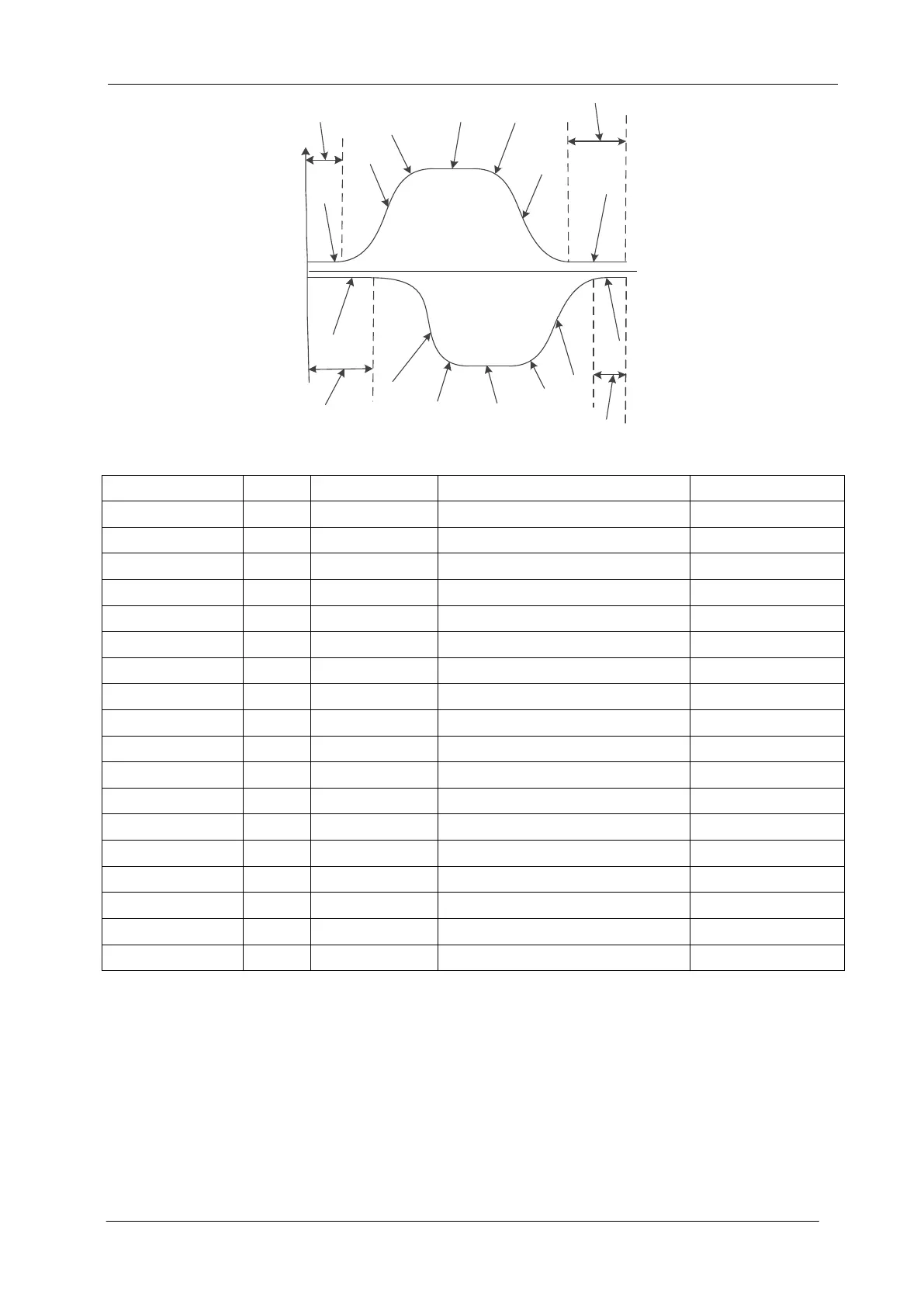

Reopen curve is shown as below:
Close limit
Open limit
Open
Close
