User’s Guide of DO3000 Door Operator
Lead the green future All rights reserved © OTIS 26/48
Ready/error: blink at normal conditions, and normally on in case of fault
Close arrive: normally on when the close arrive signal is input after the door is closed in place.
ST1/ST2/ST3: ST code signal input, normally on with signal.
REV input: light screen beam signal input, normally on if light screen beam signal is input
SGS: passenger protection input, normally on with signal
DOB: open button input, normally on with signal
DOS output: passenger protection, blink if the door operator is blocked at the close process
DOL output: normally on when the open arrive signal is output by controller after the door is opened
in place
Protection: off without the motor output, and normally on with motor output

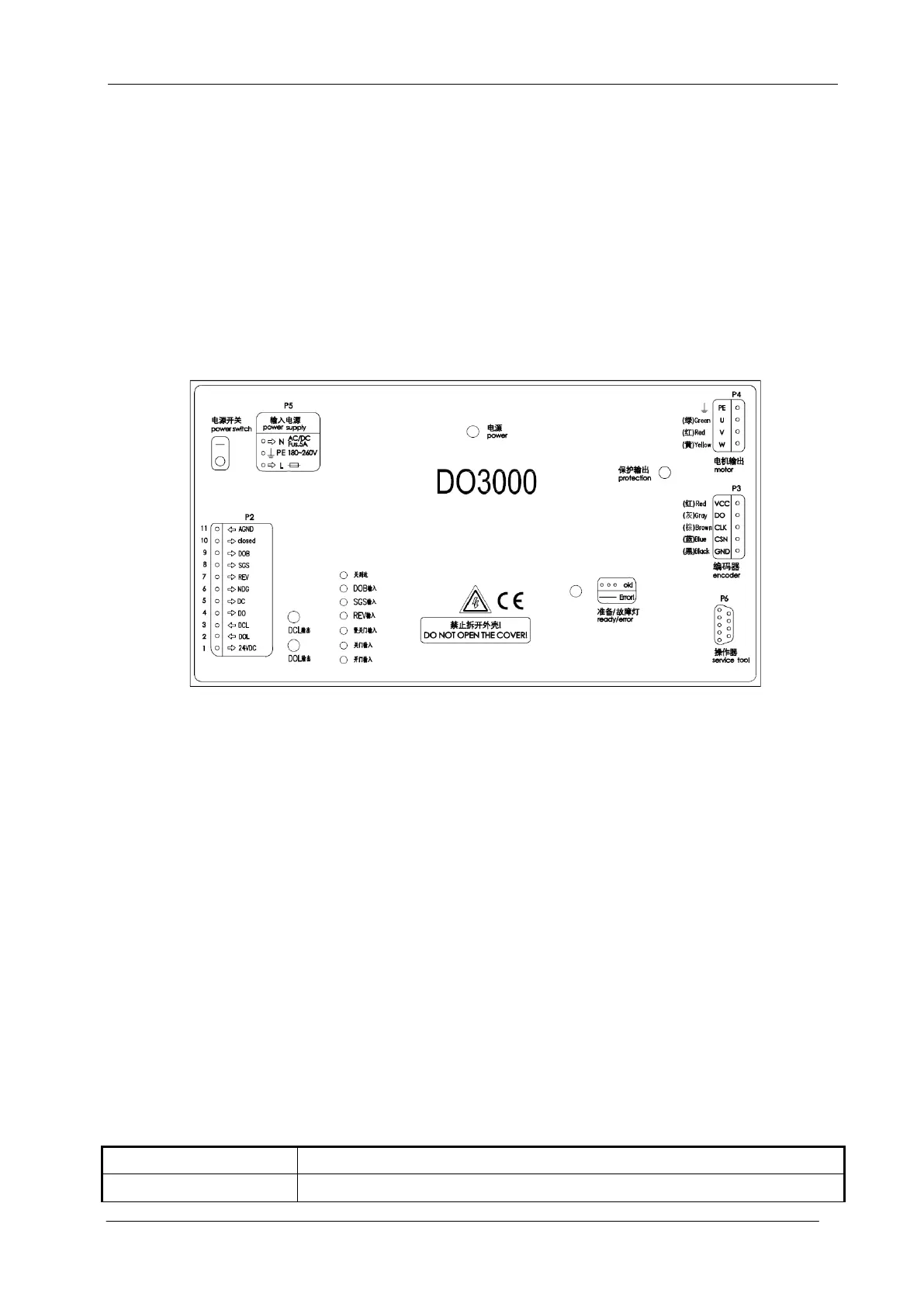

3.2.1.3 HAA24360G3, HAA24360G8 controller case
Fig.3-10 Controller case
The circles on the figure represent the indicators corresponding to various functions
Power: normally on when power works properly
Ready/error: blink at normal conditions, and normally on in case of fault
Close arrive: normally on when the close arrive signal is input after the door is closed in place.
DO/DC/NDG: open, close and slow close signal input, ST code signal input, normally on with signal.
REV input: light screen beam signal input, normally on if light screen beam signal is input
SGS: passenger protection input, normally on with signal
DOB: open button input, normally on with signal
DCL output: normally on when the close arrive signal is output by controller after the door is closed
in place
DOL output: normally on when the open arrive signal is output by controller after the door is opened
in place
Protection: off without the motor output, and normally on with motor output
3.2.1.4 Definitions and descriptions of input/output ports
Definitions and descriptions of input/output ports are as shown in Tables 3-1,3-2 and 3-3。
Table 3-1 Definitions of power ports
