User’s Guide of DO3000 Door Operator
Lead the green future All rights reserved © OTIS 25/48
3.2.1 Controller case
3.2.1.1 HAA24360G1, HAA24360G2, HAA24360G4, HAA24360G7, HAA24360G9 Controllers

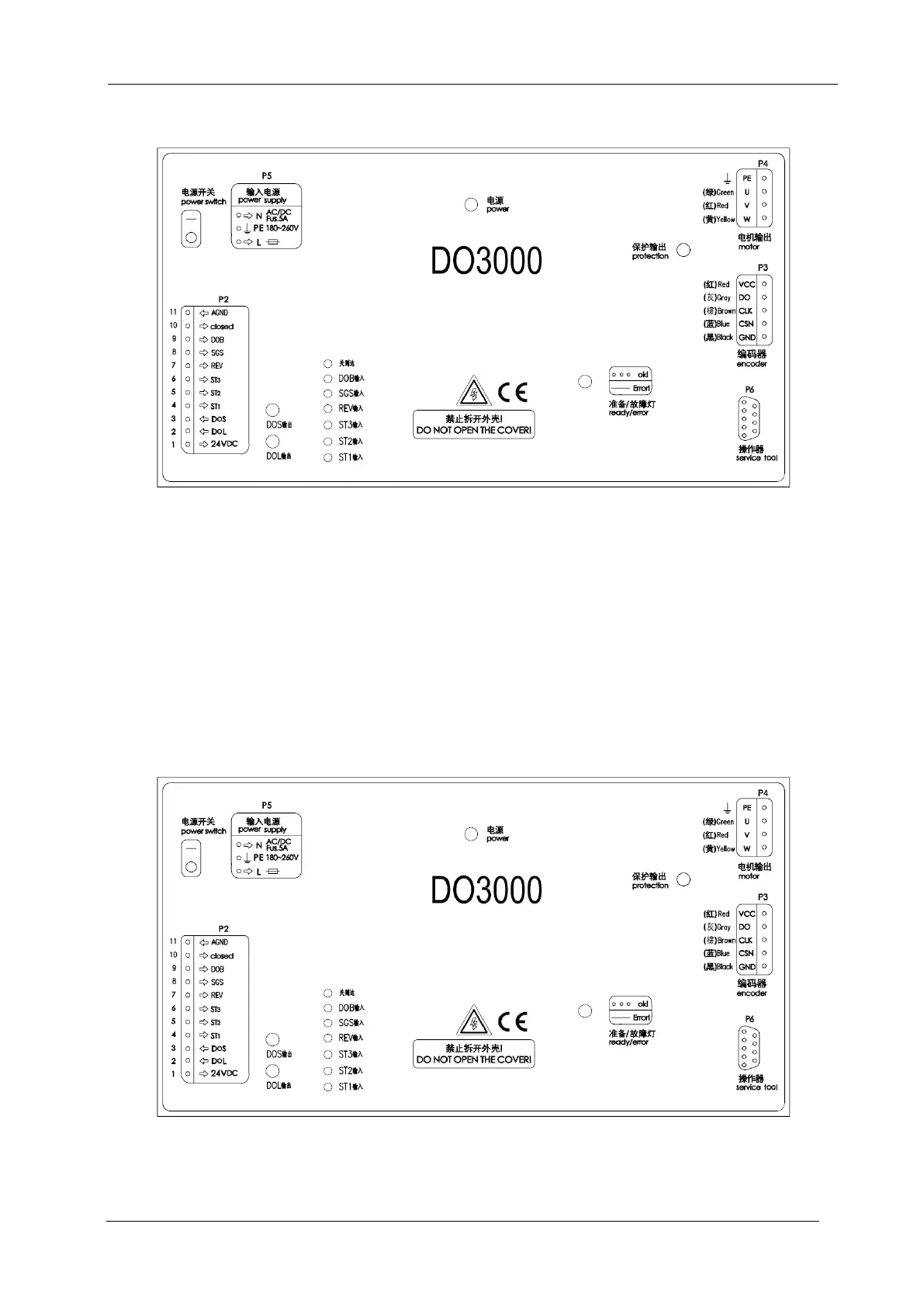

Fig.3-8 Controller case
3.2.1.2 HAA24360G5, HAA24360G6, HAA24360G10, HAA24360G11 Controllers
Fig.3-9 Controller case
 The circles on the figure represent the indicators corresponding to various functions
Power: normally on when power works properly
(X)
(X)
