Oven 5000G* page 5

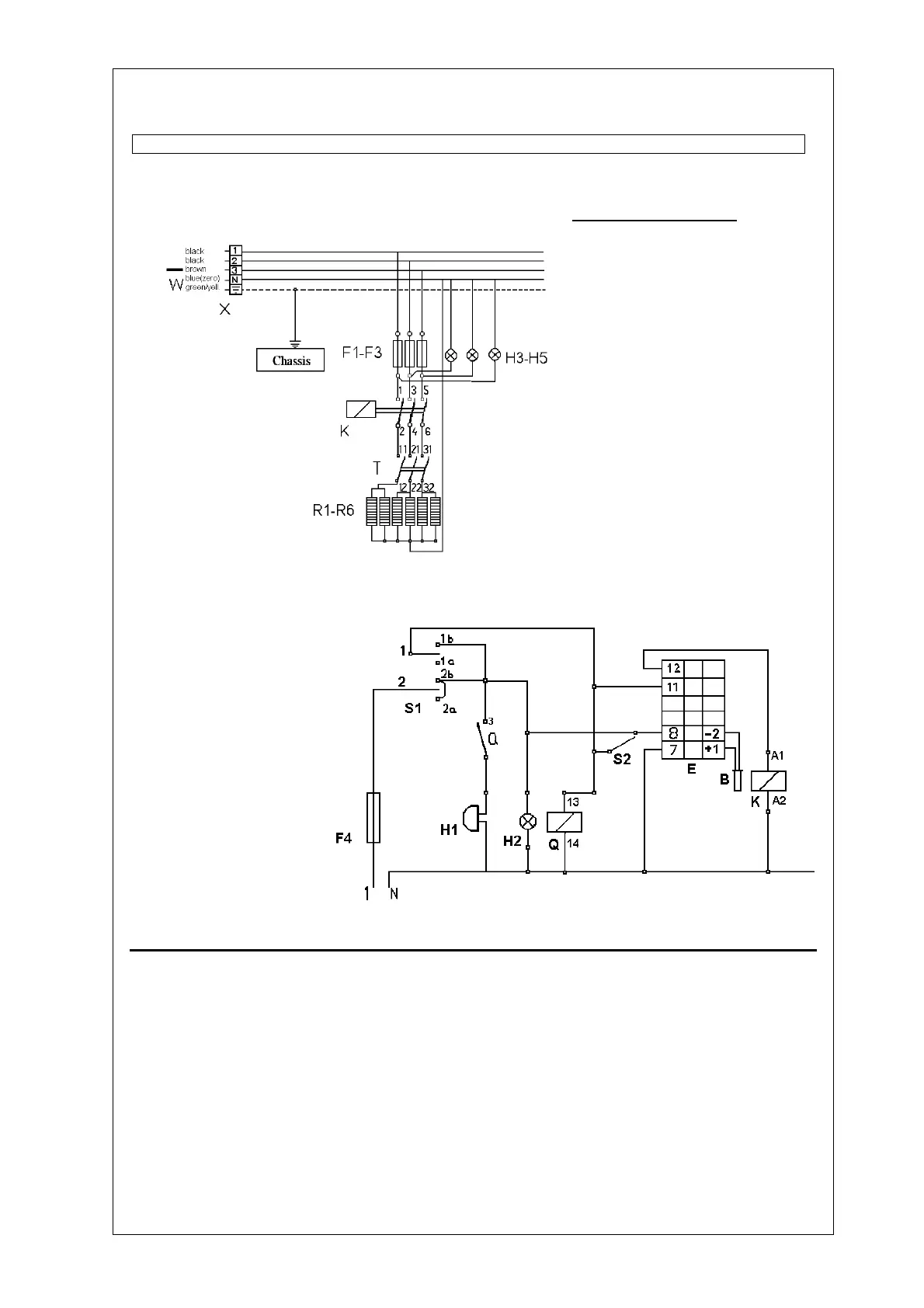

12 – General electric schema :
Legend :
B Temperature sensor
E El.Temp.Controller K 48
F1, F3 Fuse DO 1, int. 10 A
F4 Fuse DO 1, int. 2 A
H1 Buzzer BE 220 2413001
H2 Light 25W 230V
H3-H5 Pilot lamp SL-656 ZB
K Contactor DIL EM 01/230V
Q Industrial relay TRP 614 –
or: - Contactor DIL EM
(as above)
R1-R6 Heating element 750
W230V
S1 Switch SP 400 A7B
S2 Timer 120 min
T Thermal fuse TRP 315
X Connector plate 5933-31
W Connecting cord GG/J-y
5x1.5
14. Spare parts:
On the sliding plate, the following spare parts are deposited:
- a 10 m roll of teflon-coated fiber glass web, - one ElectronicTemp.Controller K 48,
- one Heating element 750 W230V, - two Contactors DIL EM 01/230V,
- one Temperature sensor, - one Thermal fuse TRP 315
Within the drawer with electric controls can be found:
- 2 fuses 10 Amp - 2 fuses 2 Amp,
- one lamps 25 W - one switch SP 400 A7B
Other spare parts can be asked on the under mentioned address:
_____________________________________________________
CR-Machinery SA, 5, Place de la Gare, CH-1196 COPPET
Fax x41 22 354 8180, e-mail: jdbro@iprolink.ch, info@crequipements.ch
