7

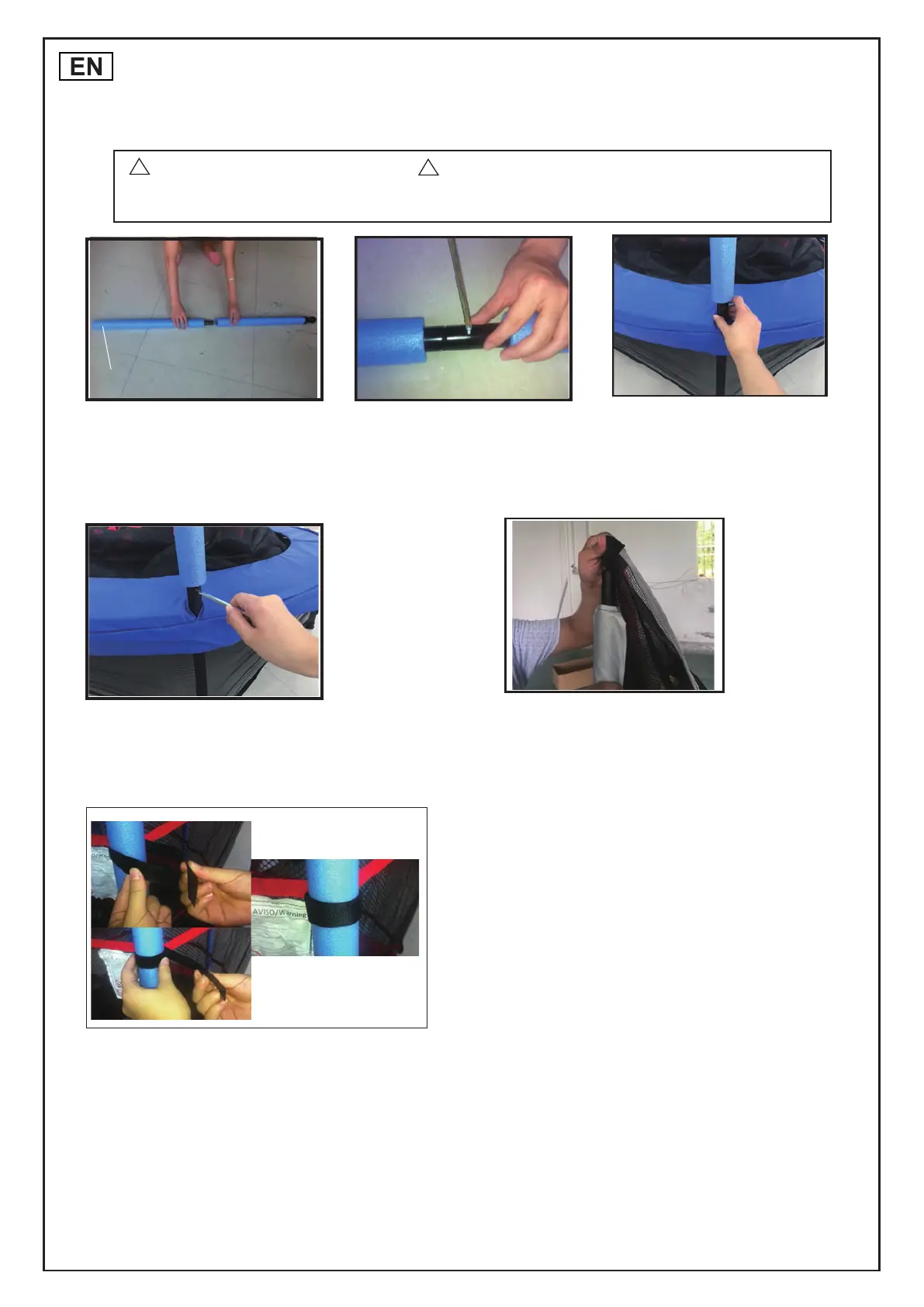

Insert the smaller diameter end of an upper
enclosure pole into the larger diameter end
of a lower enclosure pole and align screw
holes. (You may need to slide the pre-
installed foam sleeves to gain access to the
ends of the poles)
Insert screw & tighten. DO NOT OVER-
TIGHTEN!. Repeat steps 1 & 2 to assemble
remaining 5 sets of upper & lower poles.
Blank Foam
Airzone
Embossed
Foam
Top
End
Bottom
End
TRAMPOLINE & ENCLOSURE ASSEMBLY
Refer to PARTS LIST for identification of parts.
Insert the bottom end of enclosure pole
assembly into the socket on frame, as
shown. Align screw holes.
Bottom of enclosu re pole th at goes
into socket on f ram e.
WARNING:
CHOKING HAZARD - Small Parts
Not for children under 3 yrs.
!
WARNING:
ADULT ASSEMBLY REQUIRED
Contains small parts, sharp points and sharp edges.
!
Insert screw & tighten.
DO NOT OVER TIGHTEN!.
Repeat step 19 with the remaining 5 enclosure
pole assemblies.
Locate the 6 nylon patches that are sewn
onto the top edge of the mesh.
Select a nylon patch that aligns with a CAP.
Carefully slip one of the patches over the top
of the enclosure pole .
Use care so that you do not tear the mesh.
Upper & Lower
Locate the upper and lower sets of hook and loop
fasteners sewn to the enclosure mesh There are 6
upper and 6 lower sets of hook & loop fasteners.
Tightly wrap both the upper & lower hook and loop
fasteners around the enclosure pole foam to secure
the mesh in place. Repeat this with the remaining
upper and lower hook & loop fasteners on the other
5 enclosure poles.
17 18
19
20
21
22
To Next Page
