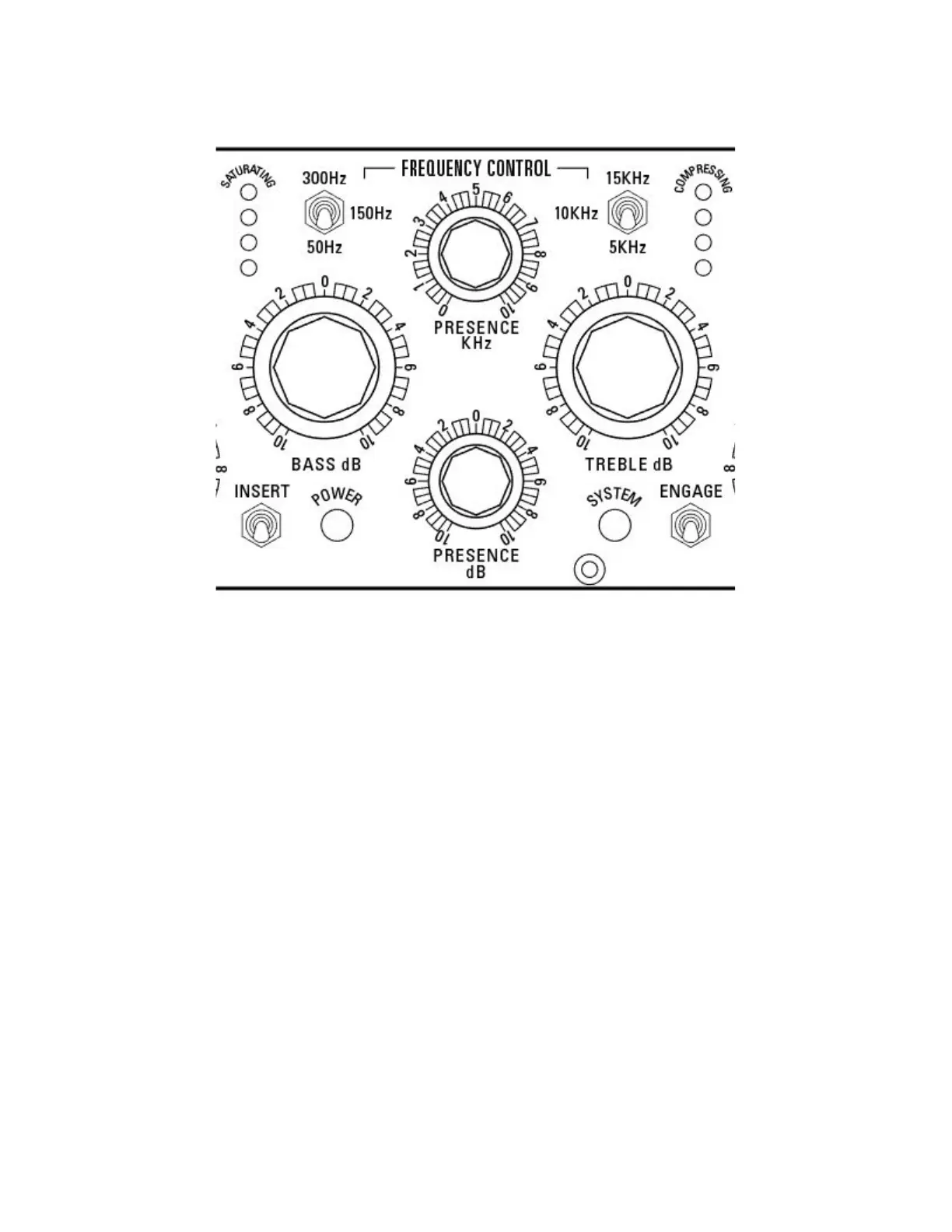

EQUALIZER
INSERT switch - Engages the external insert send and return, which is after the compressor
and before the DRIVE. The send is always active, and return is enabled with the switch. If no
signal is present at the return XLR with the INSERT switch engaged, the SAT feed will
have no output and appear muted.
300Hz/150Hz/50Hz switch - Sets the frequency of the low shelf.
BASS dB control - Sets the amplitude of the low shelf.
PRESENCE KHz control
PRESENCE dB control- Sets the amplitude of the middle band.
15KHz/10KHz/5KHz switch - Sets the frequency of the high shelf.
TREBLE dB control- Sets the amplitude of the high shelf.
ENGAGE switch - Master bypass switch for the entire unit. Note that when the source signal is
mic or instrument, the bypass signal is taken from the preamp outputs. When the preamps
are set to a high gain, there is a potential for the bypass signal to be very loud.
Copyright © 2018, Overstayer Recording Equipment, Inc..
All rights reserved. All features and specifications are subject to change without notice.
