Ozark Mountain BBQ1934 - Ozark Mountain Smoker Grill Parts and Tools

3

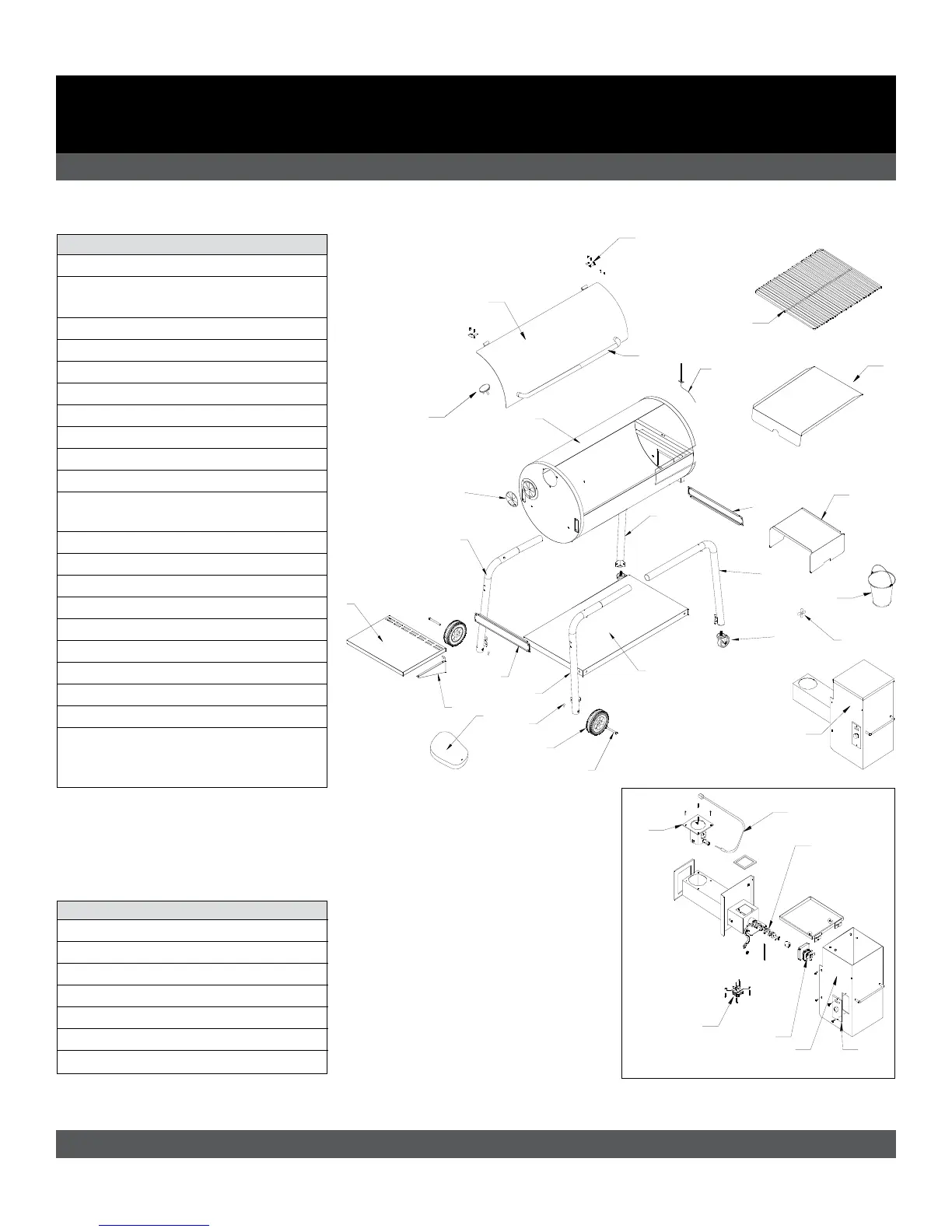

Parts and Tools List
14
12
13
1
15
7
3
5
4
11
16
17
19
18
8
10
6
11
20
2
35
9
38
24
25
28
31
27
26
29
30
22
23
21
Hopper / Burner Assembly Components
Part # Part Name Qty
1 Grill 1
2/3 Pre-assembled 1
side shelf with brackets
4/5 Caster legs 2
6/7 Wheel legs 2
8 Casters 2
9 Wheels 2
10 Bottom shelf 1
11 Side bars 2
12 Door 1
13 Door handle 1
14 Hardware kit 1
see next page for components
15 Paddle vent 1
16 Porcelain grill 1
17 Grease drain pan 1
18 Heat baffle 1
19 Grease bucket 1
20 Grill cover 1
21 Fan 1
22 Thermostat 1
23 Temperature sensor rod 1
24 Hopper / burner 1
assembly
see below for components
Hopper / Burner Assembly Components
(pre-assembled)
Part # Part name Qty
25 Firebox 1
26 Autostart hot rod 1
27 Auger 1
28 Draft inducer fan 1
29 Auger drive motor 1
30 Pellet hopper 1
31 Primary circuit board 1
