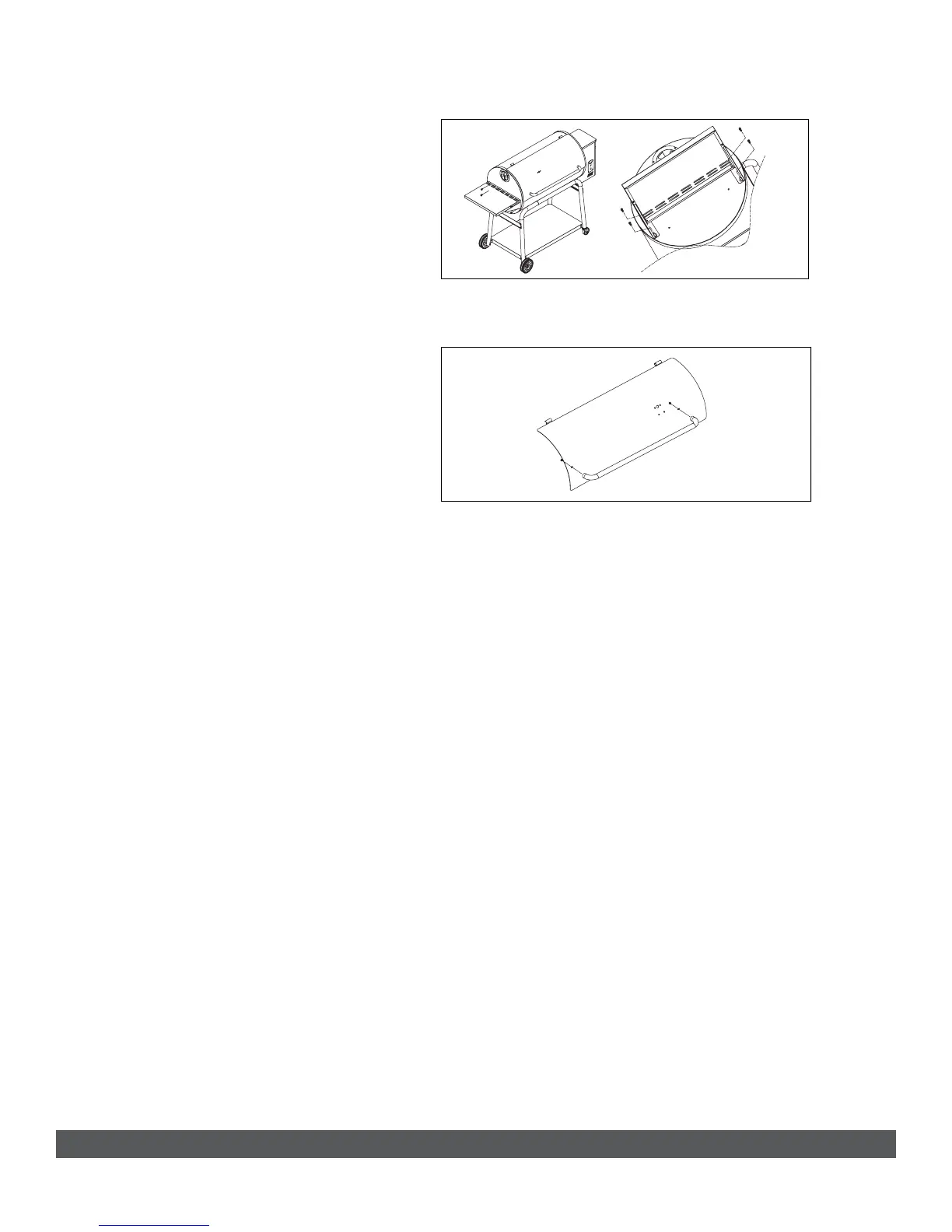

ATTACH THE SIDE SHELF ASSEMBLY TO THE GRILL
Hardware required:
4 x Screws 1/4" (32)
Align the four holes in the side
shelf bracket (2/3) with the holes
in the grill (1).
Put a 1/4" screw (32) through each
hole and tighten it.
ATTACH THE DOOR HANDLE TO THE DOOR
Parts required:
Door handle (13)
Door (12)
Hardware required:
2 x Screws 1/4" (32)
2 x Flat washers 1/4" (33)
2 x Spring washers 1/4" (37)
door handle
door
screw
washers
Align the two holes in the door handle (13) with the two holes in the door (12).
Put a 1/4" spring washer (37) and a 1/4" flat washer (33) on each 1/4" screw (32).
Insert each screw through the door, then through the handle. Tighten each screw.
