ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
1

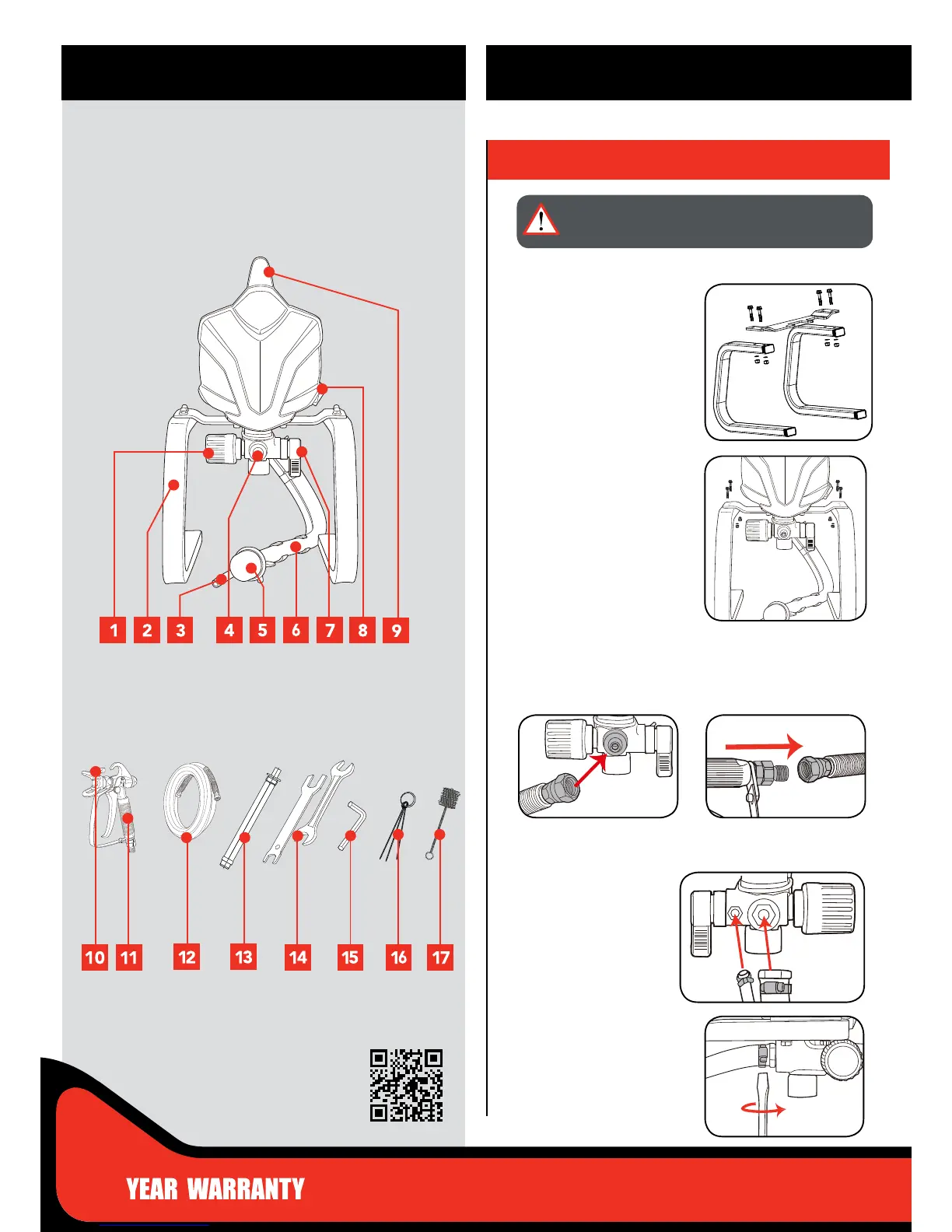

KNOW YOUR PRODUCT SETUP & PREPARATION
1. ASSEMBLY
1 Pressure Control Dial
2 Stand
3 Return Pipe
4 Paint Outlet
5 Filter
6 Inlet Hose
7 Priming Lever
8 On/Off Switch
9 Carry Handle
AIRLESS SPRAY GUN
2 Reposition pump on frame,
so legs face backwards.
Reconnect pump to frame
with four bolts.
1 Remove four bolts from
frame.
Hose Connection
Frame Connection
1 Connect high pressure
hose to paint outlet and
tighten.
2 Connect other end of hose
to gun swivel and tighten.
10 Nozzle Tip
11 Spray gun
12 7.6m High pressure hose
13 Spray Gun Filter
14 Spanner x 2
15 Hex Key
16 Fine Needle x 3
17 Cleaning Brush
3 Ensure all connections have been correctly tightened with a
19mm spanner.
4 Connect the inlet hose
and return pipe to the
back of the unit. Secure
the return pipe by
releasing the tabs on the
hose clamp.
5 Secure inlet hose by
tightening screw on hose
clamp with a at head
screwdriver.
WARNING! ENSURE THE TOOL IS DISCONNECTED
FROM THE POWER SUPPLY BEFORE PERFORMING
ANY OF THE FOLLOWING OPERATIONS.
