Changing the blades
The Hedge/Grass Trimmer is
equipped with two blades for all your
gardening needs.The hedge trimmer
blade (2) is used to cut hedges and
the grass shear blade (1) (Fig. 3) is
used to cut grass and hedges where
finer detail is required (Fig. 4).
1. Turn the Hedge/Grass Trimmer upside down holding
in one hand on a hard surface. Gently lift the tab of
the blade cover (10) and slide back until the cover
can be removed (Fig. 5).
2. Insert the desired blade into the base of the motor
housing (Fig. 6).
3. Align the 4 lugs for a secure fitment (Fig. 7). The
gearshaft in the middle of the blade also has to
be aligned.
4. Once the blade is in position, align the blade cover
with the slots in the base of the motor housing (Fig. 8).
5. Push forward until it clicks into place (Fig. 9).
The Hedge/Grass Trimmer is now ready for use.

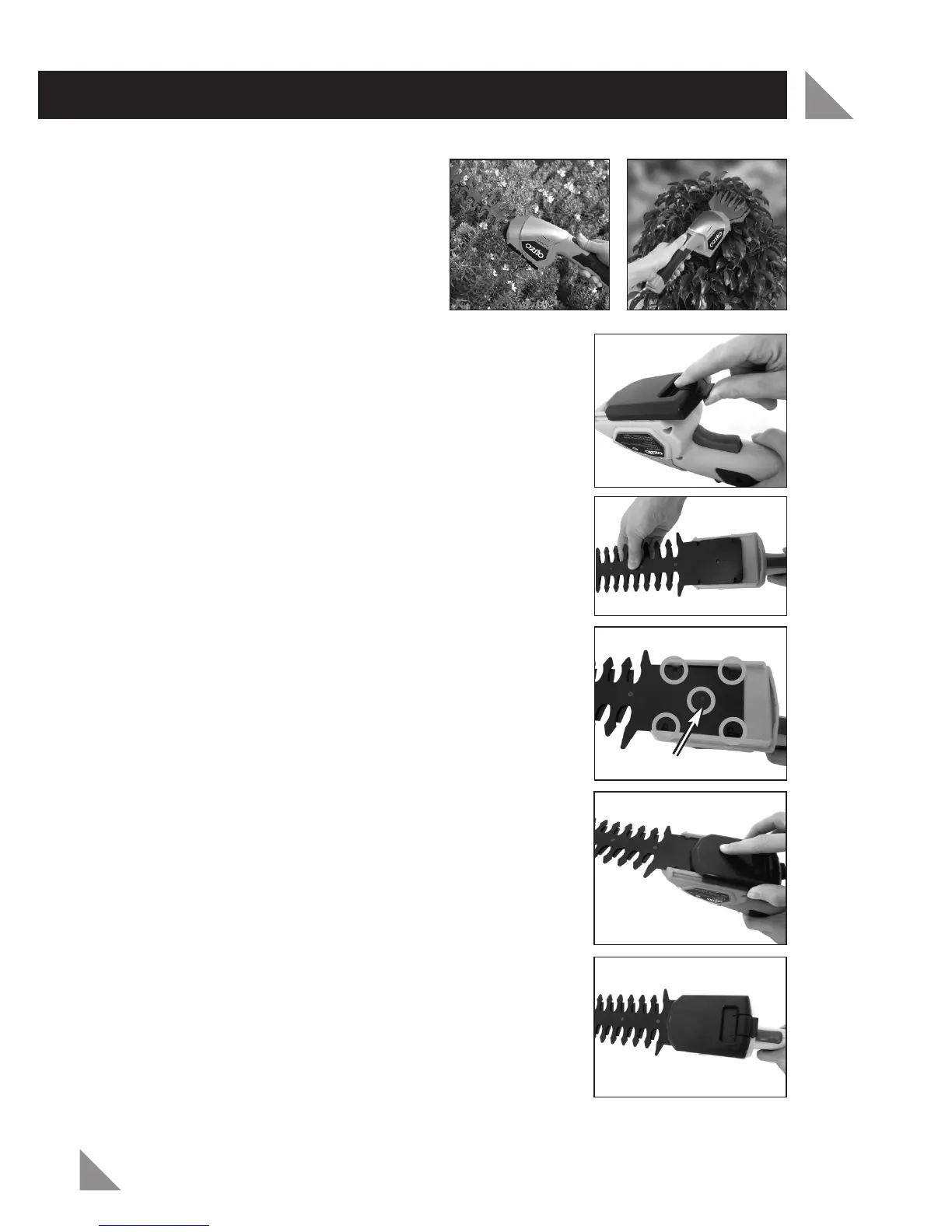

FITTING/CHANGING BLADES
Fig. 3 Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Gear shaft
