ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

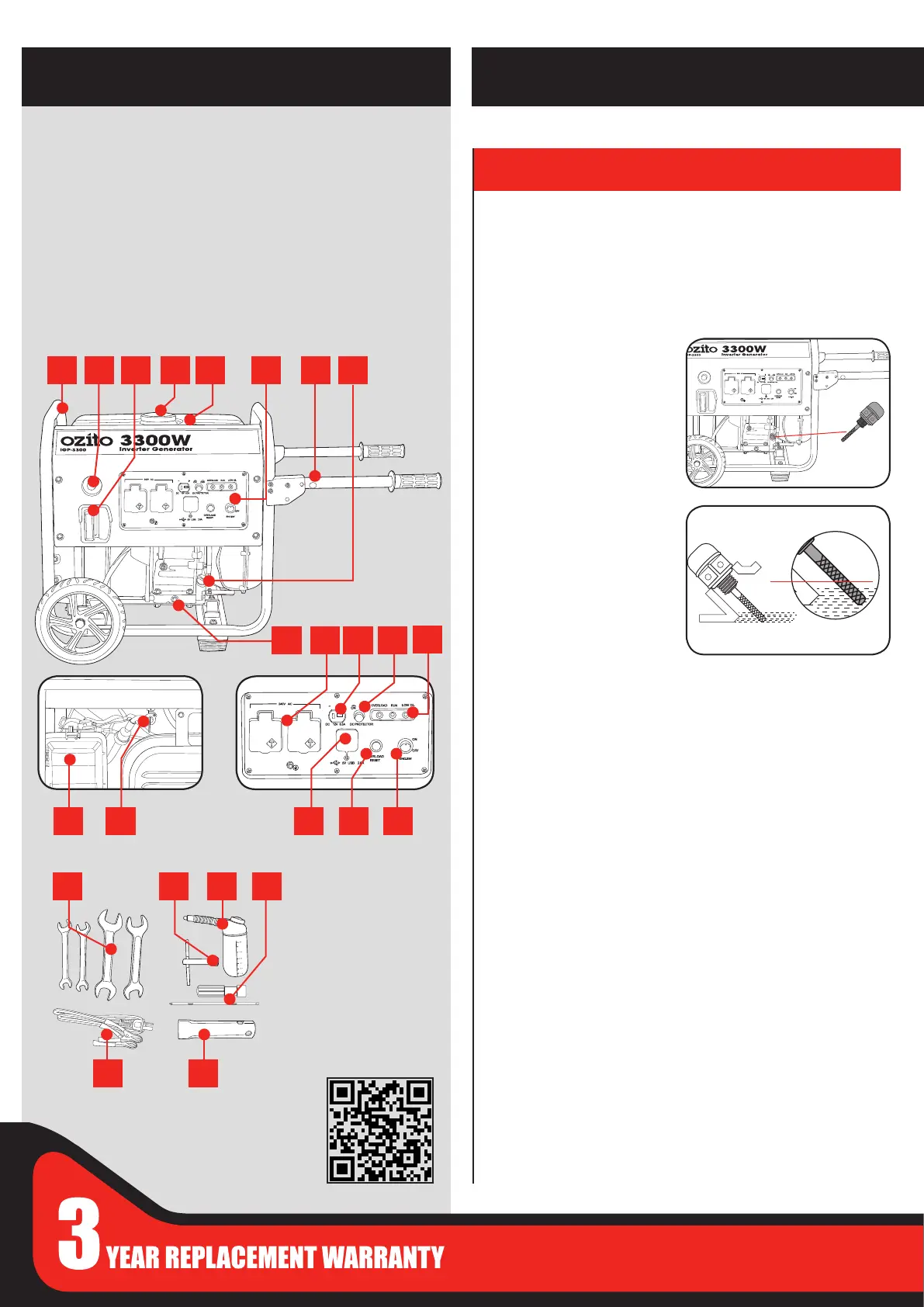

1. Frame
2. Choke
3. Recoil Starter
4. Fuel Tank Cap
5. Fuel Gauge
6. Control Panel
7. Transport Handle Release
8. Oil Dipstick
9. Oil Drain Screw
10. AC Socket x 2
11. Battery Charging Socket
12. DC Circuit Breaker Reset
13. States LED’s
14. Air Filter
15. Fuel Tap
16. USB Charge Outlets
17. Overload Reset Switch
18. Engine Ignition Switch
INVERTER GENERATOR
KNOW YOUR PRODUCT
1. LUBRICATION
SETUP & PREPARATION
1 2 3 4 5 6 7 8
12119
13
14 15
The generator is shipped without oil and must be lled before starting.
Oil tank capacity 600ml. (Use SAE30 or 15W40 oil).
Checking the Oil
2. Remove the dipstick, and
wipe with a clean rag. Check
the oil level by inserting
the dipstick in the ller hole
without screwing it in and
then removing it again.
3. If the oil level is below the
end of the dipstick, rell until
it registers on the halfway
mark of the dipstick. Use
premium quality 4-stroke
engine oil. Recommended
SAE30 or 15W40 for
most climate conditions in
Australia.
16 17 18
TOOLS & ACCESSORIES
19 20 21
19. O/E Spanners
20. T-Spanner
21. Oil Filler Bottle
22. Convertable Screwdriver
23. Battery Charging Cable
24. Spark Plug Wrench
22
23 24
Note: The Oil Alert LED will automatically illumnate before the oil level
falls below the safe limit. However, to avoid the inconvenience, it is still
advisable to visually inspect the oil level regularly.
1. Be sure to check that the generator is on a level surface with the
engine stopped.
10
