MATERIALS
All Ozone gliders are made from the highest quality materials avail-
able.
Cloth
Upper-surface
Porcher Skytex 9017 E77
Lower-surface
Porcher Skytex 9017 E68
Supported Internal Ribs
Porcher Skytex 9017 E29A
Unsupported Ribs
Porcher Skytex 9017 E29A
Leading-edge reinforcement
Plastic P18 / P25
Line Set
Lower cascade - Edelrid 8000UV,070/090/130/190/360 Aramid
Middle cascade - Edelrid 8000UV 050/070/090 Aramid
Upper cascade - Edelrid 8000UV 025/050/070 Aramid
Risers and hardware
Shackles
High quality micro maillons from Maillon Rapide.
Riser webbing
12mm Cousin zero stretch webbing
Pulleys
Ronstan ball bearings
COLLAPSE LINES
Collapse lines are available as an optional extra and should be added
to the wing before inducing collapses. Be sure to attach to both
sides of the canopy for symetric deflations. Please consult the rig-
ging diagram on page 50.

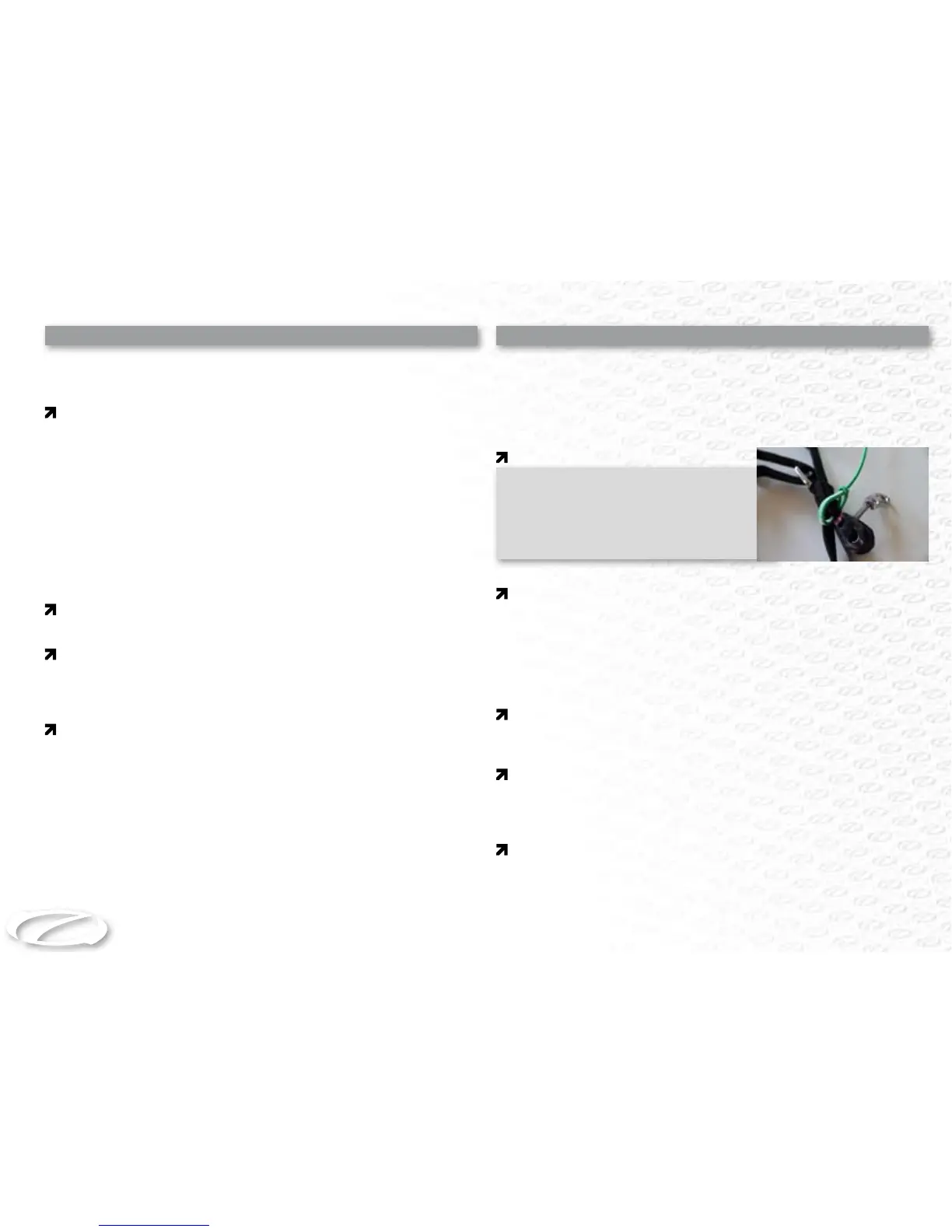

Step1 Collapse Risers
Attach the green line (collapse riser) to
the loop of the uppermost speed-system
pulley located on the A risers as shown.
Then attach the triangular maillon to the
other end of the collapse riser. Repeat on
other side.
Step2 Upper Lines
Attach Upper collapse lines to their corresponding tabs. The tabs
can be found along the leading edge. Z1 attaches to the free tab in
front of A1a and Z2 to the tab in front of A2a etc.
Please note Z15 does not have its own dedicated tab; it
needs to be attached to the same tab as A15.
Step3 Mid Lines
Attach the mid lines: ZM1 joins with Z1 & Z2 only; ZM2 joins with Z3
& Z4 etc etc...
Step4 Lower Lines
Attach the lower lines to the mid lines: ZR1 joins with ZM1 & ZM2;
ZR2 joins with ZM3 & ZM4; and ZR3 joins with ZM5 & ZM6. Join
ZR1,2&3 to ZRL1
Step5 Lines to Maillon
Attach ZRL1 to the triangular maillon on the collapse risers. Use the
rubber bands or alternatively some sticky tape to secure the maillon
in place to prevent it or the line from rotating.
