OZtent RV Owner’s Manual

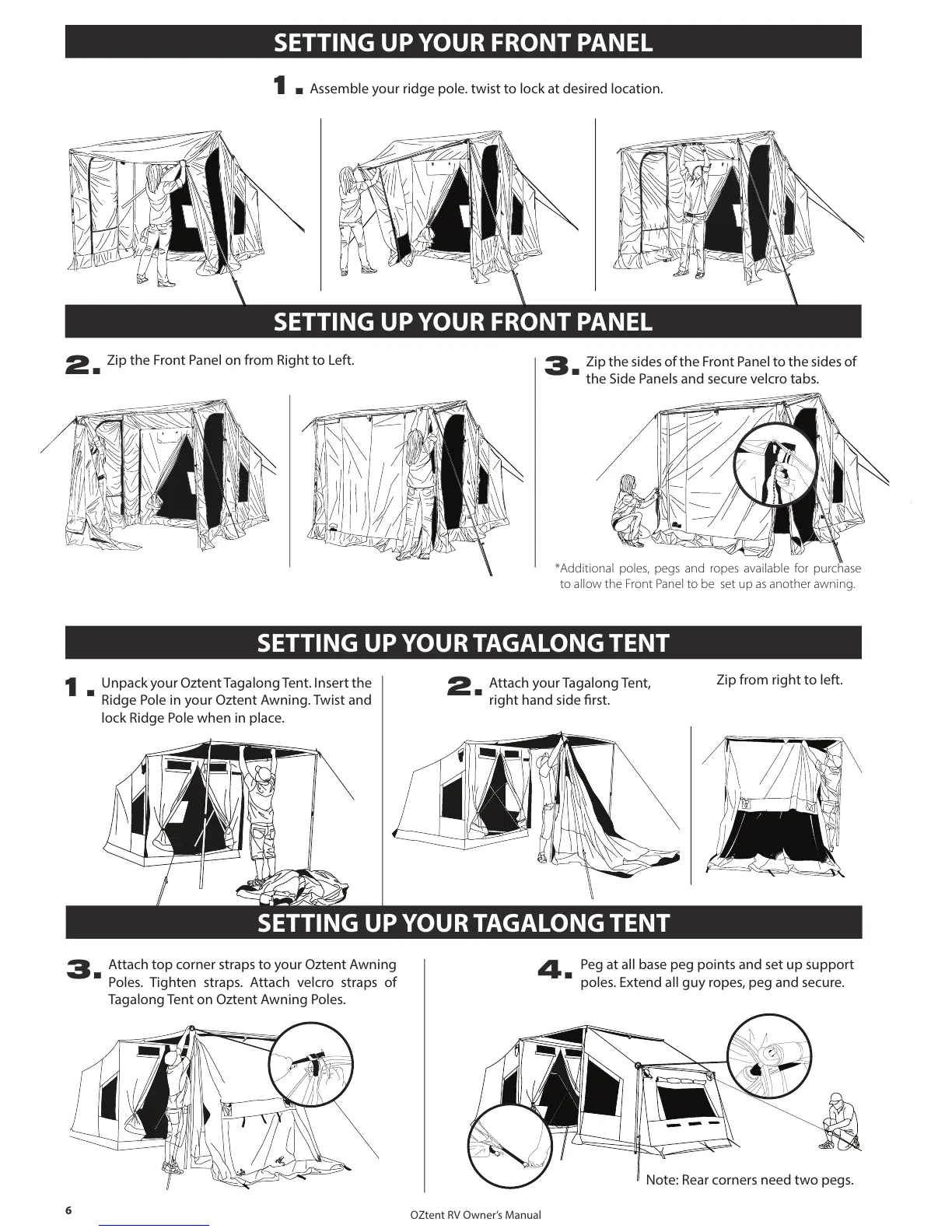

SETTING UP YOUR FRONT PANEL
2.
Zip the Front Panel on from Right to Left.
3.
Zip the sides of the Front Panel to the sides of
the Side Panels and secure velcro tabs.
SETTING UP YOUR FRONT PANEL
1.
Assemble your ridge pole. twist to lock at desired location.
Additional poles, pegs and ropes available for purchase
to allow the Front Panel to be set up as another awning.
*
Unpack your Oztent Tagalong Tent. Insert the
Ridge Pole in your Oztent Awning. Twist and
lock Ridge Pole when in place.
1.
2.
Attach your Tagalong Tent,
right hand side rst.
Zip from right to left.
SETTING UP YOUR TAGALONG TENT
SETTING UP YOUR TAGALONG TENT
4.
Peg at all base peg points and set up support
poles. Extend all guy ropes, peg and secure.
3.
Attach top corner straps to your Oztent Awning
Poles. Tighten straps. Attach velcro straps of
Tagalong Tent on Oztent Awning Poles.
Note: Rear corners need two pegs.
