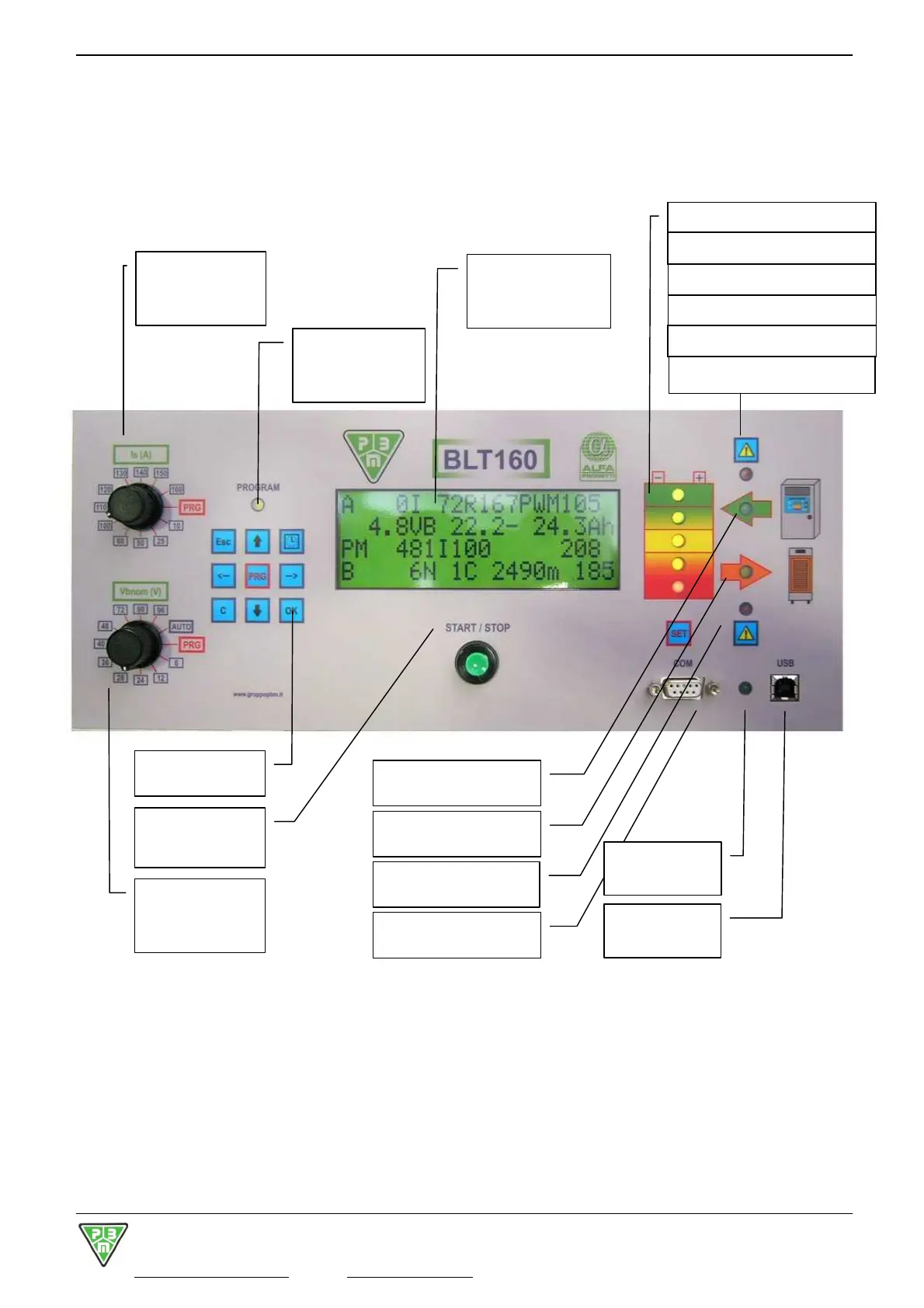

B) CONTROL PANEL
The BLT160 discharger is equipped with a multifunctional control panel for operative monitoring and main
functions settings.
Before start up, check out all of the main controls and indicators:
SW3
Discharge current
selector switches
DL14
Yellow LED
Ongoing
programming
DY1
Multifunctional LCD
display
4 lines x 20 chars
DL13 Green LED – 95% Battery
DL15 Green LED – 80% Battery
DL16 Yellow LED – 60% Battery
DL18 Yellow LED – 40% Battery
DL19 red LED – 20% Battery
SW4: Rated battery
voltage selector
switches
Programming
keyboard
P1
START - STOP
Button
DL12 Green LED
Charging / End of charge
DL17 Yellow LED
Discharging / End of dis.
RS232
Serial connection
DL11 red LED – Failure
DL20 Red LED
Failure Warning
DL21
Green LED
Communicating
USB
connection
