P.B.M. BLT160 - COMMISSIONING AND START UP

"BLT 160” ユーザーマニュアル/ / USER MANUAL 改訂版. n° 5 - 19/07/2011
P.B.M. S.r.l via Barella, Z.I. - VIGNOLA ( MO ) ITALIA
Tel. + 39 059 770 53 11 - Fax + 39 059 770 53 00
http://www.gruppopbm.it e-mail: pbm@gruppopbm.itファイル: MU001033GJ_BLT160_GB_JAP rev5_190711.doc
P. 5

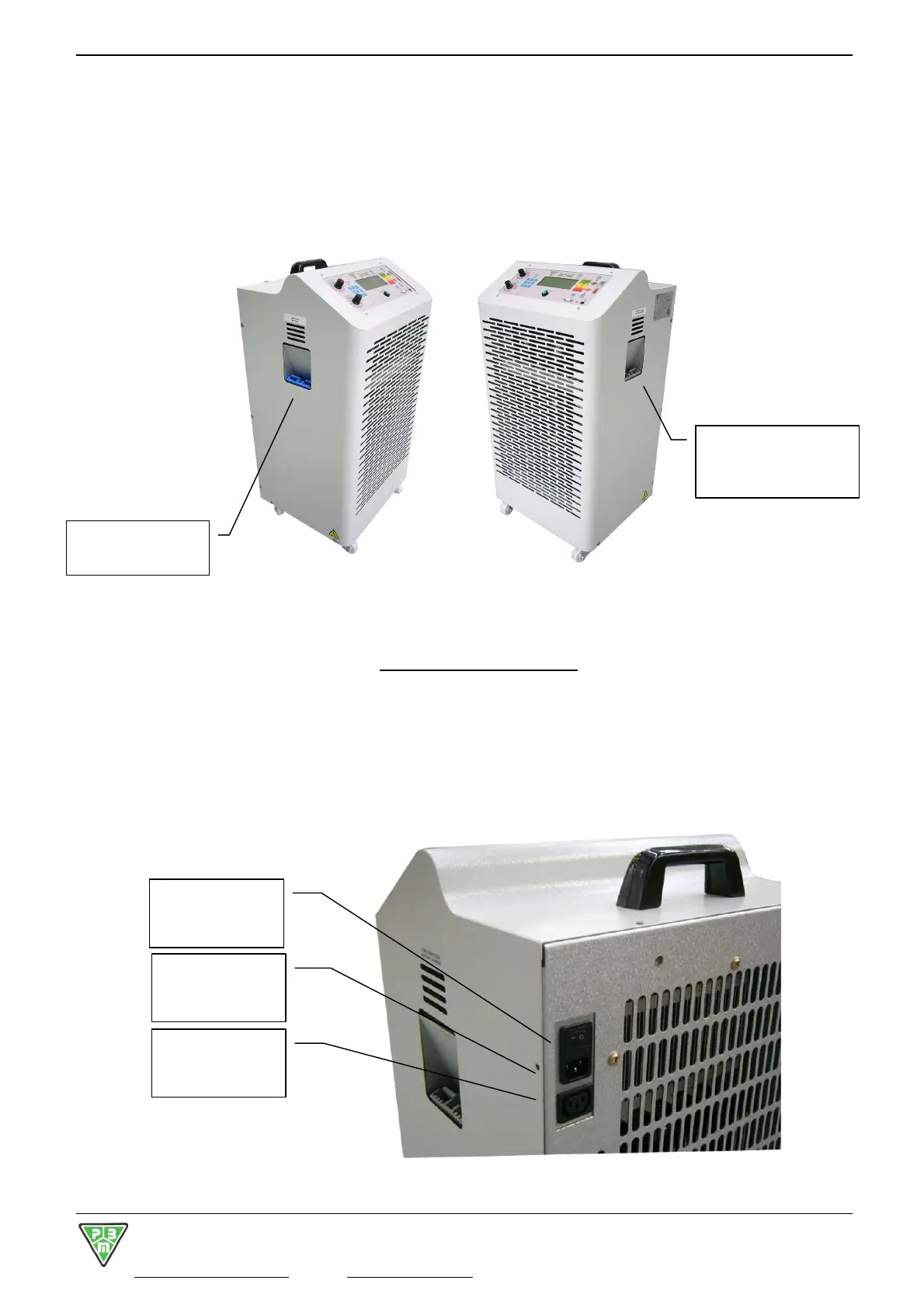

Main
switch
Mains
connection
Optional
connection
C) COMMISSIONING AND START UP
During installation, or after changing installation site, it is advisable to check the actual AC input voltage.
If it is too high or too low compared to the rated values, problems due to drops or increases in the charging
current might arise.
The BLT160 discharger is usually pre-set for a mains voltage range of 100 to 240V AC, 50/60 Hz
Make sure also to earth the discharger properly.
CONNECTION SEQUENCE
1. Connect the power cord to mains.
2. Connect the battery to the socket, on the left side, through the connector supplied. Pay attention to the
polarity. For this connection use a cable section of minimum 50 square millimetre and a length
between 4 and 5 meters. Do not use reductions and/or extensions. (Cables with an higher length could
cause faults reading data).
3. Connect the battery charger – if any - to the right-sided socket of the discharger by means of cables on
issue. Pay particular attention to the polarities to match correctly.
4. Move the main switch on the rear side to POSITION 1.
BATTERY
CONNECTOR
BATTERY
CHARGER
CONNECTOR
