4.4

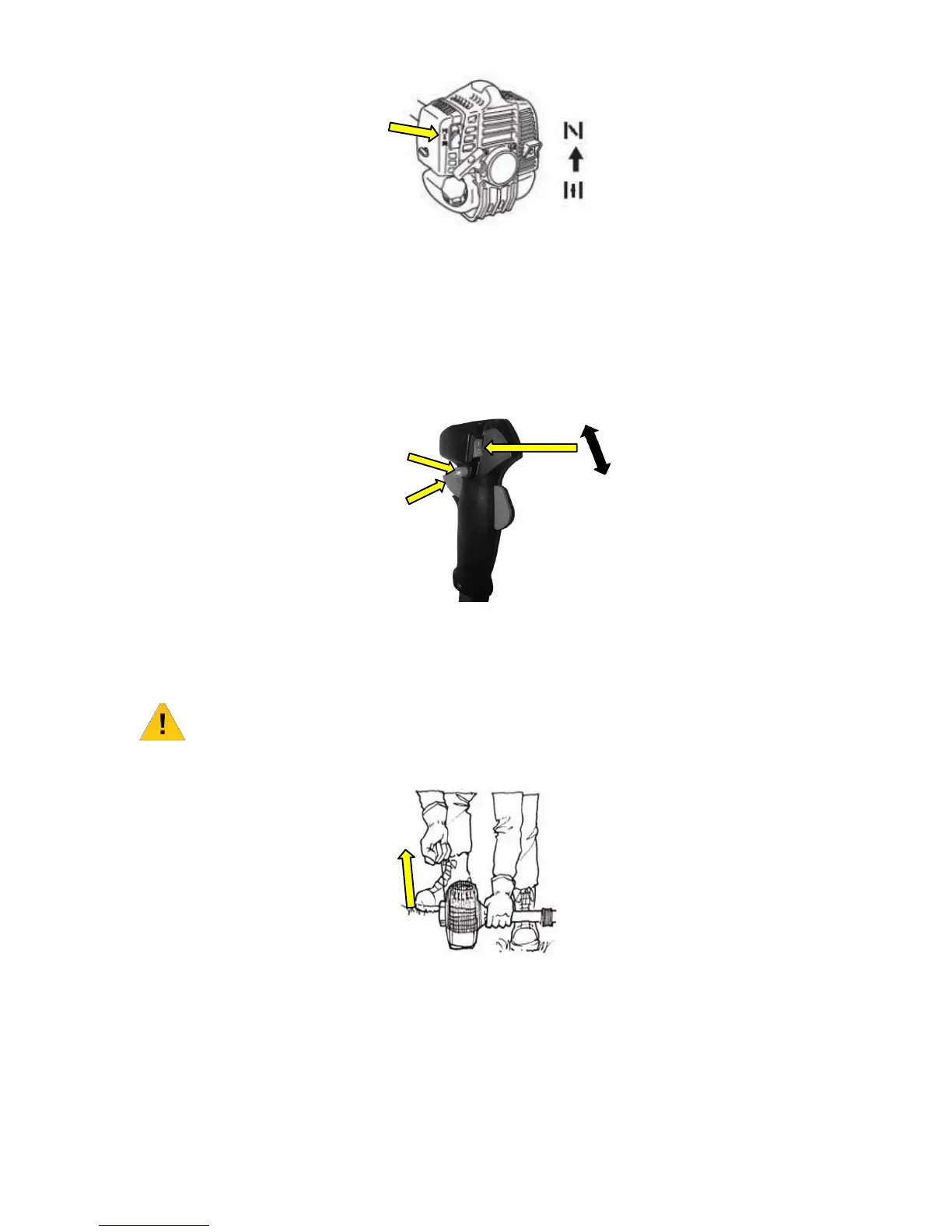

Move the choke lever (1) to the closed position.
(1)
(2)
(3)
(1)
Choke Lever (2) Close (3)
Open
4.5
Move the stop switch to the Run/Start position.
Set the throttle trigger to the start position by pulling the throttle lever back and push.
Place the unit on flat level ground.
Keep the cutting head clear of everything around it.
(A)
(C)
(B)
(D)
(A) Run / Start (B) Stop (C) Start Lever (D) Throttle Lever
4.6
While holding the unit firmly, pull the starter rope gently until you feel resistance, then
pull swiftly until the engine tries to fire.
NOTE This machine is fitted with an easy recoil start assembly which allows it
to be started with less force and a more gentle pulling action.
