20
Part No. Description Qty
T3-407 Cylinder rod O-ring (14208-008) 2
*
T10-319 Speed adjustment knob O-ring 1
*
T10-320 Plug O-ring 1
*
T40-010 Valve seals 2
*
T40-037 O-ring 1
*
T40-045 Compression spring 1
*
T40-047 Compression spring long assembly 2
T70-105 Threaded mounting insert (8mm) 6
T70-153 Bearing retainer (5mm) 2
T70-154 Ball bearing (5mm) 56
*
T70-215 Cup seal (front & rear) 2
T70-216 Spanner nut (front & rear) 2
T70-217 Snap ring 2
*
T70-220 Piston urethane washer 2
T70-253 Rear spring guide 1
T70-254 Front spring guide 1
*
T70-257 Front cylinder urethane washer 1
*
T70-259 Rear cylinder urethane washer 1
T70-302 Speed adjustment rod 1
T70-303 Speed adjustment knob 1
*
T70-306 Speed adjustment valve O-ring, small (
*
14208-011) 1
T70-310 Knob locking nut 1
T70-311 Speed adjustment valve lock screw 1
T70-320 Washer 1
T70-321 Rear threaded bushing 1
T70-322 Silencer 1
T70-403 Rear retaining plate 1
T70-404 Front retaining plate 1
T70-406 Front threaded bushing 1
T70-407 Shock absorber 1
T70-408 Shock absorber locking nut 1
T70-410 Holder screw 8
T70-411 Retaining plate screw 12
T70-413 Shock absorber plug 1
T70-433 Rear holder 1
T70-434 Front holder 1
T70-436 Screw 8
T70-601 Rear piston assembly 1
T70-602 Front piston assembly 1
*
T70-603 Valve Rod assembly 1
T70-604 Valve assembly 1
T70-605 Ball guide assembly 1
*
Included in Repair Kit 70-001 (17272)
21
T70-216
T70-434
T70-410
T70-220
T70-602
T70-411
T70-404
*T70-215
*T40-047
T70-153
T70-154
T70-257
T40-010
T70-605
T70-105
*T40-010
T70-259
T70-217
*T70-215
T70-601
T70-253
T70-403
*T40-047
T70-436
T70-433
T70-216
T70-408
T70-320
T70-406
T70-407
T70-217
T70-254
T70-413
T10-320
*T40-045
*T70-603
*T3-407
*T70-306
T70-311
T40-037
T70-604
T70-322
T70-302
T70-321
*T10-319
T70-303
T70-310
*Included in Repair Kit 70-001 (17272)

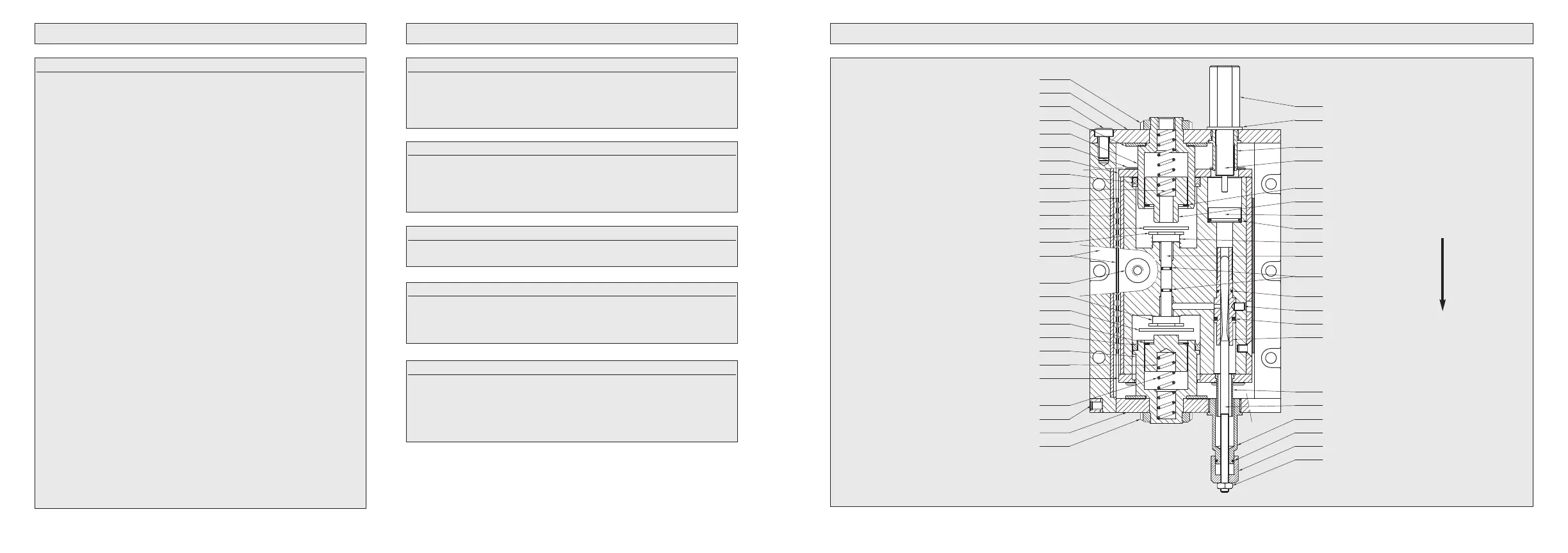

TP-70 Parts Description TP-70 PARTS DRAWING
T70-601 Rear Piston Assembly Qty
T40-047 Spring, long 1
T70-211 Rear piston 1
T70-215 Cup seal 1
T70-217 Snap ring 1
T70-253 Rear spring guide 1
T70-602 Front Piston Assembly Qty
T40-047 Spring, long 1
T70-212 Front piston 1
T70-215 Cup seal 1
T70-217 Snap ring 1
T70-254 Front spring guide 1
T70-605 Ball Guide Assembly Qty
T70-153 Ball retainer (5mm) 1
T70-154 Ball (5mm) 28
T70-426 Ball guide 1
T70-428 Screw 7
T70-435 Guide column 1
T70-437 Ball guide 1
T70-603 Valve Rod Assembly Qty
T3-407 O-ring 2
T70-251 Valve rod 1
T70-604 Valve Assembly Qty
T40-037 O-ring 1
T70-302 Valve rod 1
T70-306 O-ring 1
T70-308 Valve 1
TP-70 Assemblies
Feed
Direction
