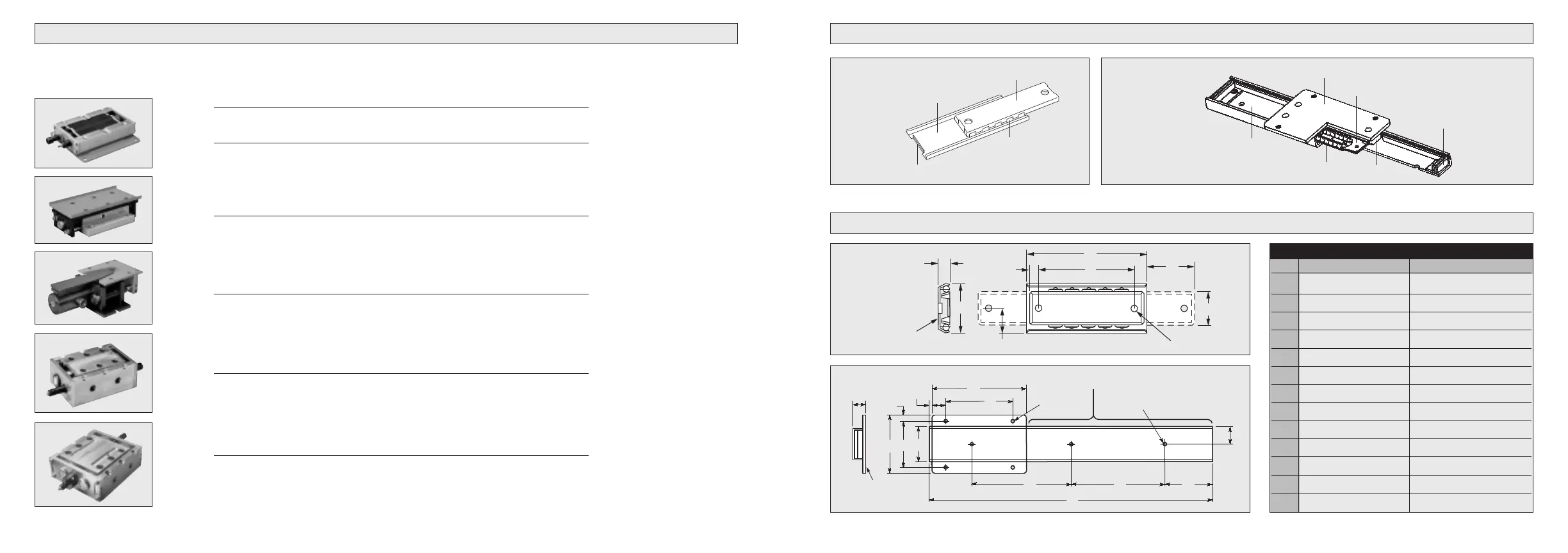

TECHNICAL DATA
Roller Slide Tray Support Options
Roller Slide Dimensions
Rate Trans- Max.
Air of Sound portation weight
Model Consumption Feed Level Weight capacity Tray
TP-3
8.8 cfm 29-33 fpm 56 dB (A) 3 lbs 6.4 lbs 3.2 lbs
5 L/min 8–10 m/min 56 dB (A) 1,4 kg 3 kg 1,5 kg
TP-10
19.4 cfm 29-33 fpm 60 dB (A) 6 lbs 21.4 lbs 6.4 lbs
11 L/min 8–10 m/min 60 dB (A) 2,8 kg 10 kg 3 kgs
TP-40
55 cfm 29-33 fpm 70 dB (A) 15 lbs 85.6 lbs 32 lbs
31 L/min 8–10 m/min 70 dB (A) 7,2 kg 40 kg 15 kg
TP-70
78 cfm 29-33 fpm 68 dB (A) 12 lbs 150 lbs 107 lbs
44 L/min 8–10 m/min 68 dB (A) 5,5 kg 70 kg 50 kg
TP-140
74 cfm 29-33 fpm 62 dB (A) 17 lbs 300 lbs 214 lbs
42 L/min 8–10 m/min 62 dB (A) 8 kg 140 kg 100 kg
SEAL
Mounting Plate
Ball Bearings
Slide Rail
Guide Plate
Stopper
Ball Bearings
Slide Rail
Model RS-1
#17918
Model RS-2
#17432-01
Stopper
Mounting Plate
METRIC - mm USA - inches
A
A
B
B
C
C
M4 THRU
Note: Cut slide rail to desired length.
D
D
E
E
F
G
1
/
2
K
H
H
J
J
Tray
Mounting
Surface
Tray Mounting
Surface
Bottom View
Model RS-1
#17918
Model RS-2 #17432-01
K
K
L
N
M
M
N
RS-1 RS-2 RS-1 RS-2
A 105 100 4.20 3.94
B 6.8 15 .27 0.59
C 86 70 3.38 2.76
D 35 60 1.375 2.36
E 35 5 .68 0.20
F– 50 – 1.97
G– 50 – 1.97
H–100 – 3.94
J 9.5 16.2 .375 0.64
K 24 37 .93 1.46
L–300 – 11.8
M 32 Max 2.3 1.25 Max 0.09
N 4.5 4.6 x 5.3 .175 0.18 x 0.21
Air consumption is
measured at a pace of
120 strokes per minute
and an air pressure of
4 bars (60psi).
Air Pressure is 60-80
psi (4-5,5 bar).
Length of Stroke is 1 in.
(23 mm).
Rate of Feed is 29-33
fpm (8-10 m/min).
Max. incline of Feed
Tray is 8°.
