PA TP-3 - TP-10 Parts Drawing

24
Part No. Description Qty
T3-407 Cylinder rod O-Ring (14208-008) 2
*
T10-319 Speed adjustment knob O-Ring 1
*
T10-320 Plug O-ring 2
*
T40-010 Valve seals 2
*
T40-045 Compression spring 2
*
T40-047 Valve spring 2
T70-153 Bearing retainer (5mm) 2
*
T70-215 Cup seal (front & rear) 4
T70-216 Spanner nut (front & rear) 4
T70-217 Snap ring 2
*
T70-220 Piston urethane washer 4
T70-253 Rear spring guide 1
T70-254 Front spring guide 1
T70-303 Speed adjustment knob 1
T70-310 Knob locking nut 1
T70-320 Washer 2
T70-406 Front threaded bushing 2
T70-407 Shock absorber 2
T70-408 Shock absorber locking nut 2
T70-411 Retaining plate screw 8
T70-413 Shock absorber plug 2
T70-436 Screw 8
T70-601 Front piston assembly 1
T70-602 Rear piston assembly 1
*
T70-603 Valve rod assembly 1
T70-605 Ball guide assembly 1
T140-105 Threaded mounting insert (8mm) 6
T140-211 Front piston 1
T140-212 Rear piston 1
T140-302 Speed adjustment Rod 1
T140-308 Speed adjustment valve 1
T140-326 Sleeve 1
T140-401 Rear holder 1
T140-402 Front holder 1
T140-404 Front retaining plate 1
T140-601 Front piston assembly 1
T140-602 Rear piston assembly 1
T140-603 Silencer assembly 1
*
Included in Repair Kit 140-001 (18914)
25
T140-402
T140-410
*T70-220
T70-602
T140-404
T70-411
*T70-215
T40-047
T70-153
T70-154
*T70-257
T40-010
*T70-603
*T3-407 (*14208-008)
T70-605
*T40-010
T70-259
T70-217
T70-215
T70-601
T70-253
T140-112
*T40-047
T70-436
T140-401
T70-216
T70-408
T70-407
T70-320
T70-406
T140-212
T70-220
T70-254
T70-413
*T10-320
T140-105
*T40-045
T140-308
T140-326
T140-211
T140-302
T70-220
T140-603
*T10-319
T70-303
T70-310
*Included in Repair Kit 140-001 (18914)
TP-140 Parts Description
T140-601 Rear Piston Assembly Qty
T140-211 Rear piston 1
T70-215 Cup seal 1
T140-602 Front Piston Assembly Qty
T140-212 Front piston 1
T70-215 Cup seal 1
T140-603 Silencer Assembly Qty
T140-324 Damp bushing 1
T140-502 Lock 1
T140-503 Silencer 1
T140-504 Felt 1
T40-045 Spring 1
T70-601 Front Piston Assembly Qty
T40-047 Spring, long 1
T70-211 Front piston 1
T70-215 Cup seal 1
T70-217 Snap ring 1
T70-253 Spring guide 1
T70-602 Rear Piston Assembly Qty
T40-047 Spring, long 1
T70-212 Rear piston 1
T70-215 Cup seal 1
T70-217 Snap ring 1
T70-254 Spring guide 1
T70-605 Ball Guide Assembly Qty
T70-153 Ball retainer (5mm) 1
T70-154 Ball (5mm) 28
T70-426 Ball guide 1
T70-428 Screw 7
T70-435 Guide column 1
T70-437 Ball guide 1
T70-603 Valve Rod Assembly Qty
T3-407 O-ring 2
T70-251 Valve rod 1

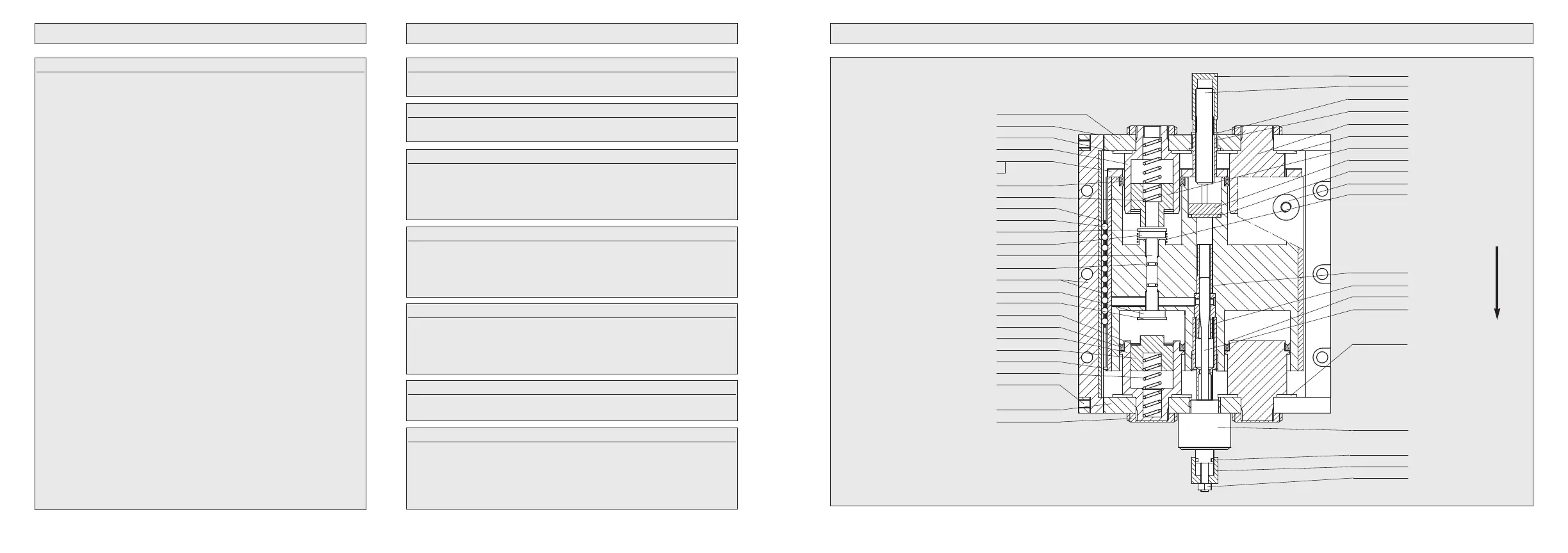

TP-140 Assemblies TP-140 PARTS DRAWING
Feed
Direction
