PA TP-3 - Page 5

8
Part No. Description Qty
T3-105 Screw 8
T3-107 Air inlet 1
T3-110 Mounting plate 1
T3-111 Mounting plate screw 4
T3-112 Spring pin 4
T3-201 Guide holder (L&R) 2
T3-203 Front guide holder 1
T3-204 Rear guide holder 1
T3-210 Sleeve retainer 2
T3-211 Stainless Steel Ball 12
T3-302 Front piston 1
T3-303 Rear piston 1
*
T3-307 Grease O-ring 1
T3-308 Grease ring 1
*
T3-311 Valve seal 2
*
T3-322 Rear cup seal 1
*
T3-323 Front cup seal 1
*
T3-327 Bumper ring 2
T3-401 Speed adjustment knob 1
T3-402 Speed adjustment rod 1
T3-404 Threaded bushing 1
T3-405 Plug 1
T3-406 Locking screw 1
*
T3-407 Speed valve O-ring 2
T3-309 Knob locking nut 1
*
T3-412 Speed valve O-ring 1
T3-601 Valverod assembly 1
T3-602 Spring assembly 2
T3-603 Valve assembly 1
*
T3-701 Assembly tool 2
T10-209 Snap ring 2
T10-313 Spring 1
*
T70-306 Knob O-ring (
*
14208-011) 1
*
Included in Repair Kit 3-001 (17269)
9

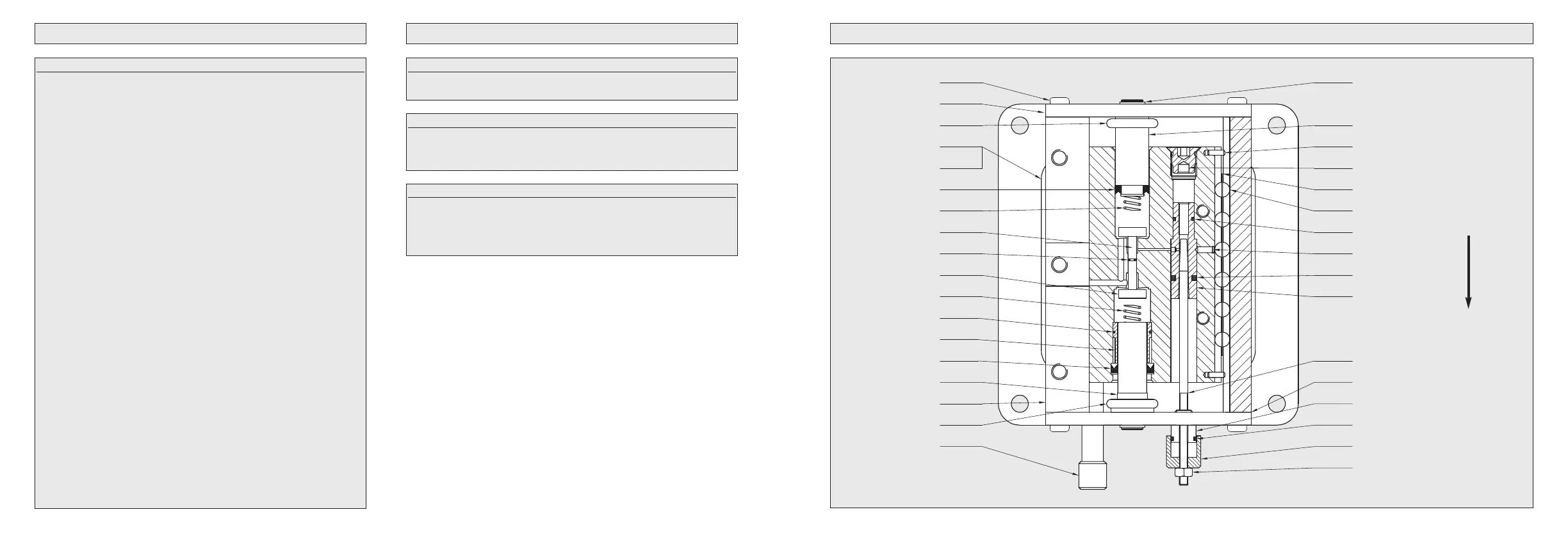

TP-3 Parts Description TP-3 PARTS DRAWING
T3-601 Valve Rod Assembly Qty
T3-310 Valve rod 1
T3-325 O-ring 1
T3-602 Spring Assembly Qty
T3-315 Spring holder 1
T3-407 O-ring 1
T10-313 Spring 1
T3-603 Valve Assembly Qty
T3-402 Speed adjustment knob 1
T3-407 O-ring 1
T3-411 Valve 1
T3-412 O-ring 1
TP-3 Assemblies
T3-105
T3-203
*T3-327
T3-110
T3-111
T3-323
*T3-602
T3-601
T3-325
*T3-311
*T3-602
*T3-307
T3-308
*T3-322
T3-303
T3-201
*T3-327
T3-107
T10-209
T3-302
T3-112
T3-405
T3-210
T3-211
*T3-407
T3-406
*T3-412
T3-603
T3-402
T3-204
T3-404
*T70-306 (*14208-011)
T3-401
T3-309
* Included in Repair Kit 3-001 (17269)
Feed
Direction
