Part No. Description Qty
*
T10-106 Guide column sleeve 4
T10-201 Rear holder 1
T10-202 Front holder 1
T10-203 Threaded guide column 2
T10-204 Tray holder set (L & R) 2
T10-209 Snap ring 2
T10-210 Tray holder screw 4
*
T10-212 Urethane washer 4
T10-213 Guide column spacer 2
T10-214 Guide column locking nut 4
T10-302 Piston 1
T10-303 Rear piston 2
T10-305 Nut, piston 1
T10-311 Valve disk 2
T10-313 Spring, long 1
T10-314 Spring, short 1
*
T10-316 Gasket 1
T10-318 Valve O-ring (14208-107) 1
*
T10-319 Rear piston O-ring 2
T10-320 Plug O-ring 2
T10-324 Extension 1
T10-325 Spring retaining screw 1
T10-413 Felt 1
T10-414 Snap ring 1
T10-601 Air inlet 1
T10-602 Valve rod assembly 1
*
T10-603 Air regulator assembly 1
*
T10-604 Air regulator rod & nut 1
T10-605 Speed adjustment screw 1
*
T10-606 Piston assembly 1
*
T40-035 O-Ring (
*
14208-119) 1
*
Included in Repair Kit 10-001 (17270)
13
T10-214
T10-202
*T10-213
T10-212
T10-414
T10-413
T10-605
T10-203
T10-106
*T10-319
T10-303
*T10-212
T10-201
T10-209
T10-210
T10-204
T10-305
*T10-316
T10-325
*T10-602
T10-313
T10-324
T10-320
T10-302
T10-314
T10-311
T10-318 (14208-107)
*T10-603
T10-602
T10-311
*T40-035(*14208-119)
T10-601

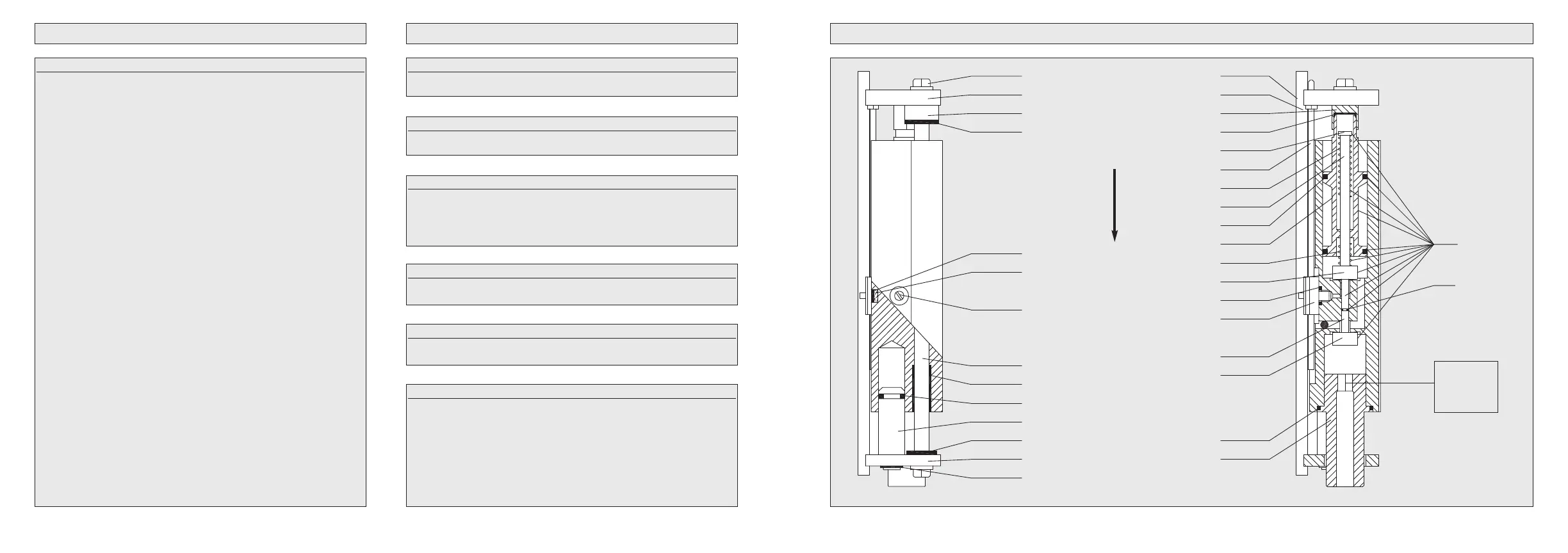

TP-10 Parts Description TP-10 PARTS DRAWING
T10-601 Air Inlet Assembly Qty
T10-102 Air inlet 1
T40-035 O-ring 1
T10-602 Valve Rod Assembly Qty
T3-325 O-ring 1
T10-310 Valve rod 1
T10-603 Air Regulator Assembly Qty
T10-318 O-ring 1
T10-401 Air regulator 1
T10-403 Urethane washer 1
T10-404 Washer 1
T10-408 Screw 2
T10-604 Air Regulator Rod & Nut Qty
T10-321 Nut 1
T10-402 Air regulator rod 1
T10-605 Speed Adjustment Screw Qty
T10-405 Speed adjustment screw 1
T10-407 O-ring 1
T10-606 Piston Assembly Qty
T3-325 O-ring 1
T10-302 Piston 1
T10-310 Valve rod 1
T10-311 Disc 2
T10-313 Spring 1
T10-314 Spring 1
T10-320 O-ring 2
T10-324 Extension 1
T10-325 Screw 1
T10-327 Gasket, disc 2
TP-10 Assemblies
Use 8 mm
Hex
Wrench
*T10-606
T3-325
*Included in Repair Kit 10-001 (17270)
Feed
Direction
To Next Page
