1. Twist the dipstick handle to unlock
it, then pull the dipstick out of the
holder.
2. Wipe the dipstick clean with a lint-
free cloth.
3. Reinsert the dipstick into the
holder.
4. Remove the dipstick from the
holder and check the oil level. The
oil level should always be between
the two marks on the dipstick.
5. Reinstall the dipstick and twist to
lock it in place.

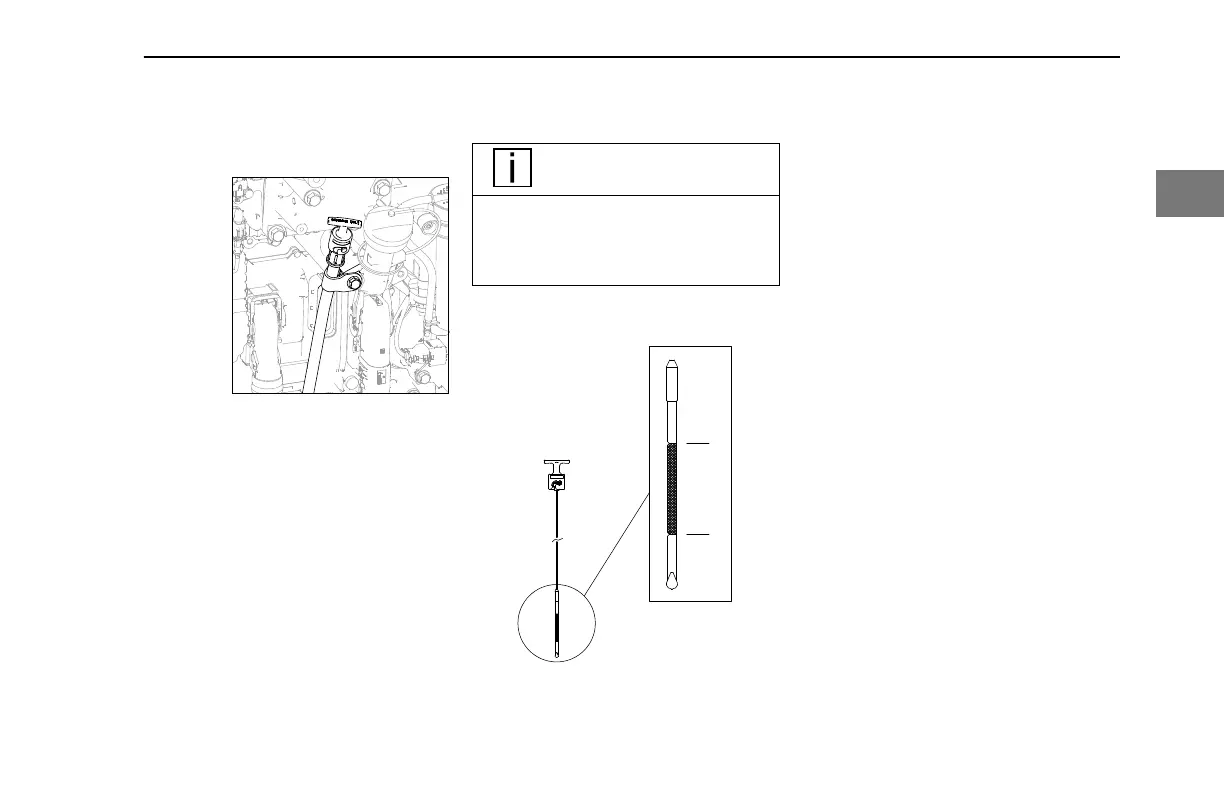

Oil Level Indication on Dipstick
NOTE
On the engine oil dipstick, the differ-
ence between the low oil level mark
(2) and high oil level mark (1) is 9.5
US quarts (9 liters).
Engine Oil Dip Stick Markings
1. High oil level (1)
2. Low oil level (2)
Topping Up the Engine Oil
If checking the engine oil just after stopping
the engine, wait 15 minutes for the oil to
drain back into the oil pan before checking
the fluid level.
This procedure should be followed when oil
level is low and more oil needs to be
added.
1. Top up with oil, if necessary, via the
filler opening. Use the correct
grade in the correct quantity.
2. After topping up, wait one minute
and check the oil level again.
ENGINE MAINTENANCE - Maintenance Procedures
Y53-1166-1M1 (10/2020) 67
