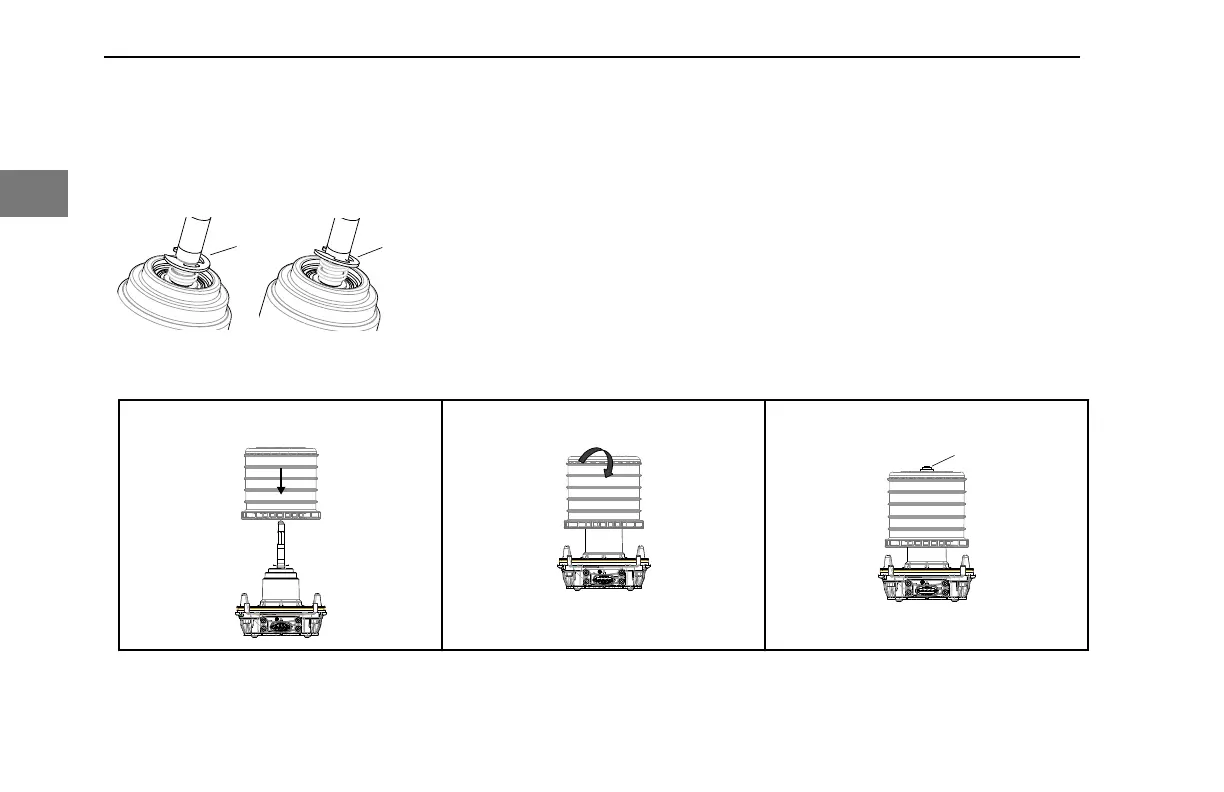

DO NOT remove the retaining ring e-clip
from the shaft. The e-clip (1) being slanted
is OK (2).
OCV Retainer Ring Installation
4. Remove the gasket from the motor
as well as the gasket from the
housing, and wipe the two gasket
grooves with a clean, lint-free rag.
5. Properly dispose of the filter and
gaskets.
How to Reassemble a OCV Unit
Follow the steps below to reassemble the
OCV after the old filter and gaskets have
been removed.
OCV Motor/Filter Assembly
Fit onto Shaft Turn to Slide Ensure Shaft Protrudes
1. Install the new O-ring gasket on the
motor and the new face gasket on
the OCV-to-engine interface of the
OCV housing. Lubricate the two
gaskets with clean engine oil.
2. Orient the motor so that the shaft is
facing upward.
