Oil Filter Installation
Use the following procedure to install oil
filters.

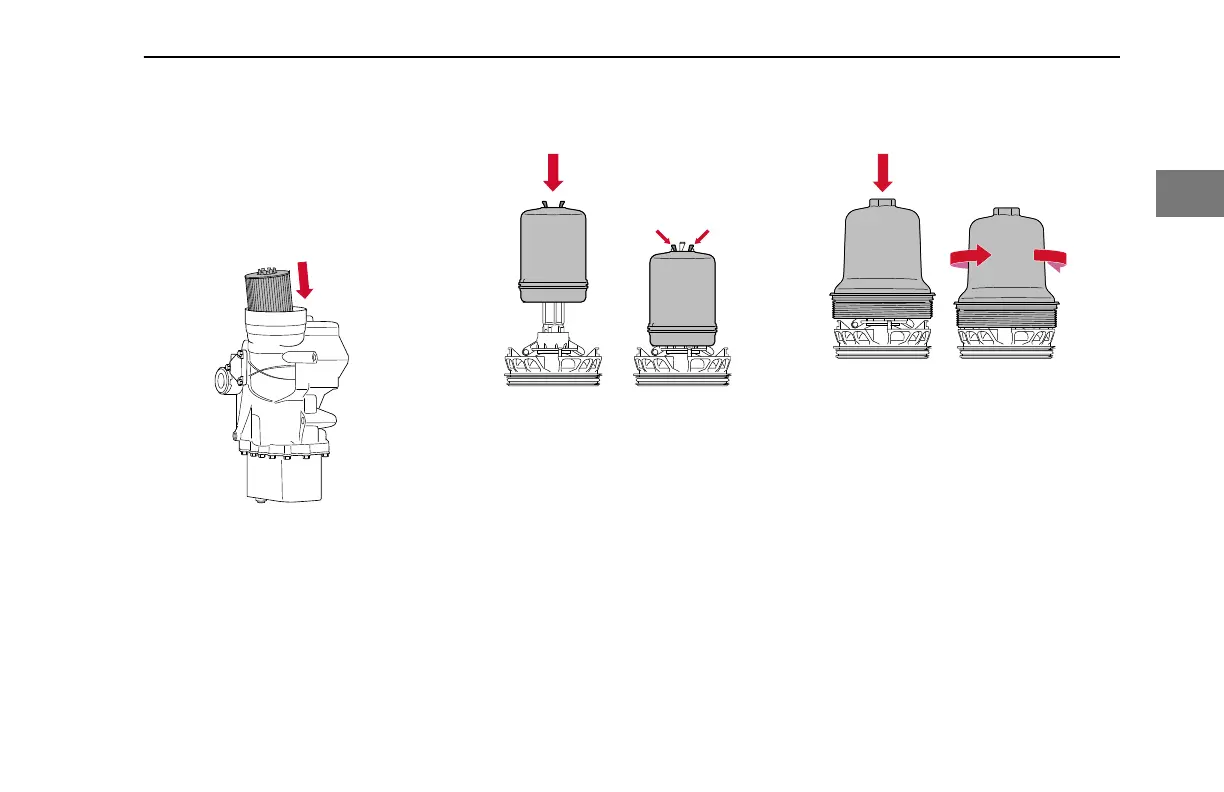

1. Install the new full-flow oil filter
element into the oil module.
Installing Full-flow Oil Filter
2. Lightly lubricate the new O-ring for
the lower cap with clean engine oil.
3. Install the new O-ring onto the
lower cap.
4. Tighten the lower cap 1/4 turn to
lock the full-flow oil filter in place.
5. Install the new centrifugal oil filter
element onto the centrifuge base.
Installing Centrifugal Oil Filter into Base
6. Mount the screw cap on the
centrifuge base.
7. Turn the screw cap
counterclockwise to lock it.
Installing and Locking Cap
8. Lightly lubricate the new O-rings
(1) with clean engine oil.
ENGINE MAINTENANCE - Maintenance Procedures
Y53-1183-1G1 (05/19) 57
