- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ▲ INSTRUCTION MANUAL
MEGA-T300 Abrasive Cutter
3601 E. 34th St. Tucson, AZ 85713 USA Tel. +1 520-882-6598 Fax +1 520-882-6599 email: pace@metallographic.com Web: http://www.metallographic.com
Please read this instruction manual carefully and follow all installation, operating and safety guidelines.

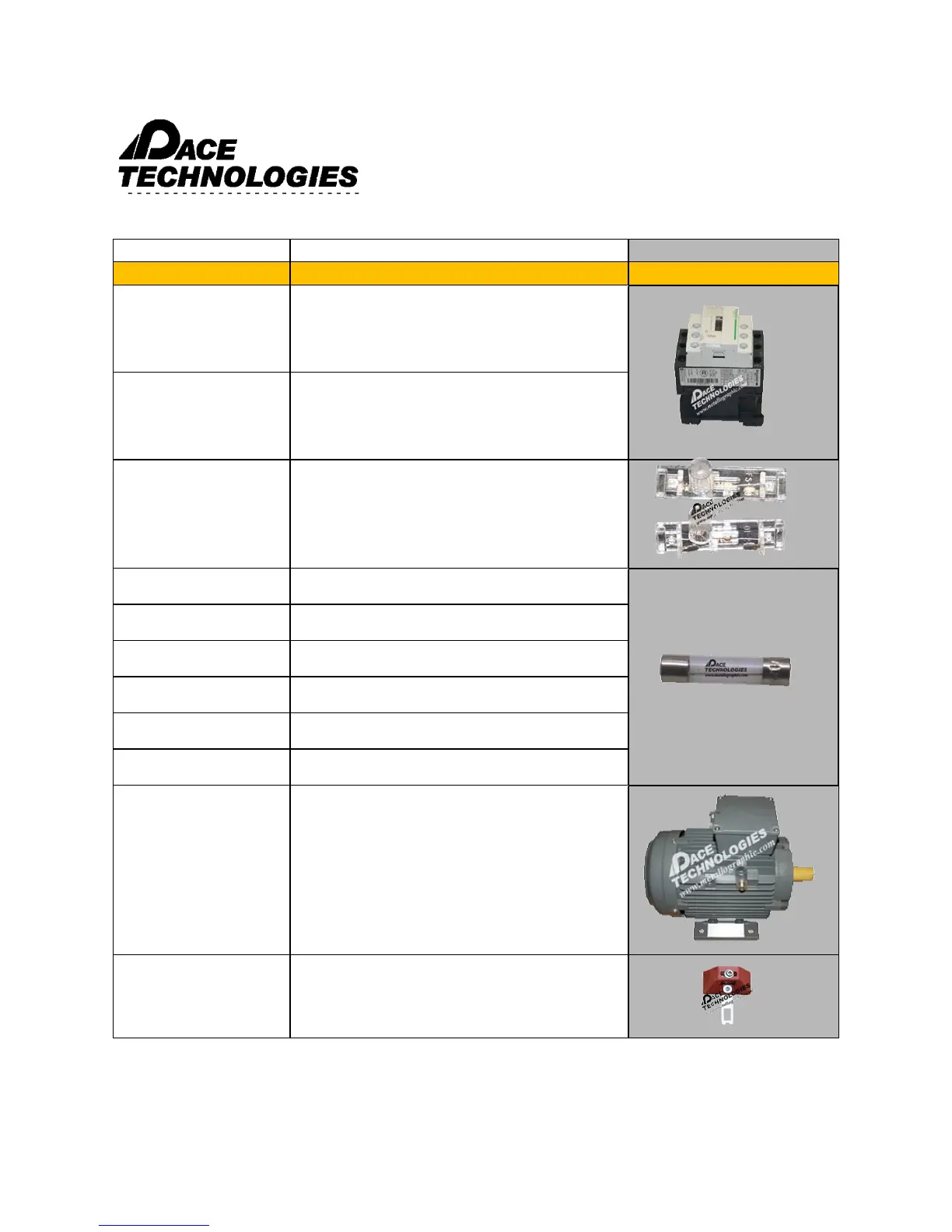

Part no. Descripon Images
Electrical
LC1D18B7C
KM1, KM3 AC contactor (MEGA-T300)
(Schneider LC1D12B7C)
LC1D18B7C
KM2 AC contactor (MEGA-T300) (Schneider
LC1D09B7C)
M3-F-H
Fuse Holder (each)
M3-F1
MEGA-T300 F1 fuse (2A)
M3-F2
MEGA-T300 F1 fuse (2A)
M3-F3
MEGA-T300 F1 fuse (20A)
M3-F4
MEGA-T300 F1 fuse (20A)
M3-F5
MEGA-T300 F1 fuse (2A)
M3-F6
MEGA-T300 F1 fuse (2A)
M3-MOTOR
MEGA-T300 Motor (4 KW)
M2-SAFE-T
MEGA M250 Safety lock out switch (top
piece)
20
