NANO 2000T Polisher
Electrical connection
110V or 220V
2.3 Installation
!
Install unit carefully! Improper installation voids warranty.
The NANO 2000T should be placed on a flat stable surface.
Connect to air, water supply, drain and electrical connections.
After water, drain and electrical connections are completed, the system is ready for
operation by activating the main power switch.
5

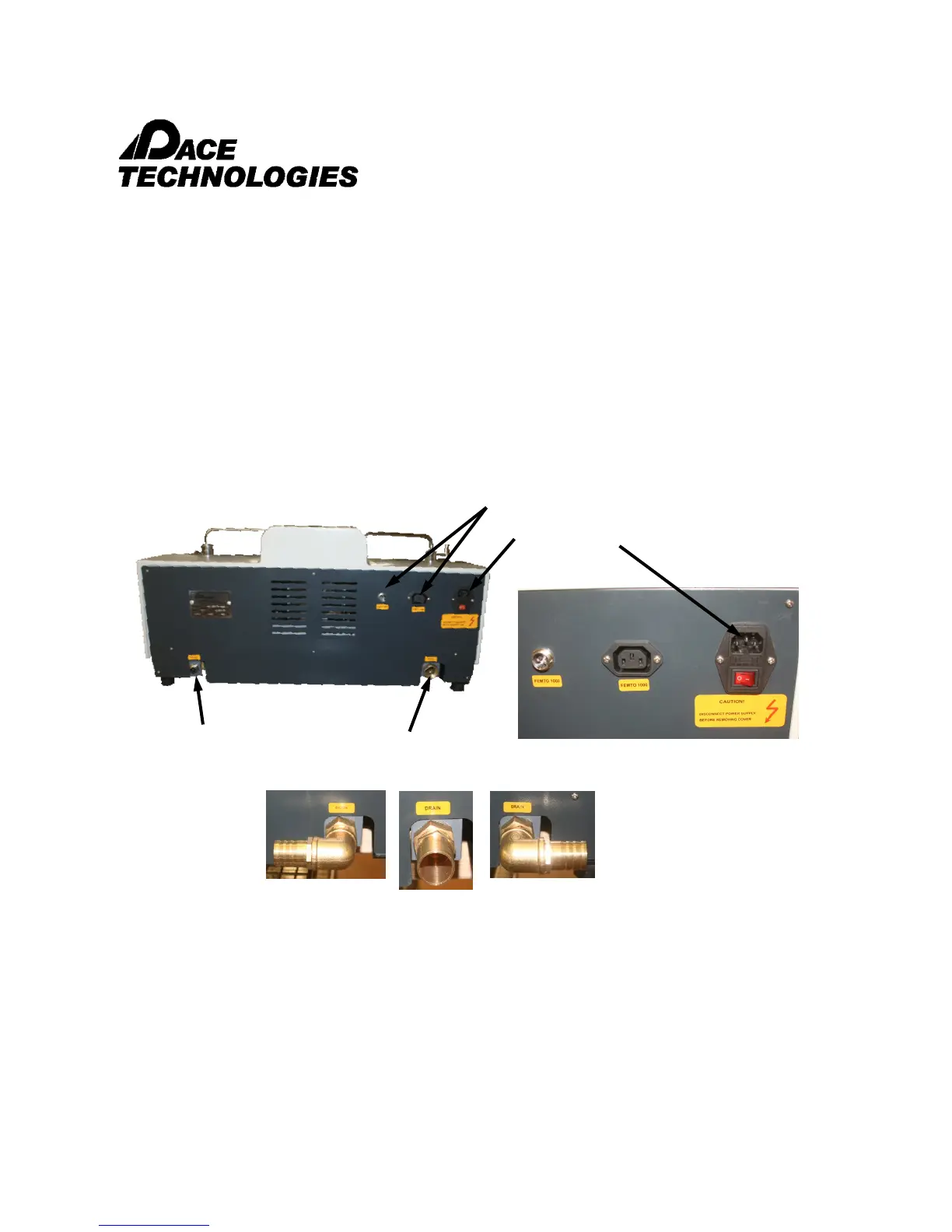

Backside connections
External water supply: The water supply line requires a 1/4-inch compression fitting. It is
recommended that the water supply be turned off when the unit is
not in use. Inlet water should be clean and contamination-free to
extend the life and performance of the systems.
Electrical connection: Connect six-foot electrical power cable to source.
Drain connection: Connect drain so that it exits the machine in the direction best
suited to the drain site
Water drain
External water
supply
FEMTO connections
Connect drain for best
direction to drain with
fittings
